Product Description

Overview

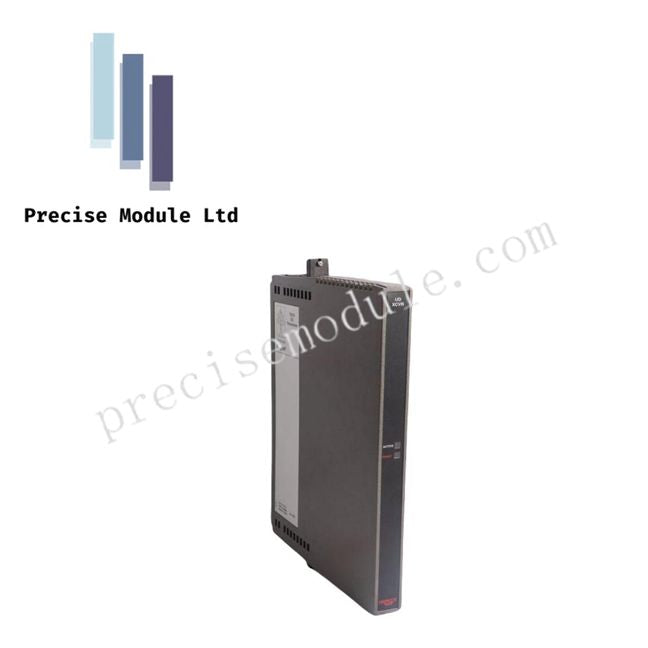

The ICS Triplex T3310 is a high-reliability Digital Input Module designed for the TRIPLEX safety system family. Engineered for use in Safety Instrumented Systems (SIS), this module delivers robust monitoring of digital signals in high-integrity industrial environments, including oil & gas, chemical processing, and power generation. Its design emphasizes fault tolerance, SIL 3 compliance, and high availability, making it suitable for critical applications that require continuous operation.

Functionality

The T3310 acts as the communication gateway between the Regent processor modules and the field I/O modules. Typically deployed in a triplicated configuration, it ensures that the system remains operational even if a single transceiver fails. It manages digital input signals across the Safetybus, guaranteeing accurate transmission of sensor readings to processors and commands to actuators.

Key Features

Triple Modular Redundancy (TMR)

• Fully supports triplicated system architecture, allowing any single module to fail without interrupting operation

Hot-Swappable Design

• Enables module replacement without powering down the system, maintaining continuous I/O processing

Safety Compliance

• TÜV certified, SIL 3 rated for emergency shutdown (ESD) and fire & gas (F&G) systems

Advanced Diagnostics

• Front-panel LEDs provide real-time status of module activity and fault conditions

• Continuous monitoring of communication across all three triplicated modules

Isolation and Protection

• Electrical isolation safeguards logic circuits from surges or field-side failures

Efficient Data Management

• Manages bidirectional data transfer and validates chassis addresses to prevent misdirected commands

Applications

• Emergency Shutdown (ESD) systems

• Fire & Gas (F&G) safety systems

• Critical digital signal monitoring in oil, gas, and chemical plants

• High-integrity industrial automation requiring continuous fault-tolerant operation

Technical Specifications

FAQ

Q: Can the T3310 module be replaced while the system is operational?
A: Yes, it is hot-swappable, allowing replacement without shutting down the system.

Q: What types of digital inputs does the module support?
A: Supports both dry contact and 24V DC voltage signals.

Q: How many modules are recommended per I/O chassis for redundancy?
A: Typically, three modules are deployed in a triplicated configuration for full fault tolerance.

Q: Is the T3310 suitable for SIL 3 safety applications?
A: Yes, it is TÜV certified and compliant with SIL 3 standards.
