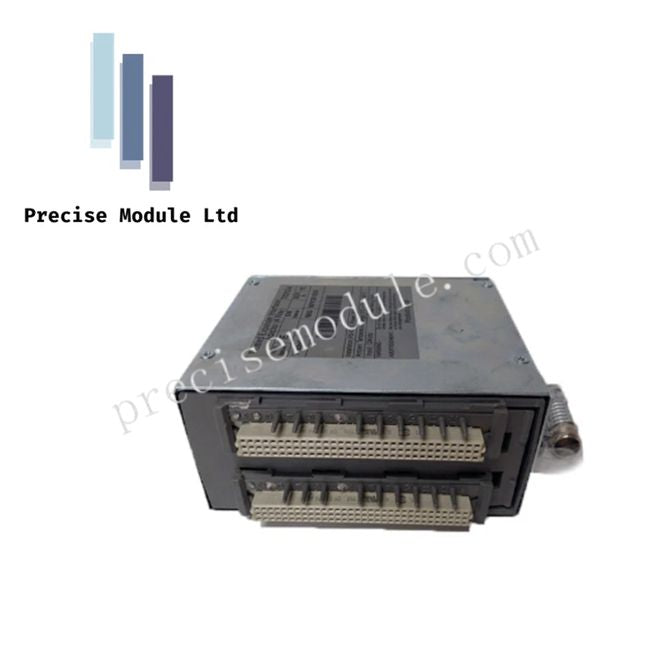

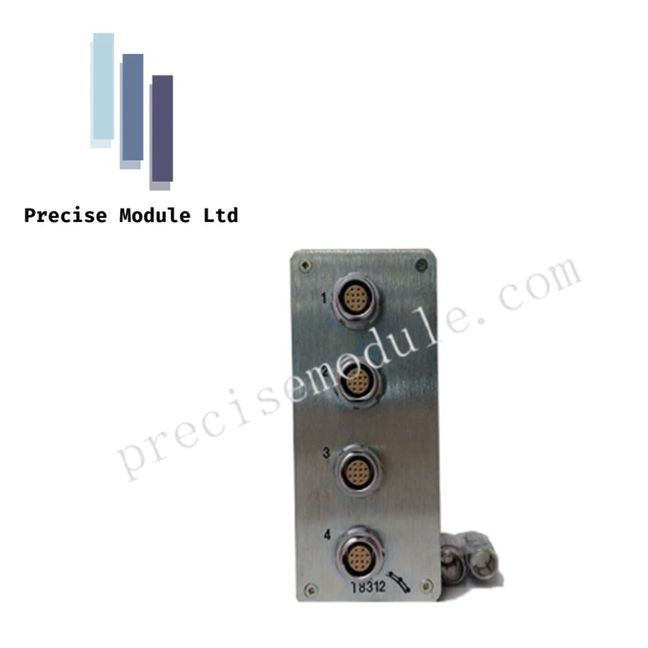

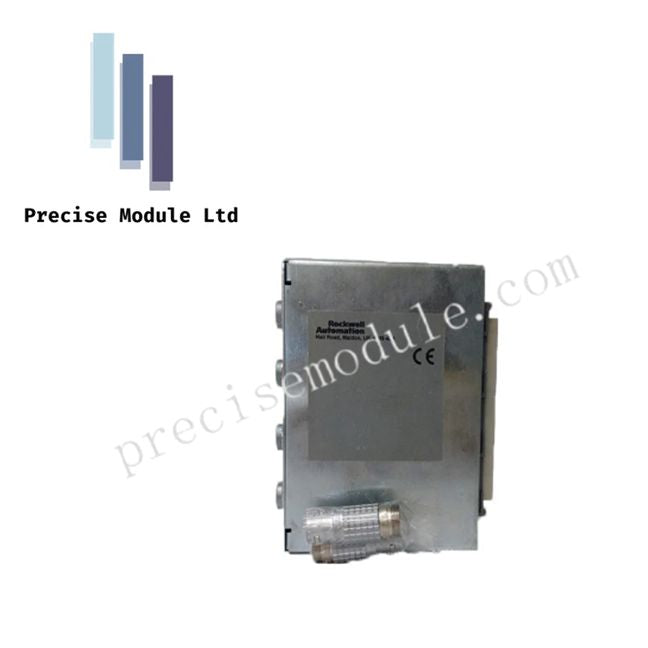

ICS Triplex T8312-4 Trusted™ TMR 24VDC Digital Output Module

ICS Triplex T8312-4 Trusted™ TMR 24VDC Digital Output Module

  • Manufacturer: ICS TRIPLEX

  • Product No.: T8312-4

  • Condition：in Stock

  • Product Type: Digital Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1000g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The ICS Triplex T8312-4 is a high-integrity Trusted™ Triple Modular Redundant (TMR) 24 VDC Digital Output Module designed for critical safety applications. It ensures reliable actuation of field devices such as solenoids, relays, and indicator systems in demanding industrial environments. Its TMR architecture provides fault-tolerant performance suitable for SIL 3 safety-rated systems.

Key Features

Triple Modular Redundancy (TMR)
Each output channel is backed by three independent circuits implementing a 2-out-of-3 voting mechanism. This prevents single-point failures from causing spurious trips or failing to actuate critical outputs.

Field Diagnostics and Monitoring
The module continuously monitors output channels for:

  • Open circuits to detect broken wiring

  • Short circuits to protect connected devices

  • Earth leakage to identify insulation failures

High Availability

  • Hot-swappable modules allow replacement without interrupting ongoing operations

  • Built-in self-tests, including threshold and stuck-switch testing, verify output integrity

Power and Output Specifications

  • Supports 40 isolated output channels

  • Capable of driving up to 2.0A per channel, depending on total load and thermal conditions

  • Designed for 24 VDC industrial loads

Technical Specifications

Parameter Specification
Safety Standard SIL 3 (IEC 61508)
Channels 40 Digital Outputs (Isolated)
Output Voltage 24 V DC
Output Current 2.0 A per channel (derated at high temperature/load)
Architecture Triple Modular Redundant (TMR)
Diagnostics Short circuit, Open circuit, Field voltage monitoring
Software Configuration Trusted™ toolset
Environmental Protection Conformal coated PCB for harsh conditions
Operating Temp -40°C to +70°C
Storage Temp -40°C to +85°C
Humidity 5%–95% non-condensing
Connectors 4 or 7 × 12-pin ODU, 96-way C-type backplane
Power Consumption 6 W
Communication Ethernet interface

Applications

  • Emergency Shutdown (ESD) valves and critical shutoff devices

  • Fire & Gas (F&G) systems, including alarms and suppression activation

  • High-integrity process control where false trips or failures are unacceptable

Comparison with Similar Models

  • T8312-4 vs T8312-3: The -4 version supports higher current per channel and improved diagnostic coverage

  • Compatible with Trusted™ Expander Interface Adapter Units (T8312 series) for extended output capacity

FAQ

Q: Can the module be replaced while the system is running?
A: Yes, the T8312-4 is hot-swappable and does not interrupt ongoing control signals.

Q: What is the maximum current per channel?
A: Each channel can drive up to 2.0A, depending on system load and temperature derating.

Q: Does it support Ethernet communication?
A: Yes, the module integrates with Trusted™ systems using standard Ethernet for monitoring and configuration.
