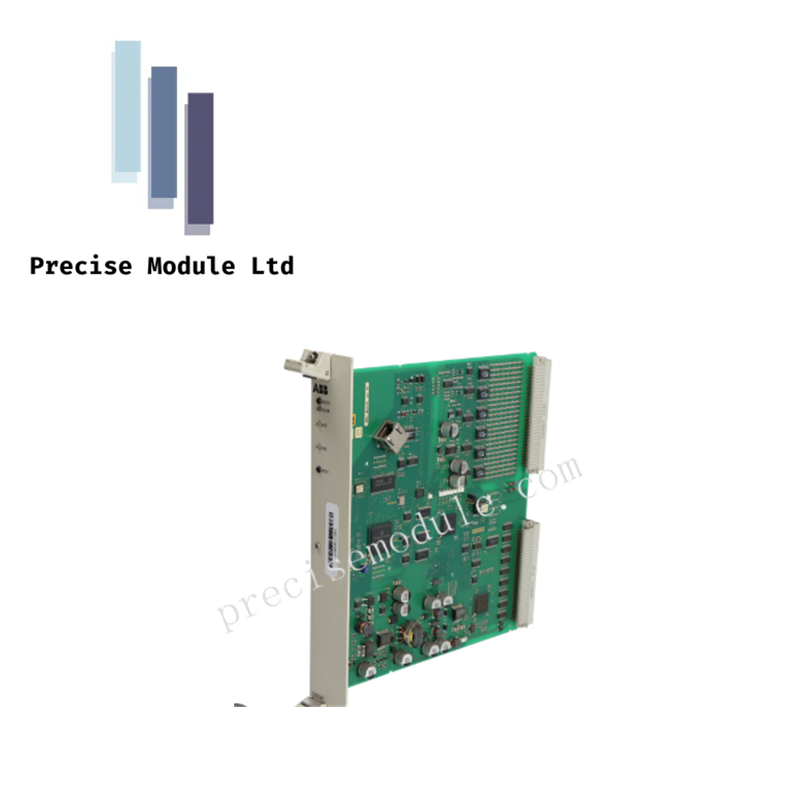

Input Transformer ABB 216GW62 HESG324008

Product Overview

The 216GW62 (Part Number HESG324008) is a specialized signal conditioning and galvanic isolation interface designed specifically for the ABB REG 216 numerical generator protection system. Its primary role is to serve as the physical and electrical buffer between high-energy field instrumentation—such as Current Transformers (CTs) and Potential Transformers (PTs)—and the sensitive electronic processing modules of the protection rack. By scaling primary secondary currents and voltages to logic-level signals, the 216GW62 ensures that the protection system receives accurate data for differential protection, overcurrent monitoring, and voltage regulation without risk of high-voltage transients damaging the control logic.

Technical Specifications

• Model Designation: 216GW62

• ABB Ordering Code: HESG324008

• Primary Function: Signal scaling, impedance matching, and electrical isolation

• Input Channels: Typically configured for 6 CT inputs and 1 PT input (variable by system design)

• Protection Class: IP30 (DIN standard protection against solid objects >12mm)

• Chassis Compatibility: Native integration with ABB REG 216 series protection racks

• Physical Footprint: 280 mm x 180 mm x 81 mm

• Net Weight: 2.0 kg

• Construction: Robust metal/polymer housing designed for high-EMI substation environments

• Signal Integrity: Low-insertion loss transformers with high linearity for precise measurement

Protection Logic and System Safety

The 216GW62 is a critical component in "Generator Differential Protection" (87G) schemes. In a hydroelectric or thermal power plant setting, the module interfaces with CTs located at both the neutral and terminal ends of the generator windings. By providing perfectly matched isolation and scaling, it allows the REG 216 system to detect minute current imbalances that indicate internal faults. Its IP30-rated enclosure provides a necessary layer of physical security against dust and accidental contact in busy control cabinets, while its transformer-based isolation protects the wider DCS network from ground loop currents and surges originating in the switchyard.
