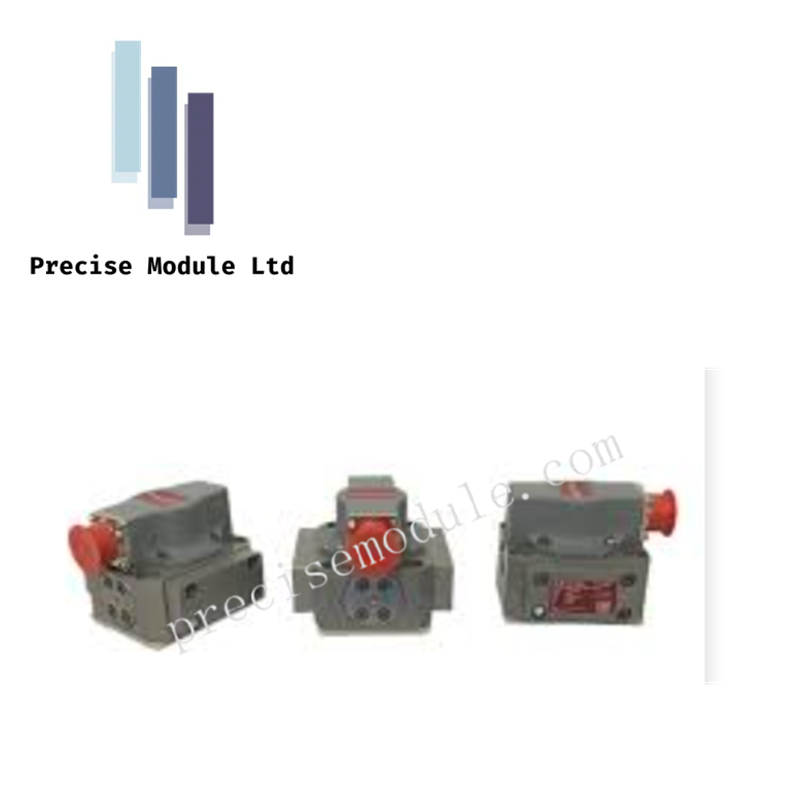

M00G J761-004A Servo Valve

Technical Overview

The J761-004A is a high-capacity, two-stage electrohydraulic servo valve (EHSV) engineered by MOOG for rigorous industrial motion control. This pilot-operated unit utilizes a sophisticated mechanical feedback mechanism to translate analog electrical commands into high-volume hydraulic flow with exceptional linearity. Designed to thrive in high-cycle environments, the J761-004A features a precision-ground 4-land sliding spool that ensures rapid response times even under extreme pressure. With integrated resistance to 30g shock and vibration, this valve is a primary choice for heavy-duty metal forming, power generation turbine bypass, and large-scale material testing rigs where sub-millimeter positioning accuracy is a functional necessity.

Detailed Technical Specifications

The following data defines the high-pressure performance and structural integrity of the J761-004A:

• Manufacturer: MOOG Inc.

• Model Identification: J761-004A

• Valve Architecture: 2-Stage Pilot-Operated with Mechanical Feedback

• Flow Capacity: 30 to 60 GPM (113 to 226 L/min) at 70 bar (1000 psi) $\Delta p$

• Maximum System Pressure: 350 bar (5000 psi)

• Internal Spool Design: Precision-ground 4-land sliding spool

• Hysteresis (Typical): $\le$ 3.0% of rated signal

• Threshold (Typical): $\le$ 0.5% of rated signal

• Null Shift (at $\Delta T$ = 55 K): $\le$ 2.0%

• Rated Flow Deviation: $\pm$ 10%

• Sealing Technology: Fluorocarbon (FKM) 85 SHORE D (Viton equivalent)

• Fluid Compatibility: Mineral oils per DIN 51524 and ISO 11158

• Environmental Ratings:

• Vibration: 30g (3-axis, 10 Hz to 2 kHz)

• Shock: 30g (3-axis)

• Interface: MOOG standard mounting and analog electrical connection

Performance Dynamics and Control Logic

The J761-004A operates via a force-balance feedback loop between the pilot and power stages. An electrical current applied to the torque motor creates a differential pressure that shifts the main spool. A stainless steel feedback wire links the main spool back to the pilot flapper; as the spool reaches its commanded position, the wire generates a mechanical counter-torque that re-centers the flapper. This "closed-loop-in-hardware" logic minimizes thermal drift and ensures the valve maintains a stable null position. The FKM 85 Shore D seals provide superior chemical resistance and prevent extrusion under the high-frequency pressure spikes typical of 350 bar systems.
