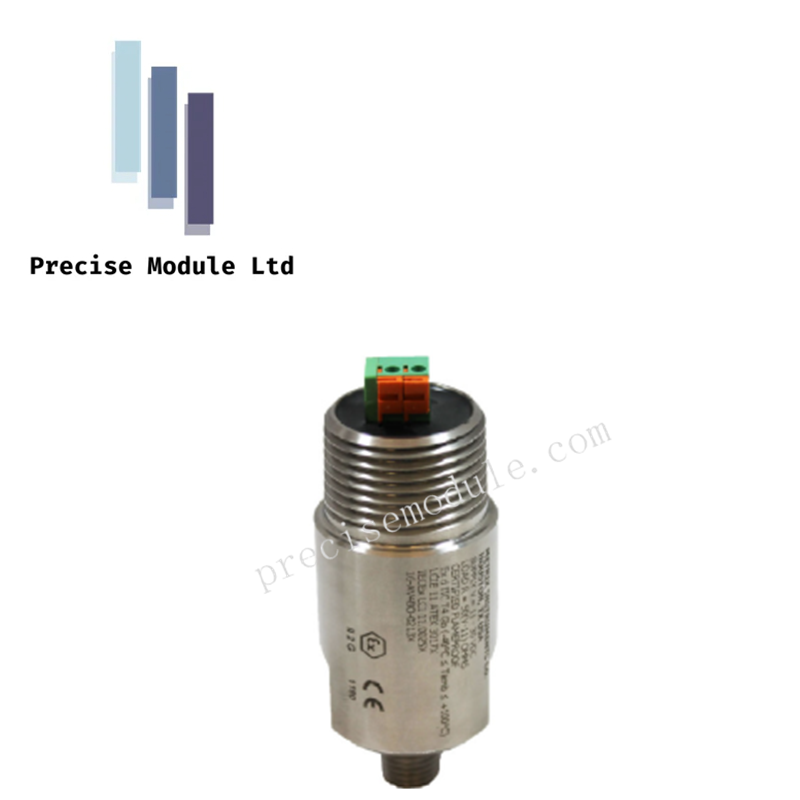

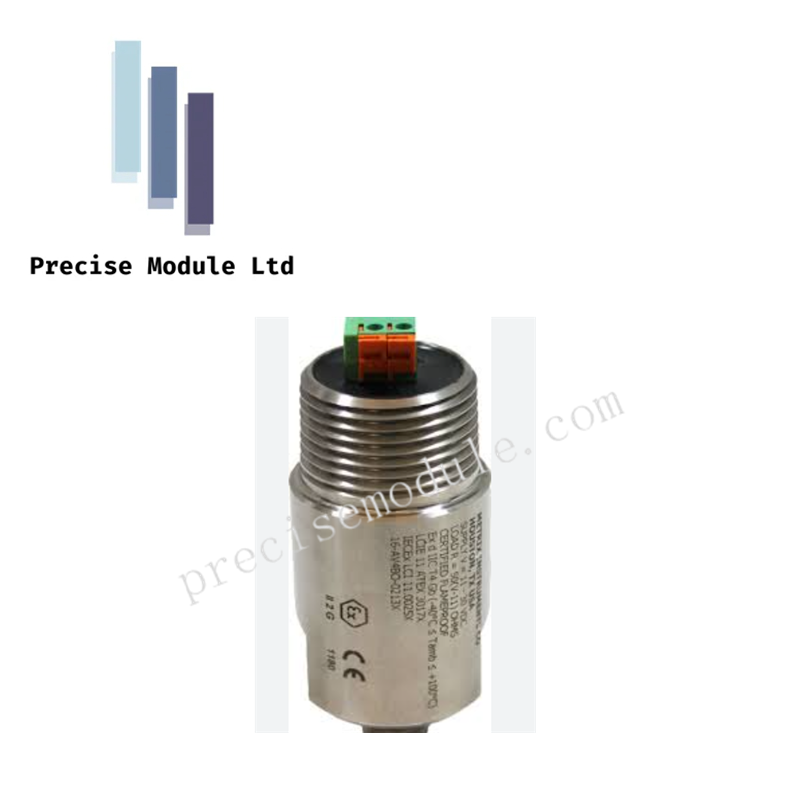

METRIX ST5484E-151-132-00 Seismic Velocity Transmitter

Product Description

The Metrix ST5484E-151-132-00 is a high-performance, self-contained seismic velocity transmitter designed for continuous vibration monitoring of rotating machinery. This "loop-powered" sensor converts mechanical vibration into a standard 4-20mA analog signal, which can be fed directly into a PLC, DCS, or SCADA system. By eliminating the need for a separate signal conditioner, the ST5484E simplifies installation and reduces overall system costs.

Constructed with a rugged 316 stainless steel housing, this model is engineered to thrive in the harshest industrial environments. This specific configuration includes an 8200 conduit elbow, making it fully explosion-proof and certified for use in Hazardous Areas (Class I, Div 1). Whether monitoring cooling tower fans, pumps, or motors, the ST5484E-151-132-00 provides the reliable, real-time data necessary for effective predictive maintenance and machinery protection.

Technical Specifications

• Manufacturer: Metrix Instrument Co.

• Model Number: ST5484E-151-132-00

• Product Type: Seismic Velocity Transmitter

• Measurement Range: 0–25.4 mm/s RMS (0–1.0 in/sec) True RMS

• Output Signal: 4–20 mA (proportional to velocity)

• Power Supply: 12–30V DC (Loop-powered, typically 24V DC)

• Frequency Response:

• High-Pass Filter: 2 Hz (Standard)

• Low-Pass Filter: 1500 Hz (Standard)

• Mechanical & Environmental:

• Housing Material: 316 Stainless Steel

• Stud Size: 1/4" x 20 UNF to 1/4" NPT (Integral stud mount)

• Operating Temperature: -40°C to +85°C (-40°F to +185°F)

• Weight: 0.36 kg (360g)

• Certifications & Safety:

• Hazardous Area: CSA US/C Approved

• Class Rating: Class I, Div 1, Groups B–D; Class II, Div 1, Groups E–G

• Explosion Protection: Includes 8200 conduit elbow for secure wiring

• Origin: USA

Application Scenarios

The ST5484E is a versatile solution for general-purpose machinery monitoring:

• Motors & Pumps: Detecting early-stage bearing wear or unbalance in industrial fluid handling.

• Cooling Towers: Monitoring fan vibration levels to prevent catastrophic structural failure.

• Centrifuges: Providing a high-speed vibration "trip" signal to protect critical processing equipment.

• Blowers & Fans: Continuous monitoring in chemical plants and refineries where explosion-proof ratings are mandatory.
