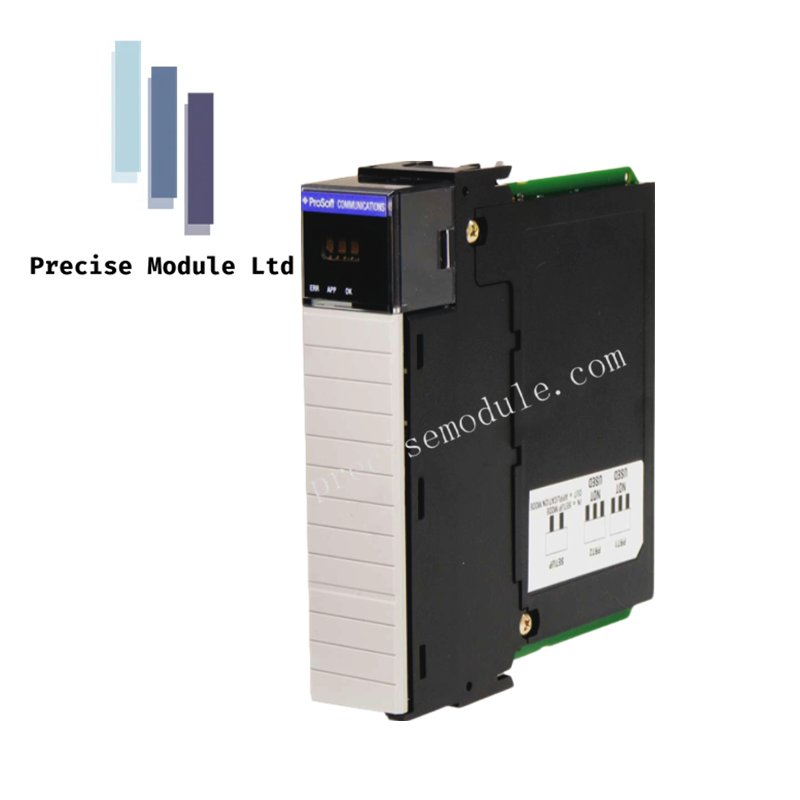

MVI56E-MNET | ProSoft | Modbus TCP/IP Client/Server Enhanced Communication Module

Manufacturer: Allen-Bradley
Product No.: MVI56E-MNET
Condition：in Stock
Product Type: Modbus TCP/IP Client/Server Enhanced Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 4000g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Overview

The MVI56E-MNET is a Modbus TCP/IP Client/Server Enhanced Communication Module designed for industrial automation systems. It ensures reliable and efficient data transfer while supporting extended temperature operation through the MVI56E-MNETXT variant.

Key Features

Operates as a Modbus TCP/IP client and server for flexible industrial networking.
Backplane compatible with 800 mA @ 5 VDC and 3 mA @ 24 VDC load.
Supports extreme environments with MVI56E-MNETXT, featuring extended temperature and robust design.
LED indicators display battery status (ERR), application status (APP), and module status (OK).
Shock and vibration resistant, designed for harsh industrial conditions.

Technical Specifications

Attribute	Details
Part Number	MVI56E-MNET
Manufacturer	ProSoft
Product Type	Modbus TCP/IP Client/Server Enhanced Communication Module
Backplane Current Load	800 mA @ 5 VDC, 3 mA @ 24 VDC
Operating Temperature	0°C to 60°C (MVI56E-MNET), -25°C to 70°C (MVI56E-MNETXT)
Storage Temperature	-40°C to 85°C
Shock	30 g operational, 50 g non-operational
Vibration	5 g from 10 Hz to 150 Hz
Relative Humidity	5% to 95% RH, non-condensing
LED Indicators	ERR (Battery), APP (Application), OK (Module)
Shipping Weight	4 Kg

Applications

The MVI56E-MNET module is ideal for industrial automation, SCADA integration, and real-time process control. It provides reliable Modbus TCP/IP communication, supports client/server operations, and maintains stable performance in harsh environments.
