C65H-DC(IEC60947-2/GB14048.2) | Schneider |DC Miniature Circuit Breaker

Manufacturer: Schneider Electric
Product No.: C65H-DC(IEC60947-2/GB14048.2)
Condition：in Stock
Product Type: DC Miniature Circuit Breaker
Product Origin: France
Payment:T/T, Western Union
Weight: 220g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

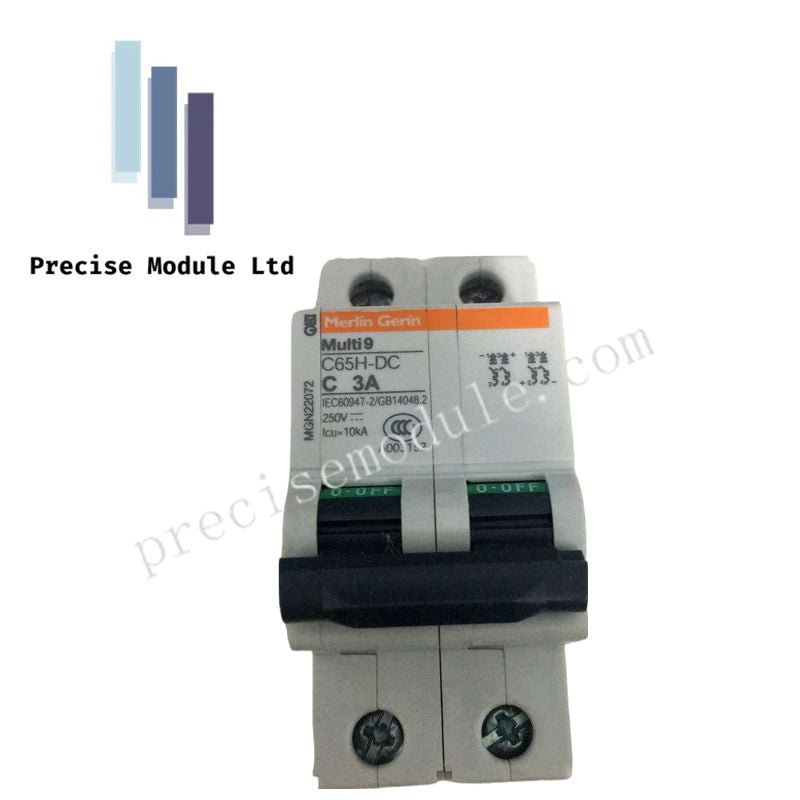

Schneider C65H-DC DC Miniature Circuit Breaker

The Schneider C65H-DC is a high-performance DC miniature circuit breaker designed specifically for protection in direct current (DC) electrical systems. Part of the Multi 9 series, this breaker is recognized for its compact design, reliable operation, and compliance with international standards. It's ideal for applications such as photovoltaic systems, industrial control panels, and DC distribution networks.

Key Features and Technical Specifications

Feature	Specification
Product Type	DC Miniature Circuit Breaker
Model Number	C65H-DC
Standard Compliance	IEC 60947-2 / GB 14048.2
Rated Voltage (Ue)	250 V DC
Rated Current (In)	6 A to 63 A (varies by model)
Breaking Capacity (Icu)	10 kA at 250 V DC
Tripping Curve	Type C (thermal-magnetic)
Number of Poles	2P
Rated Impulse Voltage (Uimp)	5 kV
Utilization Category	DC applications
Electrical Life	10,000 operations
Mechanical Life	20,000 operations
Operating Temperature	−30°C to +70°C
Storage Temperature	−40°C to +85°C
Humidity Resistance	Up to 95% at 55°C
Dimensions (H × W × D)	84 mm × 36 mm × 73.5 mm
Weight	Approx. 220 g
Terminal Type	Tunnel-type terminals (1–25 mm²)
Tightening Torque	2.5 N·m
Mounting	DIN rail
Certifications	IEC CB Report, CCC
