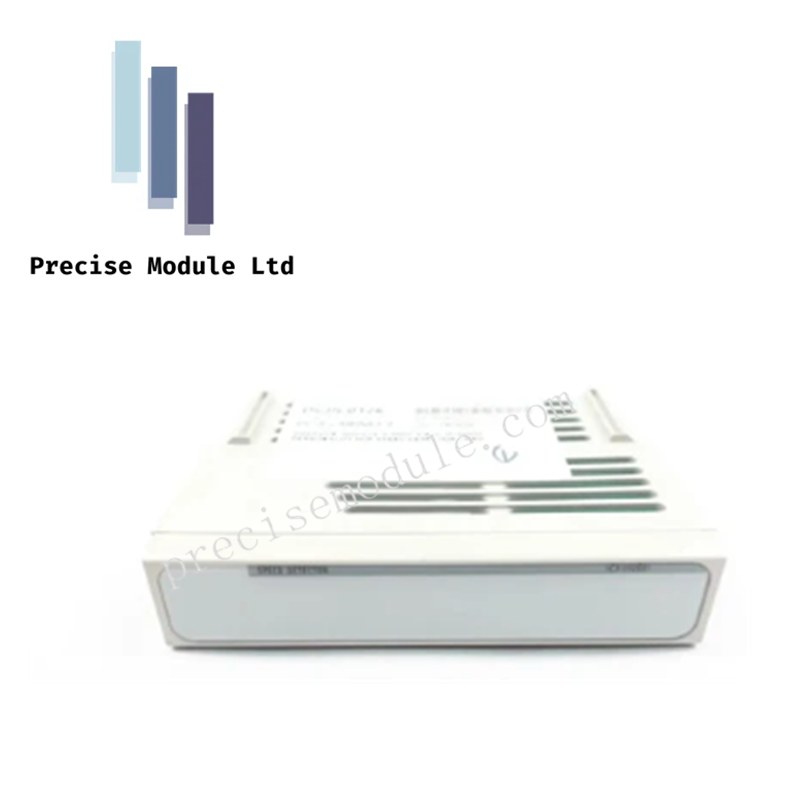

Ovation 1C31192G01 Speed Detector Personality Module

Technical Overview

The 1C31192G01 is a high-performance Speed Detector Personality Module (PMOD) specifically designed for the Emerson Ovation Distributed Control System (DCS). This module serves as the critical hardware interface between high-speed rotating machinery and the digital control environment. Engineered to handle demanding industrial applications, the 1C31192G01 translates raw frequency pulses from field sensors into precise digital speed data. Whether monitoring a massive steam turbine or a high-speed industrial motor, this module provides the high-resolution frequency tracking necessary for governor control, synchronization, and safety-critical overspeed protection.

Detailed Technical Specifications

The following hardware parameters define the high-speed processing capabilities of the 1C31192G01:

• Manufacturer: Emerson Process Management (Power & Water Solutions)

• Model Number: 1C31192G01

• Product Type: Speed Detector Personality Module (PMOD)

• System Platform: Ovation Distributed Control System (DCS)

• Input Compatibility:

• Passive Magnetic Pickups (MPUs)

• Active Encoders

• Tachometers

• Frequency Input Range: 1 Hz to 100 kHz (Supports ultra-low to high-speed rotation)

• Measurement Accuracy: $\pm$ 0.1% of reading

• Sampling Performance: 1,000 samples per second (1 kHz update rate)

• Visual Diagnostics: Integrated LED indicators for each input channel

• Mounting: Standard DIN rail mountable (within the Ovation I/O assembly)

• Isolation: Galvanic isolation between field inputs and system logic

Operational Role and Protection Logic

The 1C31192G01 is often the "front line" for turbine protection. Because it can process frequencies up to 100 kHz with a 1 ms sampling rate, it is capable of detecting an acceleration event (such as a load rejection) and triggering an overspeed trip signal almost instantaneously. Within the Ovation hierarchy, this PMOD works in tandem with an Electronics Module (EMOD) to perform pulse-counting logic. It filters out electrical noise from the field sensors, ensuring that the speed value used for control is both stable and accurate, even in the high-EMI (electromagnetic interference) environments of a power plant turbine deck.
