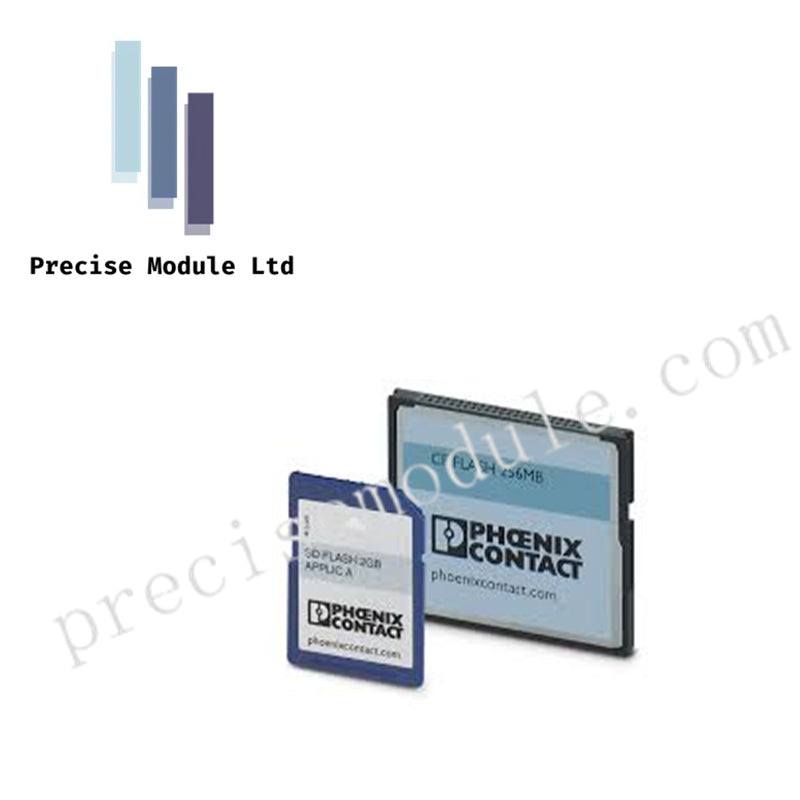

Phoenix Contact 2988780 SD-FLASH 2GB Industrial SD Memory Card for ILC and RFC Controllers

Product Description:

The Phoenix Contact 2988780 (SD-FLASH 2GB) is an industrial-grade SD memory card designed specifically for use with Phoenix Contact’s Inline Controllers (ILC) and Remote Field Controllers (RFC). This highly durable memory card is engineered to withstand the harsh conditions of industrial environments, including extreme temperatures, vibrations, and high read/write cycles, ensuring reliable performance in automation systems.

Unlike standard consumer-grade SD cards, the SD-FLASH 2GB includes specialized features, such as the ability to store user projects, parameterization data, and web-based visualization files. It often contains pre-installed license keys or specific file structures required for advanced functions in the PC WORX engineering environment, making it essential for certain PLC functionalities. The SD-FLASH 2GB is also designed to enable Program and Configuration Memory features, making it a vital part of the control system.

Key Features:

• Industrial-Grade Endurance:
  Built using SLC/MLC technology, ensuring high read/write cycle endurance for long-term reliability in industrial automation environments.

• Extended Temperature Range:
  Can operate in extreme temperature environments, from -40°C to +85°C (-40°F to 185°F), making it ideal for control cabinets and harsh field conditions.

• Vibration Resistance:
  Features robust contact pins designed to prevent data corruption in high-vibration environments, such as those found in machinery and industrial equipment.

• Plug-and-Play Project Transfer:
  Allows quick field replacement of controllers without needing a laptop. Just transfer the SD card from one controller to another to reload the user project, configuration, and visualization files.

• Compatibility with Phoenix Contact Controllers:
  Fully compatible with the ILC 131, ILC 151, ILC 171, ILC 191, and RFC Series, enabling seamless integration with Phoenix Contact automation systems.

Technical Specifications:

Important Application Note: Licenses

The Phoenix Contact SD-FLASH 2GB is often used to store more than just basic data. It may also contain pre-installed licenses for advanced functions such as:

• Project Storage: Stores compiled project files (e.g., .ZWT files).

• Web Visualization (WebVisu): Holds HTML and JavaScript files for web-based Human-Machine Interface (HMI) screens.

• Function Blocks: Some function blocks may require a license key stored on the SD card for specific features, such as SQL communication or motion control libraries.

Maintenance & Troubleshooting:

• Formatting Warning:
  Never use a standard Windows Quick Format on the card if it contains a license, as it may erase critical hidden license sectors, preventing the PLC from accessing certain function blocks.

• Card Full Warning:
  If the "FAIL" LED on your ILC controller is flashing, it may indicate that the SD card has reached its capacity. Ensure that the card isn't filled up with log files or other data.

• Ejection Process:
  Always stop the PLC or use the "Safe Eject" procedure (if supported by your firmware) before removing the SD card to avoid file system corruption.

• Compatibility Check for RFC Users:
  For users of the Remote Field Controller (RFC), ensure that your firmware supports 2GB SD card capacity. Older models (pre-2012) may be limited to 256MB or 1GB.
