ProSoft 5601-RIO-MCM | Industrial Protocol Converter | Gateway Module

Product Description

Overview

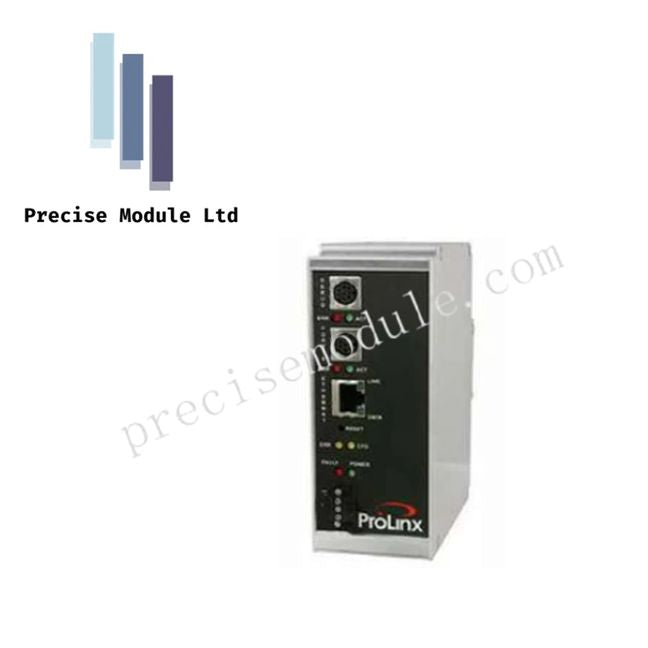

The 5601-RIO-MCM by ProSoft Technology is a robust industrial communication gateway designed to connect Allen-Bradley Remote I/O (RIO) networks with Modbus devices. Ideal for legacy PLC systems, this gateway simplifies protocol integration, enabling seamless data exchange between older PLCs and modern Modbus peripherals. Its compact, DIN-rail design ensures easy installation within constrained control cabinets.

Key Features

Dual Protocol Operation

• Functions as a Modbus Master or Slave while simultaneously acting as a Remote I/O Adapter or Scanner.

• Enables Allen-Bradley PLCs (PLC-5, SLC 500) to communicate with Modbus devices like drives, meters, and sensors.

High-Speed Data Handling

• Supports efficient mapping of up to 24 words of input and output data per logical RIO rack.

• Minimizes latency to ensure time-sensitive process signals are reliably exchanged.

Industrial Reliability

• 500V optical isolation on serial ports for protection against electrical noise and ground loops.

• Operating temperature range: 0°C to 60°C (32°F to 140°F).

• Powered by standard 24 VDC industrial supplies with max 300 mA consumption.

Configuration & Monitoring

• RS-232 setup port for initial configuration using ProSoft Configuration Builder software.

• Supports configuration of Modbus parameters, RIO rack sizes, and real-time diagnostics.

• LED indicators provide visual confirmation of power, RIO status, and serial activity.

Technical Specifications

Applications

• Migrating legacy Allen-Bradley PLC networks to Modbus-based devices.

• Integrating motor drives, power monitors, and specialized sensors in industrial automation.

• Maintaining support for phased-out or end-of-life RIO networks.

FAQ

Q: Can the 5601-RIO-MCM connect multiple Modbus devices simultaneously?
A: Yes, the gateway can operate as a Modbus Master or Slave, supporting multiple devices on RS-485 networks.

Q: Is this module compatible with modern EtherNet/IP PLC systems?
A: For new installations, ProSoft recommends EtherNet/IP-capable modules like the PLX series for higher bandwidth applications.

Q: How is the device configured?
A: Configuration is done via RS-232 using ProSoft Configuration Builder software, allowing full control of RIO and Modbus settings.

Q: Does it support extreme industrial environments?
A: The device operates reliably in temperatures up to 60°C and features optical isolation to protect against electrical noise.
