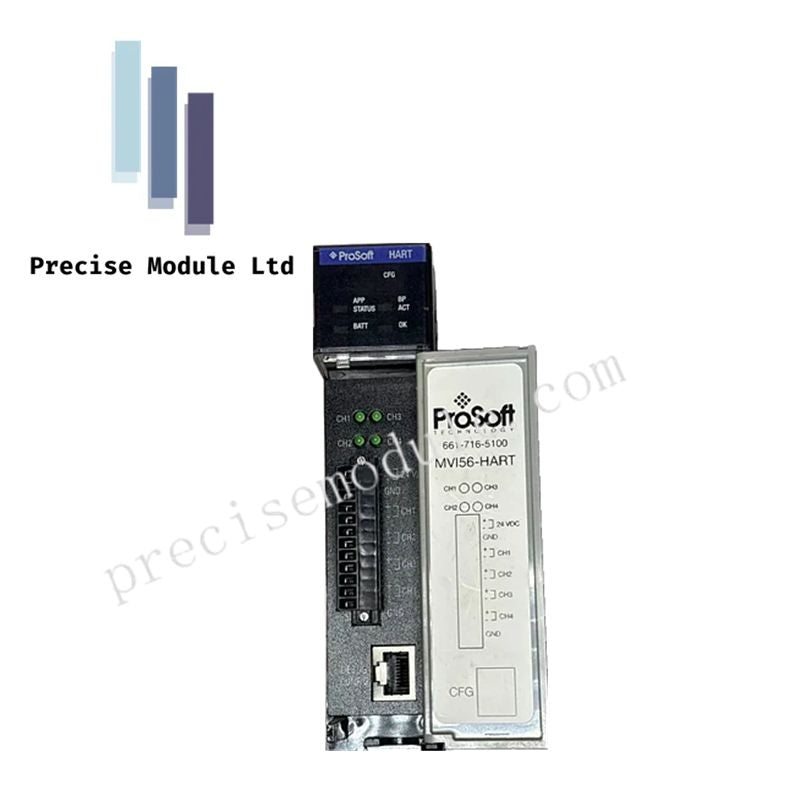

ProSoft MVI56-HART ControlLogix HART Communication Module

Manufacturer: Allen-Bradley
Product No.: MVI56-HART
Condition：in Stock
Product Type: ControlLogix HART Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

ProSoft MVI56-HART Communication Module

Overview

The ProSoft MVI56-HART is a ControlLogix interface module that enables direct communication with HART-compatible field devices. It supports multidrop master communication across four independent channels, with each channel handling up to 15 devices. This module integrates real-time HART diagnostics and configuration data into Rockwell Automation ControlLogix systems, ensuring smooth interaction with smart instruments like flow, pressure, and temperature transmitters.

Its rugged design, efficient data exchange, and built-in diagnostic functions make the MVI56-HART module suitable for industries such as oil and gas, refining, chemical processing, and remote monitoring.

Technical Specifications

Feature	Specification
Model Number	MVI56-HART
Manufacturer	ProSoft Technology
System Platform	Rockwell Automation ControlLogix
Communication Protocol	HART (Highway Addressable Remote Transducer)
Channels	4 configurable HART channels
Devices per Channel	Up to 15 HART slave devices
Data Handling	Internal database and ladder logic (up to 5000 registers)
Slot Type	Single-slot module for 1756 ControlLogix chassis
Power Requirements	800 mA @ 5 VDC
Operating Temperature	−30°C to +60°C
Storage Temperature	−40°C to +85°C
Configuration Tool	ProSoft Configuration Builder (PCB)
Diagnostics	Integrated status monitoring and data analyzer
Firmware Updates	Supported via configuration software
Agency Approvals	Class I Div 2 Groups A, B, C, D
Certifications	CE, RoHS, FCC
