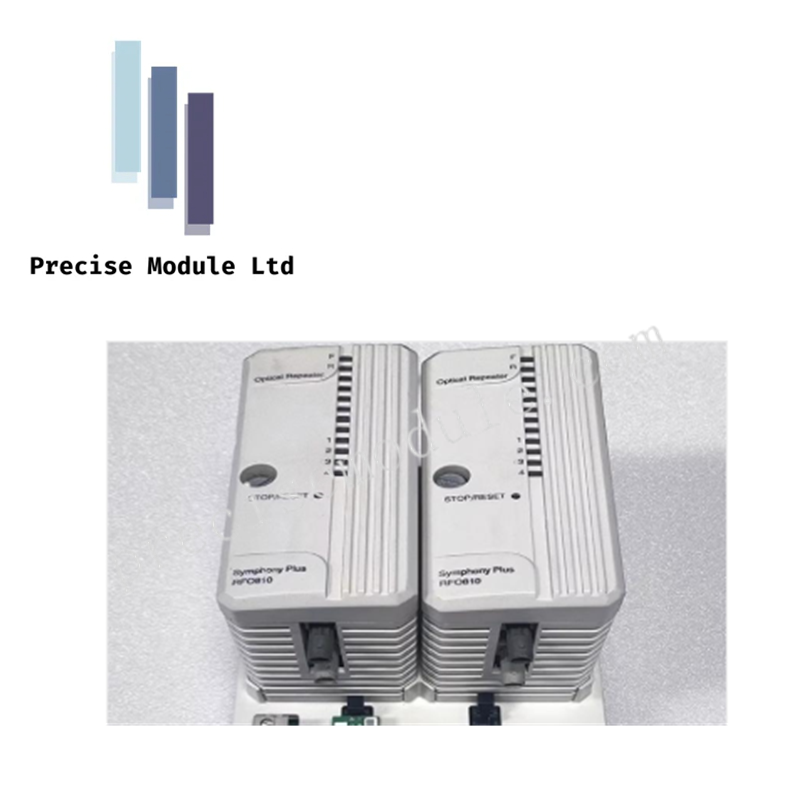

RFO810 ABB HN800/cW800 Fiber Optic Repeater Module

Product Description

The ABB RFO810 is a high-performance, redundant optical communication repeater designed to extend the reach of industrial control networks. Specifically engineered for the Symphony Plus (S+) Control system, this module allows SD Series controllers (such as the HPC800 and SPC700) and HR Series controllers (including BRC300/400/410) to communicate transparently with remote I/O devices.

By converting electrical signals to fiber optics, the RFO810 bypasses the distance limitations of standard copper cabling, extending the HN800 or CW800 bus up to 3 km. This makes it an essential component for distributed architectures where controllers and I/O clusters are separated across large industrial sites. The module supports robust "Star Architecture" configurations, providing the scalability and fault tolerance required for mission-critical power and water utility applications.

Technical Specifications

• Product ID/Model: RFO810

• Bus Compatibility: Supports both HN800 (I/O bus) and CW800 (Peer-to-peer bus)

• Maximum Fiber Distance: Up to 3 km (1.86 miles)

• Network Topology: Supports Star Architecture (Up to 4 optical links from a central controller)

• HN800 Capacity: Supports up to 64 devices on each remote electrical HN800 segment

• CW800 Capacity: Supports up to 30 single or 15 redundant pairs of HPC800 controllers per segment

• Required Hardware: Must be used with HBX01L / HBX01R for proper bus termination

• Controller Compatibility: Fully compatible with Symphony Plus SD and HR Series hardware

• HS Code: 85176200

• Physical Dimensions: 250 mm x 80 mm x 200 mm

• Net Weight: 0.5 kg

• Country of Origin: Germany / Sweden

Application Scenarios

The RFO810 is frequently deployed in large-scale infrastructure projects, including:

• Power Plant Automation: Connecting the main control room to remote turbine or boiler I/O racks located in separate buildings.

• Water Treatment Facilities: Extending peer-to-peer communication between controllers across expansive filtration and pump stations.

• Large Industrial Campuses: Linking distributed process areas into a single, cohesive Symphony Plus control network without signal degradation.
