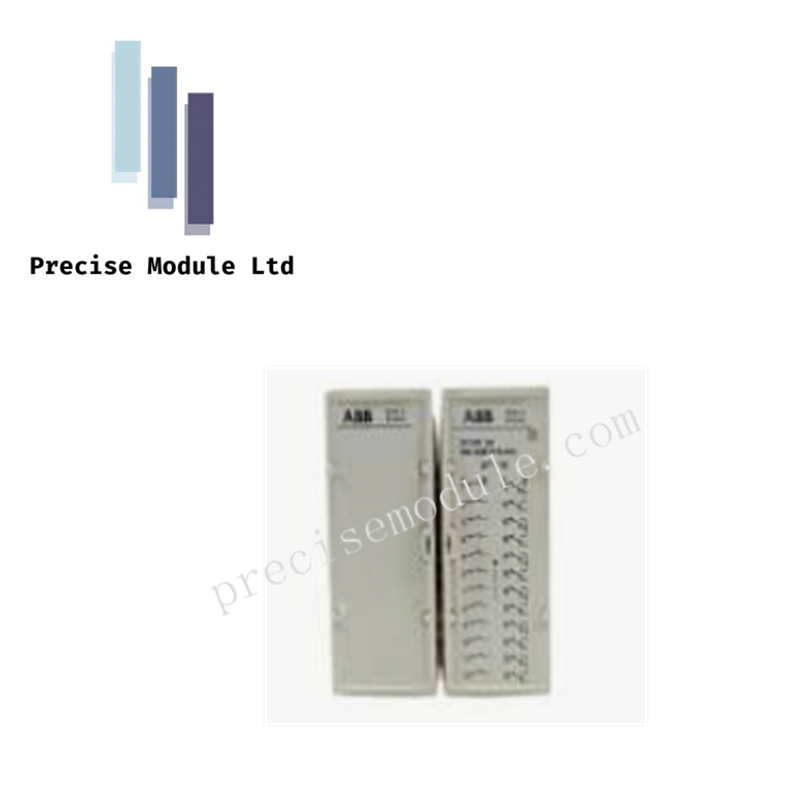

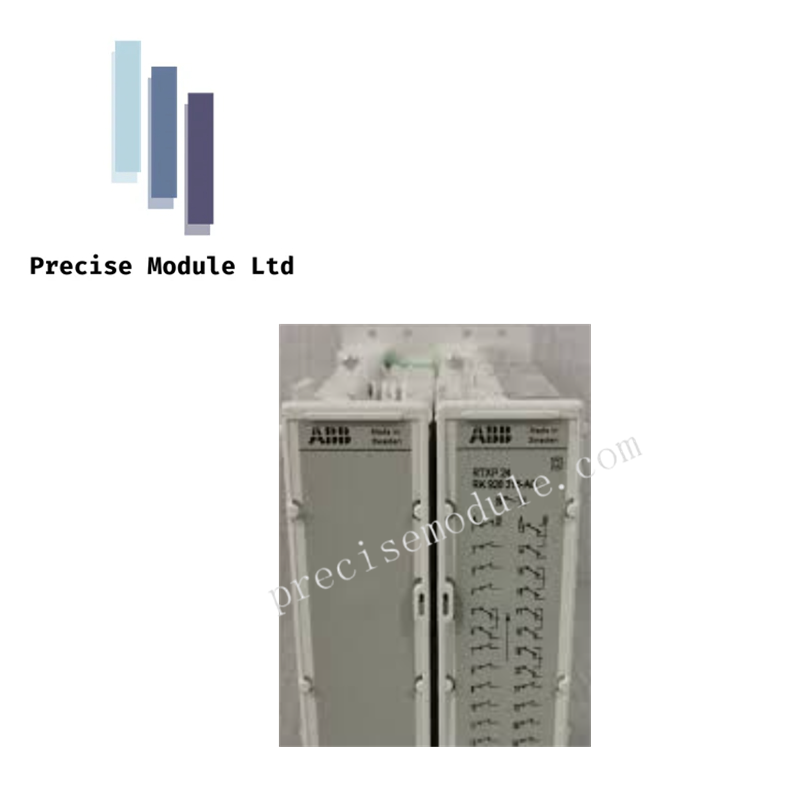

RTXP24 ABB PLC Input Module

Product Description

The ABB RTXP24 is a specialized signal test unit designed to facilitate the simulation and isolation of analog signals within electrical protection and control systems. While categorized as an interface module, its primary function is to act as a passive bridge between field wiring and protection relays. This allows for the safe simulation of current and voltage inputs, making it an indispensable tool for commissioning, maintenance, and troubleshooting in high-stakes industrial environments.

Technical Specifications

• Model Number: RTXP24

• Manufacturer: ABB

• Product Type: Signal Test Unit / Interface Module

• Dimensions: 200 mm x 200 mm x 100 mm

• Weight: 0.3 kg

• Mounting Type: Panel-mounted

• Connection Type: Color-coded terminals

• Safety Features: Mechanical interlocks

Operational Functionality

The ABB RTXP24 serves as a critical intermediary in protection schemes, particularly within substations and control rooms. It enables engineers to simulate field conditions without the need to disturb live circuits. By acting as a passive interface, it ensures that testing procedures do not interfere with the actual operation of the connected equipment. The unit is engineered with mechanical interlocks to prevent accidental operation, ensuring the safety of personnel and the integrity of the grid during testing phases.
