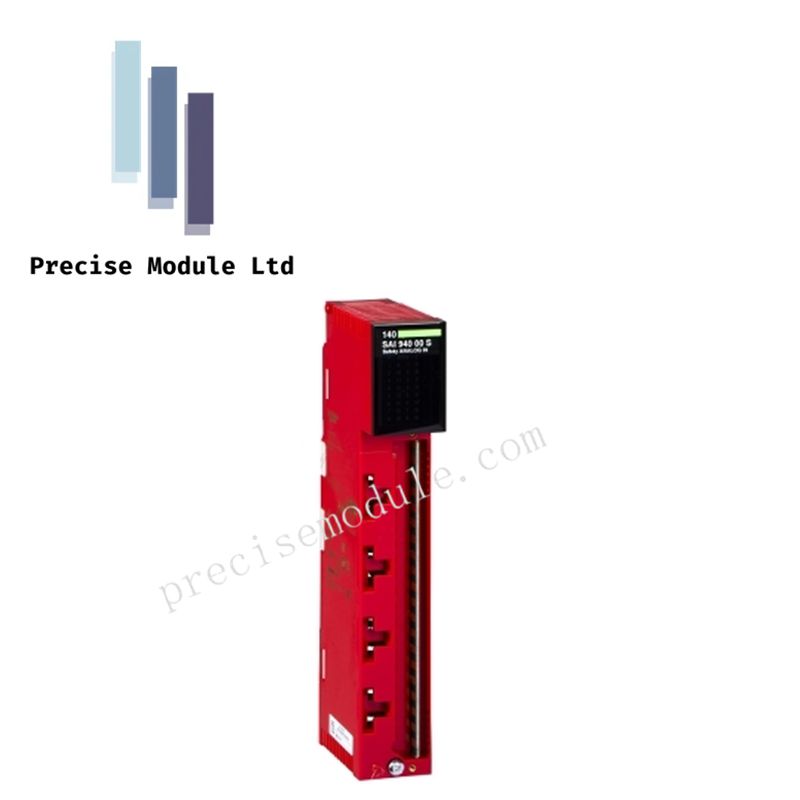

Schneider 140SAI94000S Analog Safety Input Module

Manufacturer: Schneider Electric
Product No.: 140SAI94000S
Condition：in Stock
Product Type: Analog safety input module
Product Origin: France
Payment:T/T, Western Union
Weight: 500g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Schneider Electric Modicon Quantum 140SAI94000S Analogue Safety Input Module

The Schneider Electric Modicon Quantum 140SAI94000S Analogue Safety Input Module is designed for the Modicon Quantum automation platform. This high-performance module provides accurate analogue signal processing for safety-critical industrial applications. With a 16-bit resolution, an 8-input channel configuration, and robust isolation between channels, it ensures precise and reliable monitoring in demanding environments.

This module is ideal for situations where safety and signal integrity are critical. It features a low-pass filter for improved signal stability and has certifications like UL, CSA HazLoc, and TÜV Rheinland (SIL2) to meet global safety standards.

Key Features and Technical Specifications

Category	Specification
Model	140SAI94000S
Product Type	Analogue Safety Input Module
Filter Type	Single pole low pass - 3 dB at 15 Hz
Number of Analogue Inputs	8
Addressing Requirement	13 input words
Analogue Input Resolution	16 bits
Linear Measuring Range	0 to 25 mA
Absolute Maximum Input	35 mA
Input Impedance	287 Ohm
Absolute Accuracy Error	+/- 0.3%
	+/- 0.35% of full scale maximum
Linearity Error	+/- 2 µA max at 0 to 60°C
Common Mode Rejection	-65 dB at 60 Hz, -70 dB at 50 Hz
Isolation Between Channels & Bus	1500 V AC for 60 s
Isolation Between Channels	500 V AC for 60 s
Update Time	15 ms
Fault Type	Overranging scale
Marking	CE
Local Signalling	1 LED (green) for bus communication (Active)
	1 LED (red) for external fault detected (F)
	8 LEDs (green) for input status
	8 LEDs (red) for system failure, diagnostic of internal fault
Bus Current Requirement	400 mA
Power Dissipation	3.5 W
Product Certifications	UL, C-Tick, CSA HazLoc, TÜV Rheinland (SIL2), CSA

Environmental and Packaging Information

Category	Specification
Product Certifications	UL, C-Tick, CSA HazLoc, TÜV Rheinland (SIL2), CSA
Packaging (Unit Type 1)	PCE
Units per Package (Unit 1)	1
Package 1 Dimensions	Height: 4.7 cm, Width: 16.2 cm, Length: 31.5 cm
Package 1 Weight	500.0 g
Packaging (Unit Type 2)	S03
Units per Package (Unit 2)	7
Package 2 Dimensions	Height: 30 cm, Width: 30 cm, Length: 40 cm
Package 2 Weight	3.9 kg
