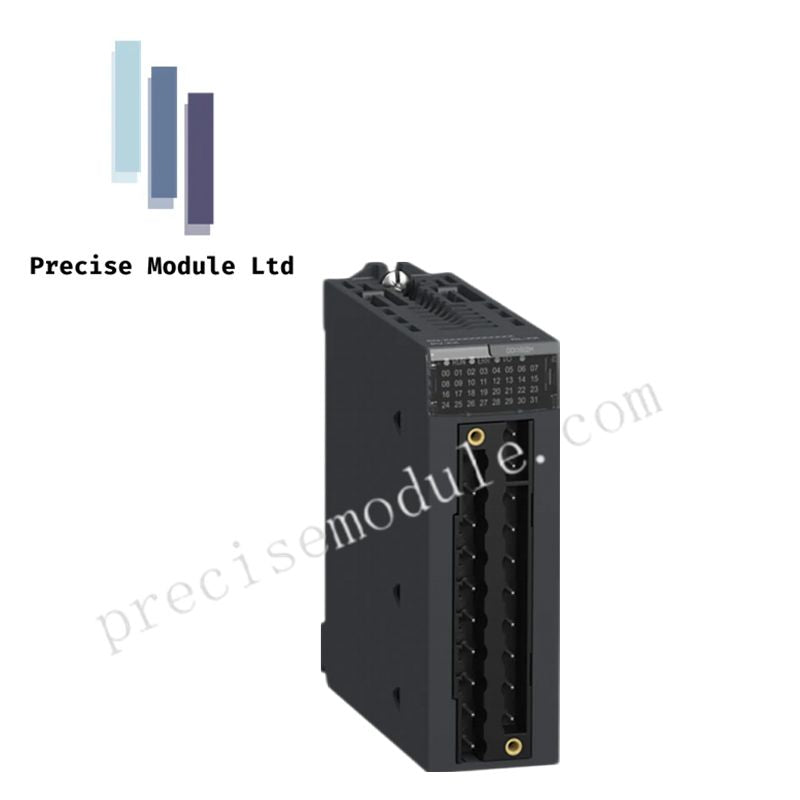

Schneider BMXDDI1602H Discrete Input Module

Schneider BMXDDI1602H Discrete Input Module

  • Manufacturer: Schneider Electric

  • Product No.: BMXDDI1602H

  • Condition：in Stock

  • Product Type: Discrete Input Module

  • Product Origin: France

  • Payment:T/T, Western Union

  • Weight: 115g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Schneider Electric Modicon X80 BMXDDI1602 Discrete Input Module

The Schneider Electric Modicon X80 BMXDDI1602 is a highly reliable Discrete Input Module designed for use in industrial automation systems. With 16 isolated digital inputs, this module operates at 24 V DC with current sink (positive logic) and is ideal for controlling and monitoring sensors and switches in harsh environments.

Key Features and Technical Specifications

Category Specification
Model BMXDDI1602
Series Modicon X80
Product Type Discrete Input Module
Number of Inputs 16 Isolated Inputs
Input Voltage 24 V DC (Positive Logic)
Input Current 3.5 mA
Input Type Current Sink (Logic Positive)
Input Impedance 6.8 kΩ
Sensor Compatibility 2-wire/3-wire proximity sensors (IEC 60947-5-2, IEC 61131-2 Type 3)
Sensor Power Supply 19–30 V DC at 60°C, 21.1–26.4 V DC at 70°C
Response Time 4 ms (Typical), 7 ms (Maximum)
Power Dissipation 2.5 W
Current Consumption 76 mA at 3.3 V DC
MTBF Reliability 775,000 hours
Insulation Resistance > 10 MΩ at 500 V DC
Protection Features Reverse Polarity, External Fuse (0.5 A fast-blow per channel group)
Status LEDs 1 Green LED for Module Operation (RUN)

1 Green LED per Channel (Diagnostic)

1 Red LED for Module Error (ERR)

1 Red LED for I/O Fault (I/O)
IP Rating IP20
Operating Temperature -25°C to +70°C
Storage Temperature -40°C to +85°C
Relative Humidity 5% to 95% (Non-condensing)
Operating Altitude Up to 2000 m (Up to 5000 m with derating factor)
Dielectric Strength 1500 V AC (Primary/Secondary) for 1 minute
Vibration Resistance 3 gn
Shock Resistance 30 gn
Dimensions Approx. 11.5 cm x 5.7 cm x 12 cm
Net Weight 0.115 kg
Mounting Rack-mounted, compatible with BMXXBP series backplanes
Compliance CE, RoHS, IEC standards, Low Voltage Directive, EMC Directive

Environmental Resistance

  • Gas Resistant: Class Gx, 3C4

  • Dust and Sand Resistant: Class 3S4

  • Salt Resistant: Level 2

  • Mold and Fungal Growth Resistant: Class 3B2
