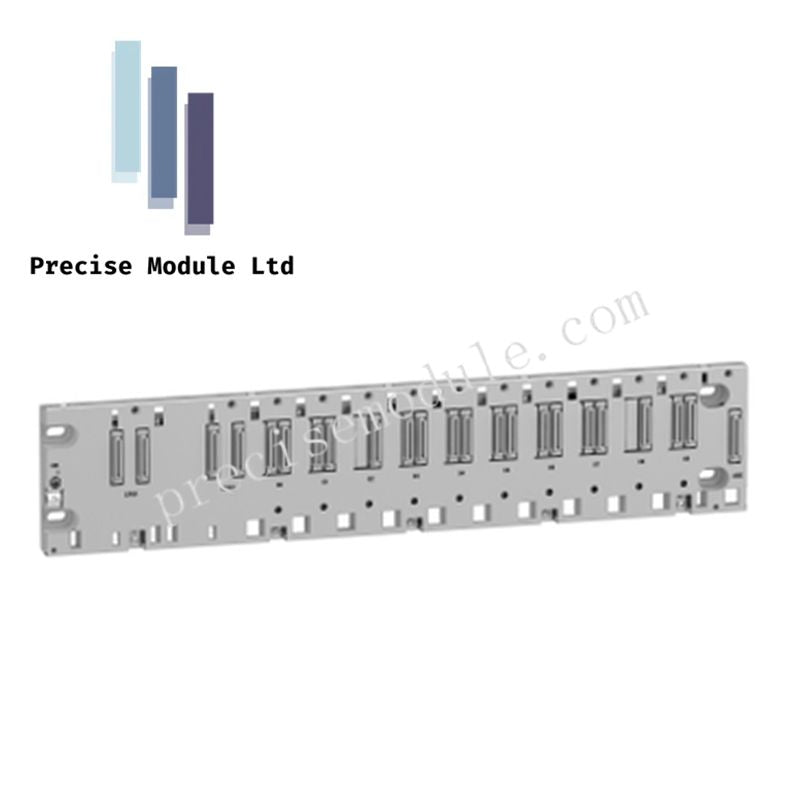

Schneider BMXXBP1002 10-slot Ethernet Backplane

Manufacturer: Schneider Electric
Product No.: BMXXBP1002
Condition：in Stock
Product Type: 10-slot Ethernet Backplane
Product Origin: France
Payment:T/T, Western Union
Weight: 1370g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Overview

The BMXXBP1002 is an Ethernet backplane engineered for the Modicon X80 platform, specifically supporting M340 and M580 Programmable Automation Controllers (PACs). Designed to provide a scalable, high-performance infrastructure for industrial automation, this backplane integrates seamlessly with processors, I/O modules, and communication interfaces. With 10 slots available, the BMXXBP1002 ensures flexibility in system design, offering superior power efficiency and high reliability with an exceptional MTBF rating.

Technical Specifications

Parameter	Specification
Model	BMXXBP1002
Product Type	Ethernet Backplane
Number of Slots	8 Bus X + Ethernet, 2 Bus X
Product Compatibility	M340, M580 PACs, I/O modules, BMXCPS4002, BMX and BME processors
Power Consumption	251 mW (3.3V DC), 3.9W (24V DC)
Electrical Connection	1 connector (XBE) for expansion module
Fixing Mode	Mounted using 4 M6 screws (plate), or 4 screws (panel, diameter: 4.32–6.35 mm)
Current Consumption	162 mA (24V DC), 76 mA (3.3V DC)
MTBF (Mean Time Between Failures)	1,184,170 hours
Weight	1.37 kg
IP Protection	IP20
Operating Temperature	0°C to 60°C
Relative Humidity	5% to 95% without condensation
