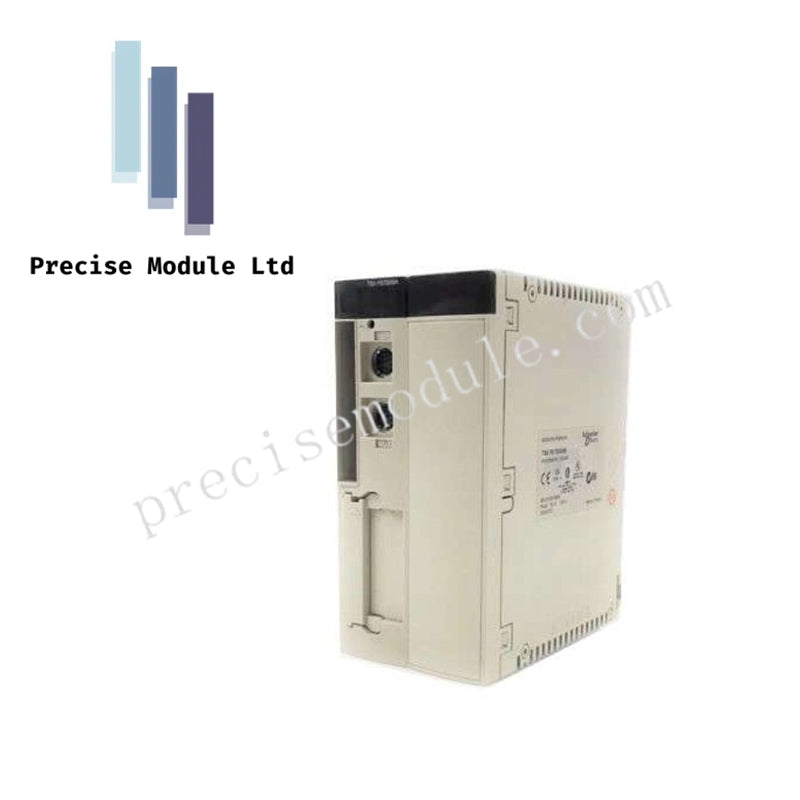

Schneider Electric Modicon TSXP57203 | Modicon Premium Processor | Single-Slot PLC Processor | Fipio Communication

Overview

The Schneider Electric Modicon TSXP57203, also known as the TSX P57 203, is a high-performance Single-slot Processor designed for the Modicon Premium automation platform. It is an integral component for medium-scale industrial applications, offering modular I/O, specialized function modules, and seamless communication through the Fipio fieldbus. With its compact design and powerful processing capabilities, the TSXP57203 serves as the central controller in a PLC (Programmable Logic Controller) system, managing logic execution, data storage, and network synchronization across industrial automation tasks.

Key Features

• Model: Schneider Electric Modicon TSXP57203

• Type: Single-Slot Processor for Modicon Premium Platform

• Fieldbus Communication: Integrated Fipio Bus Manager (1 Mbps) for remote I/O and long-distance device management

• Memory Expansion: Two PCMCIA slots for additional memory or data logging (up to 1 MB)

• Programming Languages: Supports LD (Ladder), ST (Structured Text), FBD (Function Block Diagram), and SFC (Sequential Function Chart)

• Status Indicators: Provides multiple LEDs for monitoring system status and troubleshooting

Technical Specifications

Diagnostic Indicators

The TSXP57203 features several status LEDs to provide real-time diagnostic information for system troubleshooting:

• RUN: Green LED (indicates the program is executing)

• ERR: Red LED (flashes for configuration errors; solid for internal hardware failure)

• I/O: Red LED (indicates an error in local or remote I/O modules)

• TER: Yellow LED (indicates activity on the Terminal/Programming port)

• Fipio: LED (shows the status of the fieldbus communication network)

Physical & Environmental

Applications

The Schneider Electric Modicon TSXP57203 processor is well-suited for medium-scale industrial automation applications, including:

• Modular I/O control systems

• Data logging and advanced processing tasks

• Remote I/O management via the Fipio fieldbus

• Control systems requiring high-speed and reliable communication over long distances

The processor is ideal for environments that demand high processing performance with modular expansion options for I/O and specialized modules, making it perfect for complex automation systems in manufacturing, energy, and other industrial sectors.

Frequently Asked Questions (FAQ)

Q1: What are the key advantages of the TSXP57203 over other Modicon processors?

• The TSXP57203 stands out for its high processing speed, compact design (single-slot), and support for a wide range of I/O and specialized modules. Its ability to handle large-scale industrial applications with memory expansion and fieldbus communication makes it a versatile choice.

Q2: How does the Fipio bus work with the TSXP57203?

• The Fipio bus allows the TSXP57203 to manage remote I/O drops and field devices over long distances (up to 15 km with repeaters), enabling distributed control systems in large or spread-out industrial settings.

Q3: Can the TSXP57203 be used for high-speed motion control?

• Yes, the processor supports up to 16 specialized modules, including high-speed counters and motion control, which can be integrated into your system depending on your specific automation requirements.
