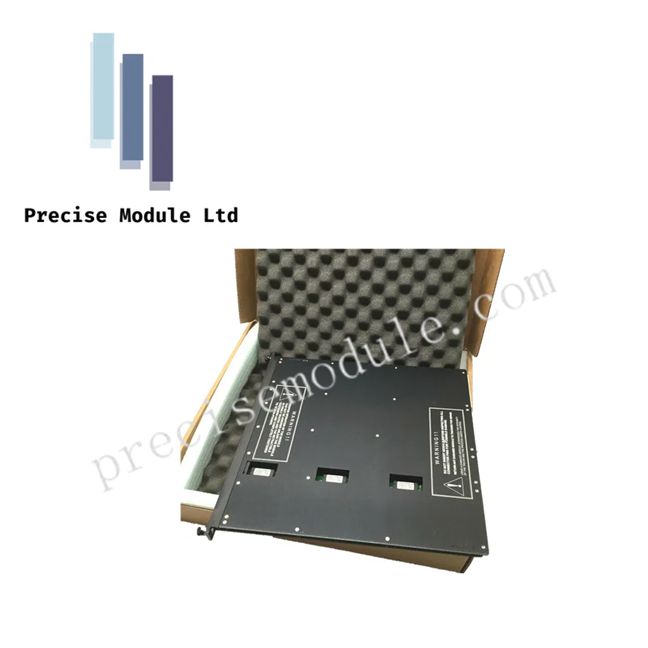

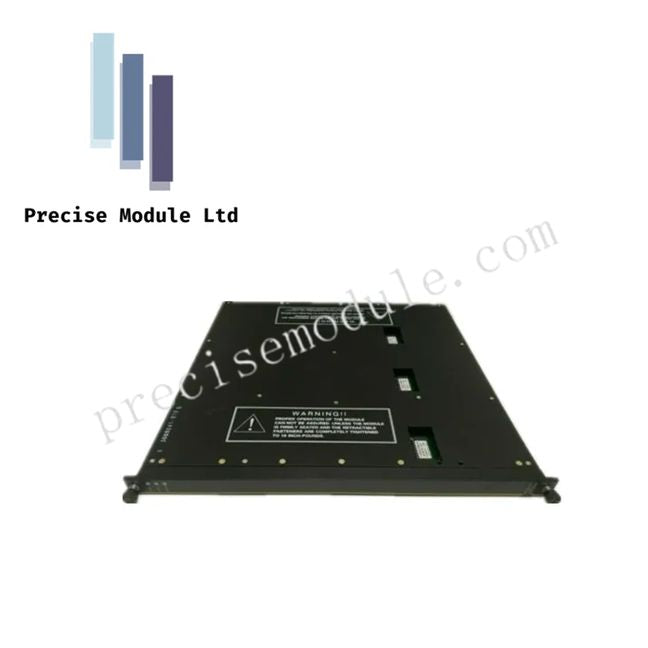

Schneider Electric Triconex 3700A | 3700A TMR Analog Input Module

Product Description

Overview

The Triconex 3700A (Part No. 3700A) is a precision 32-channel Analog Input Module built for the Tricon™ Triple Modular Redundancy (TMR) system. Engineered for high-reliability performance in demanding industrial environments, this module acquires continuous analog signals from sensors such as pressure transmitters, temperature probes, and flow meters with high fidelity. It provides full galvanic isolation and integrated diagnostics to maintain signal integrity and ensure real-time fault detection, making it suitable for safety-critical systems. The module supports hot-swappable installation, allowing maintenance without disrupting operations.

Core Features

Triple Modular Redundant Architecture

• Three independent signal processing paths per input channel

• 2-out-of-3 (2oo3) voting logic ensures consistent output even if one path fails

• Designed for SIL 3 applications, delivering high safety integrity

Precision Analog Input Handling

• 32 isolated analog input channels

• Input ranges: 0–5 VDC, ±5 VDC, 0–10 VDC, 4–20 mA (via external termination)

• High-resolution 12-bit analog-to-digital conversion

• Fast update rate for dynamic control processes

• Accuracy: <0.15% of full scale from 0°C to 60°C

• Input resistance >10 MΩ, over-range tolerance +6%

Diagnostics and Maintenance

• Continuous self-testing and loop-back diagnostics for fault detection

• Hot-swappable design allows replacement under live power

• LED indicators for PASS, FAULT, and ACTIVE status

Electrical and Environmental Protection

• Full galvanic isolation between field inputs and internal logic

• Resistant to shock, vibration, and EMI

• Operating temperature: -40°C to +85°C

• Safety-rated 24 V DC power input

Technical Specifications

Applications

• Critical Process Control: Monitoring pressure, temperature, and level

• Emergency Shutdown (ESD) Systems

• Burner Management Systems (BMS)

• High-Reliability Monitoring for equipment where false trips are costly

Frequently Asked Questions

Q: Can the 3700A module be replaced without shutting down the system?
A: Yes, the Triconex 3700A supports hot-swapping, allowing maintenance under live power.

Q: Which input signals are supported?
A: The module accepts 0–5 VDC, ±5 VDC, 0–10 VDC, and 4–20 mA signals (with ETP conversion).

Q: Is this module suitable for SIL 3 safety applications?
A: Yes, it is certified for IEC 61508 SIL 3 systems, ensuring high-integrity performance.

Q: How does the module protect against electrical interference?
A: Full galvanic isolation and robust EMI/shock/vibration resistance preserve signal accuracy and system safety.
