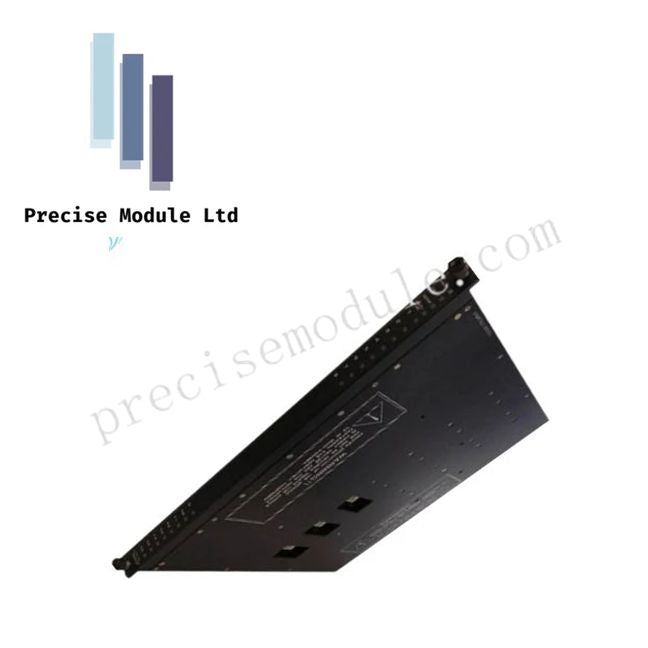

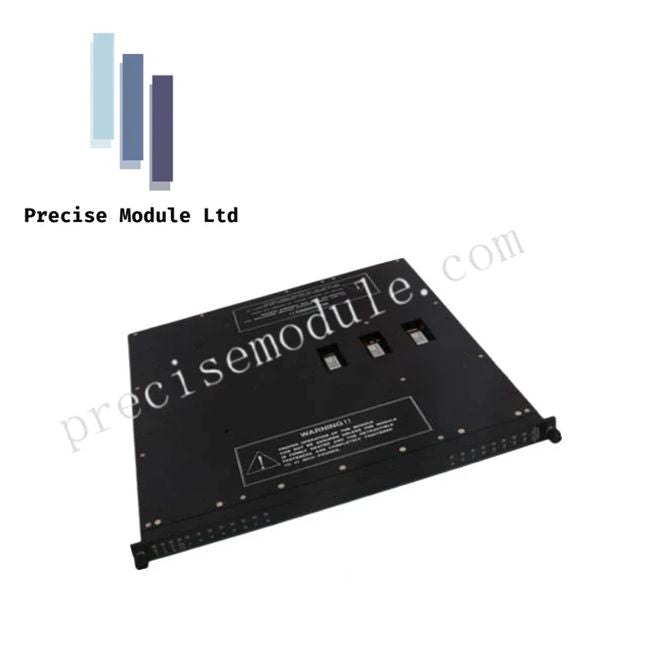

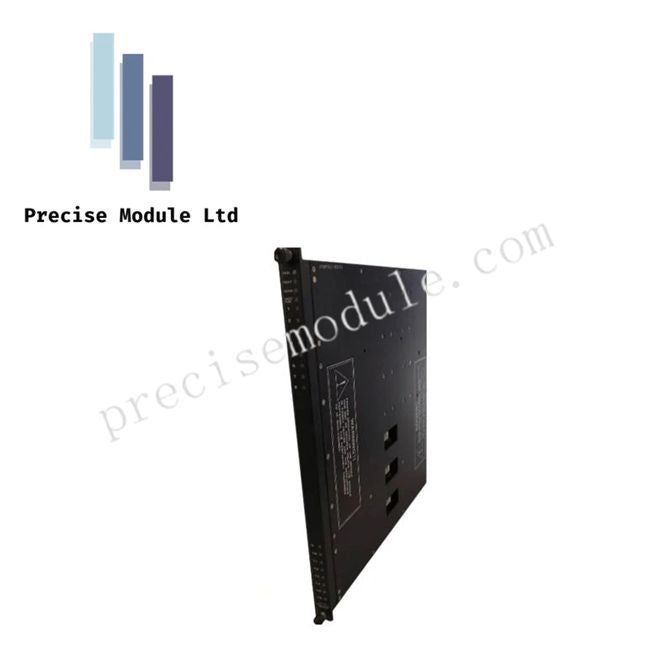

Schneider Electric Triconex 3703E Isolated Digital Input Module

Product Description

Product Overview

The Triconex 3703E is a high-density Isolated Digital Input (DI) Module built for the Tricon Triple Modular Redundant (TMR) safety system. Manufactured by Schneider Electric, this module is essential for safety-instrumented systems (SIS) requiring fault-tolerant, fail-operational design. The 3703E provides robust isolation, precise input detection, and continuous self-diagnostics, ensuring uninterrupted operation in critical applications.

Technical Specifications

Input & Signal Characteristics

• Input Channels: 32 isolated digital points

• Nominal Voltage: 120 V AC/DC

• Voltage Range: 90–155 V AC/DC

• Input Frequency: DC or 47–63 Hz

• Input Update Rate: 50 ms

• Resolution: 12-bit

• Accuracy: <0.15% of full-scale range (0°–60°C)

• Input Resistance: 30 MΩ (DC), min.

• Power-Off Resistance: 30 MΩ (DC), min.

• Common Mode Rejection: -90 dB @ 60 Hz, min; -100 dB @ DC, min

• Common Mode Range: ±200 V peak

• Leg-to-Leg Isolation: 20 kΩ typical

• Input Overrange Protection: 150 VDC / 115 VAC

Power & Consumption

• Normal Power Consumption: <10 W

• Current Range: 0–20 mA, with 250 Ω shunt for 5 V or 500 Ω shunt for 10 V signals

Safety & Diagnostics

• TMR Architecture: Triple Modular Redundancy with 2-out-of-3 voting

• Self-Test Functions: Continuous monitoring for “stuck-at” conditions and channel faults

• Front Panel Indicators: PASS/FAULT, ACTIVE, and individual channel status LEDs

• Hot-Swappable: Supports replacement without interrupting safety logic

• Safety Integrity Level: Suitable for SIL 3 applications

Environmental & Mechanical

• Operating Temperature: 0°C–60°C

• Shipping Weight: 4 kg

• Required External Termination Panel (ETP) for field wiring connections

Applications

The Triconex 3703E is widely applied in environments demanding high reliability and fault tolerance:

• Emergency Shutdown (ESD) Systems in oil and gas

• Burner Management Systems (BMS) for industrial boilers

• Fire and Gas (F&G) Monitoring

• Nuclear Safety Control Systems

FAQ

Q: Can the module be replaced without shutting down the system?
A: Yes, the 3703E supports hot-swap replacement while maintaining TMR safety logic.

Q: Is it compatible with legacy 120V AC/DC field signals?
A: Yes, the module is designed to handle 90–155 V AC/DC signals with full isolation.

Q: What level of safety integrity does it support?
A: Suitable for SIL 3 applications in safety-instrumented systems.

Q: How are the input channels isolated?
A: Each of the 32 channels is optically isolated from one another and from internal logic to prevent electrical noise interference.
