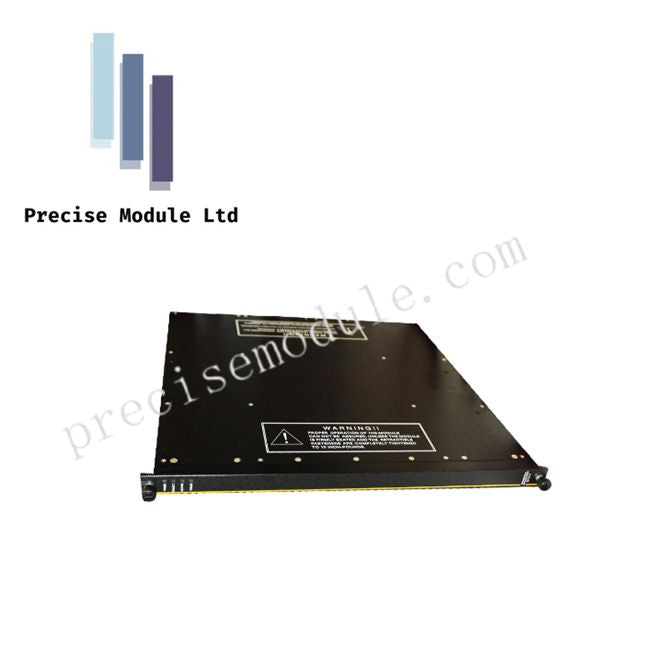

Schneider Electric Triconex 3721 Analog Input Module | TMR Safety

Product Description

Overview

The 3721 by Schneider Electric (Triconex series) is a high-integrity Analog Input Module engineered for critical process control and Safety Instrumented Systems (SIS). Designed for use with Tricon v9 to v11 systems, this module provides 32 isolated differential input channels for precise voltage measurement, delivering the reliability required in high-availability industrial applications. Its architecture incorporates Triple Modular Redundancy (TMR) to ensure uninterrupted operation even in the event of a hardware failure.

Key Features

Triple Modular Redundancy (TMR) Architecture

• Each input channel is processed independently through three parallel circuits (A, B, C).

• A Two-out-of-Three (2oo3) voting logic determines the correct signal, safeguarding against single-point failures and maintaining system integrity.

High-Precision Analog Measurement

• Supports voltage ranges of 0–5 VDC and -5 to +5 VDC with ±6% tolerance.

• Programmable resolution up to 14-bit ensures accurate monitoring of temperature, pressure, and flow sensors.

Comprehensive Diagnostics

• Continuous self-testing identifies open/short circuits, calibration drift, and internal discrepancies.

• Fault detection is communicated via the module’s LED indicators and the Tricon system interface, allowing targeted maintenance without disrupting operations.

Robust Isolation and Protection

• Provides channel-to-channel and channel-to-ground galvanic isolation.

• Input overrange protection supports 150 VDC / 115 VAC continuous, preventing damage from unexpected voltage spikes.

Hot-Swappable Design

• Allows online replacement of a failed module via adjacent “Hot Spare” slots.

• Automatic data synchronization ensures the process remains uninterrupted during maintenance.

Technical Specifications

Applications

• Safety-critical control loops in chemical, power, and oil & gas plants.

• Integration with Triconex TMR systems for high-availability and fault-tolerant analog measurement.

• Use with external Termination Panels (ETP) or signal conditioners for current (4–20 mA) inputs.

FAQ

Q: Can the 3721 handle current inputs?
A: Yes, but an external Termination Panel or signal conditioner is required to convert 4–20 mA signals to voltage.

Q: Is this module compatible with all Tricon versions?
A: Compatible with Tricon v10.2 and later. Earlier versions should be verified for firmware support.

Q: How does the system respond to a module fault?
A: The TMR architecture ensures continuous operation; faults are logged and indicated via LEDs and the Tricon system interface.

Q: Can the module be replaced without shutting down the system?
A: Yes, hot-swappable design allows online replacement using a “Hot Spare” slot.
