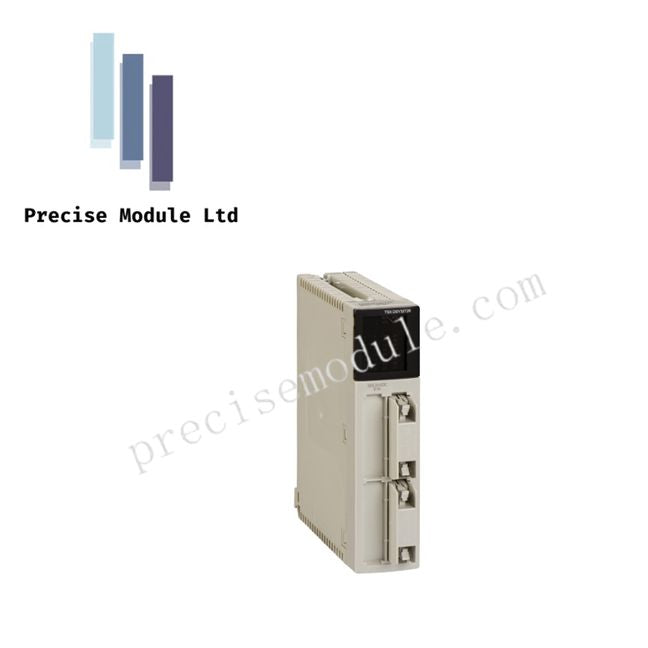

Schneider Electric TSXDSY32T2K Discrete Output Module | Premium PLC

Schneider Electric TSXDSY32T2K Discrete Output Module | Premium PLC

  • Manufacturer: Schneider

  • Product No.: TSXDSY32T2K

  • Condition：in Stock

  • Product Type: TSXDSY32T2K

  • Product Origin: France

  • Payment:T/T, Western Union

  • Weight: 0g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

  • Product Description

    Overview

    The Schneider Electric Modicon TSXDSY32T2K is a compact, high-density discrete output module engineered for the Modicon Premium PLC family. It provides 32 solid-state output channels capable of driving actuators, relays, and indicators with precise and reliable performance. Designed for industrial environments that demand rapid switching and robust protection, this module combines high-speed response with advanced electrical safeguards.

    Featuring a single-slot format and HE10 connector interface, the TSXDSY32T2K supports streamlined integration into high-channel-count systems while maintaining compatibility with Schneider’s Telefast pre-wired connection sub-bases.

    Key Features

    • 32 independent transistor (source) outputs for DC loads

    • Positive logic, current-sourcing outputs at 24V DC

    • Single-slot module design with HE10 (40-pin) connector

    • High-speed response time <1.2 ms for dynamic control

    • Integrated protection: short-circuit, overload, reverse polarity, and overvoltage

    • Low leakage current (<0.1 mA) for reliable OFF-state operation

    • Front panel LED indicators for each output channel

    • Galvanic isolation 1500 Vrms between field and PLC bus

    Technical Specifications

    Feature Specification
    Model Number TSXDSY32T2K
    Platform Modicon Premium PLC
    Output Type Transistor, Current-Sourcing (Logic Positive)
    Rated Voltage 24 V DC
    Voltage Range 19–30 V DC
    Number of Outputs 32 Channels
    Output Current per Channel 0.1 A
    Maximum Module Current 3.2 A
    Leakage Current <0.1 mA
    Switching Time <1.2 ms (typical <0.2 ms)
    Power Dissipation 1.6 W + 0.1 W per active output
    Connection Type HE10 Connector (40-pin)
    Module Format Standard Single-Slot
    Dimensions 26 × 18 × 5.5 cm
    Weight 0.3 kg
    Insulation Resistance >10 MΩ at 500 V DC
    Operating Temperature 0°C to +60°C

    Applications

    • Driving solenoids, relays, and indicator lamps in compact machinery

    • Packaging and assembly lines requiring high-speed switching

    • Signal actuation for distributed PLC racks with limited space

    • Replacement or expansion of Modicon Premium discrete output networks

    FAQ

    Q: What is the operational voltage of the TSXDSY32T2K?
    A: Nominal 24V DC with a safe operating range of 19–30V DC.

    Q: How fast does the module respond to control signals?
    A: The module typically switches in <0.2 ms, with a maximum of 1.2 ms.

    Q: Are outputs protected against electrical faults?
    A: Yes, it includes short-circuit, overload, reverse polarity, and overvoltage protection.

    Q: Can outputs be paralleled?
    A: Yes, up to three outputs may be connected in parallel.

    Q: How should field wiring be connected?
    A: Use Schneider’s Telefast sub-base system to interface the HE10 connector with standard screw terminals.

    Q: Is the module energy-efficient?
    A: Yes, with low leakage current and optimized power dissipation per channel.
