Schneider Electric TSXRKY12 12-Slot Premium PLC Rack | Backplane

Product Description

Overview

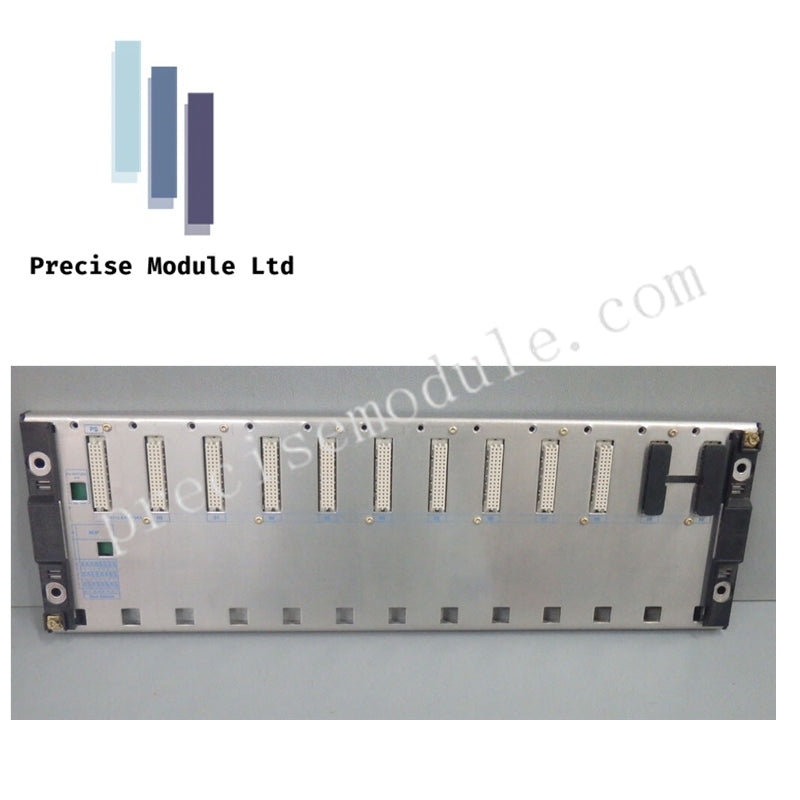

The Schneider Electric Modicon TSXRKY12 is a 12-slot standard backplane designed for the Modicon Premium PLC platform. It forms the structural and electrical backbone of a PLC station, providing secure communication pathways and power distribution for processors, I/O modules, and power supplies. Engineered for compact single-rack configurations, the TSXRKY12 ensures high reliability in industrial environments with demanding electrical and mechanical requirements.

This backplane supports Bus X communication for fast, low-latency data transfer between the CPU and connected modules. Its robust metal frame and high-quality connectors maintain stable operation even under vibration and electrical noise conditions.

Key Features

• Supports up to 12 Modicon Premium modules in a single rack

• Integrated Bus X architecture for high-speed inter-module communication

• Automatic slot-based addressing of modules for simplified setup

• Distributes both 5V logic and 24V auxiliary power throughout the rack

• Secure mechanical retention with top locking screws and pivoting bottom hooks

• EMC protection and grounded connections for stable operation in electrically noisy environments

• DIN rail or panel mounting options for flexible installation

Technical Specifications

Applications

• Single-rack Modicon Premium PLC configurations for compact machinery

• Industrial automation requiring robust inter-module communication

• High-reliability environments where vibration and electrical noise are concerns

• PLC stations with mixed I/O, analog, communication, and processor modules

FAQ

Q: How many modules can the TSXRKY12 accommodate?
A: Up to 12 modules, including CPU, power supply, and I/O modules.

Q: What type of communication bus does the rack use?
A: Proprietary Bus X architecture for high-speed parallel communication.

Q: Can it be mounted on a DIN rail?
A: Yes, it can be installed on a 35 mm DIN rail or directly on a panel using M6 screws.

Q: Is the backplane protected against electrical noise?
A: Yes, it features EMC protection and integrated grounding for each slot.

Q: What is the operating temperature range?
A: 0°C to +60°C, with storage temperatures from -25°C to +70°C.

Q: Does it support all Modicon Premium modules?
A: Yes, the rack is compatible with CPU, I/O, communication, and power supply modules.
