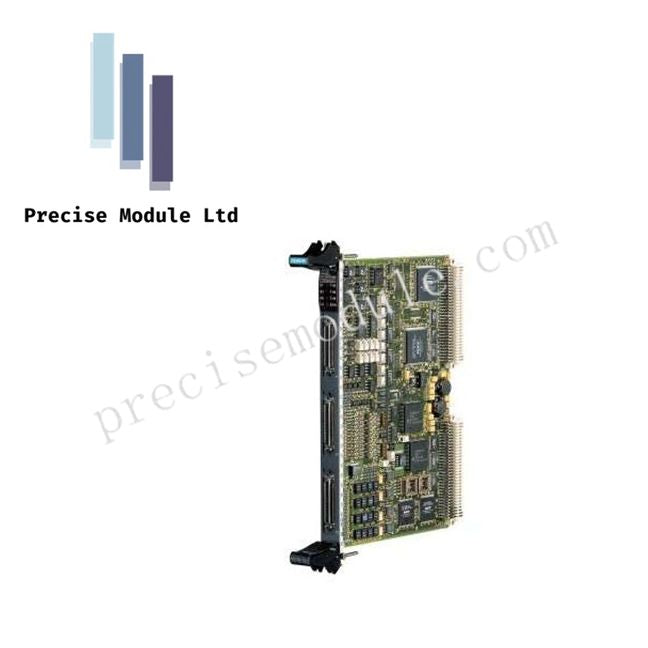

SIEMENS 6DD1640-0AH0 | SIMADYN D / SIMATIC TDC Pulse Resistor Module

Product Overview

The SIEMENS 6DD1640-0AH0 is a high-performance Pulse Resistor Module engineered for SIMADYN D and SIMATIC TDC drive control systems. It provides precise termination, impedance matching, and signal conditioning for high-speed analog and digital signals in industrial drive and automation applications.

Designed for subrack installation, this module ensures optimal signal integrity in encoder feedback loops, pulse-width modulation circuits, and high-speed closed-loop control systems. Its rugged design guarantees reliability in continuous operation environments such as power plants, heavy industrial drives, and large-scale automation systems.

Key Features

High-Speed Pulse Signal Accuracy
Maintains sharp rising and falling edges for pulse trains, critical for precise motor positioning, high-resolution encoder feedback, and fast-response drive control.

Thermal Stability and Passive Cooling
Optimized for subrack airflow, this resistor module maintains consistent performance even under temperature fluctuations and continuous electrical load conditions.

Advanced Signal Conditioning
Acts as a terminator and voltage level adapter, reducing signal reflections and dampening high-frequency noise to prevent false pulse detection.

Industrial-Grade Reliability
Built for continuous operation in mission-critical environments. Features high immunity to electromagnetic interference (EMI) and high MTBF for demanding industrial and utility applications.

Secure Subrack Integration
Eurocard form factor allows for vibration-resistant installation in standard Siemens subracks such as UR5213, ensuring mechanical stability over long-term operation.

Technical Specifications

Applications

• Precision motor control and high-speed drives

• Power plant automation and energy distribution systems

• Encoder signal termination for feedback loops

• High-speed pulse signal networks in industrial automation

Maintenance Notes

• Inspect wiring for thermal stress before installation.

• Ensure subrack cooling is functional to prevent localized overheating.

• Verify the module’s resistive values match system impedance if used for termination.

FAQ

Q: What is the main purpose of the 6DD1640-0AH0 module?
A: It provides termination, impedance matching, and signal conditioning for high-speed pulses in SIMADYN D / SIMATIC TDC systems.

Q: Which subracks are compatible?
A: Compatible with standard Siemens subracks such as UR5213.

Q: Can it operate in high-temperature environments?
A: Yes, it is designed to maintain performance from -10°C to +55°C with passive cooling.

Q: Does it handle encoder and PWM signals?
A: Yes, it is suitable for both pulse-width modulation signals and encoder feedback loops.
