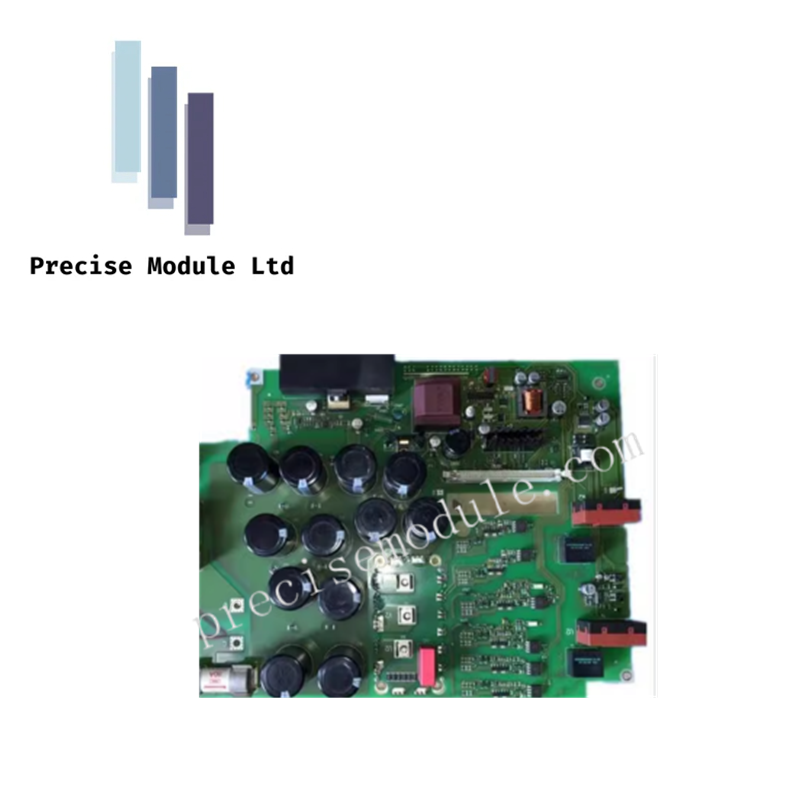

Siemens 6SE7023-4TC84-1HF3 Inverter Drive Board

Technical Overview

The 6SE7023-4TC84-1HF3 is a high-performance inverter drive board specifically engineered for the Siemens SIMOVERT MASTERDRIVES series. This unit is designed to provide high-precision control over three-phase AC motors in demanding industrial environments. By managing the variable frequency and voltage output, the 6SE7023-4TC84-1HF3 allows for exact manipulation of motor speed, torque, and rotational direction. Its robust, rack-mounted architecture is built to withstand the electrical noise and thermal stresses typical of heavy manufacturing, ensuring high efficiency and long-term system stability in automated drive lineups.

Detailed Technical Specifications

The following parameters define the electrical capacity and physical profile of the 6SE7023-4TC84-1HF3:

• Manufacturer: Siemens (Automation & Drives)

• Model Number: 6SE7023-4TC84-1HF3

• Series Platform: SIMOVERT MASTERDRIVES (Vector Control / Motion Control)

• Function: AC Inverter Drive Board / Power Stage

• Input Voltage (DC Bus): 510 V to 620 V DC

• Rated Input Current: 34 A (Nominal)

• Motor Power Rating: Optimized for AC motors up to 15 kW (20 HP)

• Control Method: Pulse Width Modulation (PWM) for variable speed control

• Mounting Configuration: Integrated rack-mount design

• Protection Class: Industrial-grade for harsh ambient conditions

• Physical Dimensions: 23 cm (W) x 50 cm (H) x 46 cm (D)

• Unit Weight: 5.25 lbs (approx. 2.38 kg)

System Integration and Performance

As a core component of the MASTERDRIVES ecosystem, the 6SE7023-4TC84-1HF3 interfaces directly with the DC link bus of a common-bus drive system or a stand-alone rectifier unit. It is frequently utilized in applications such as conveyor systems, high-speed fans, and industrial pumps where energy efficiency and precise mechanical control are mandatory. The board's internal circuitry includes high-speed IGBT switching and integrated thermal monitoring, which protects the power stage from overcurrent and overtemperature conditions, significantly reducing the risk of catastrophic drive failure.

Technical FAQ

Is this board compatible with both Vector Control (VC) and Motion Control (MC) systems? Yes. The 6SE7023-4TC84-1HF3 is part of the power section hardware. While the control logic (VC or MC) is determined by the inserted CU (Control Unit) board, this inverter board provides the raw power switching necessary for either control philosophy.
