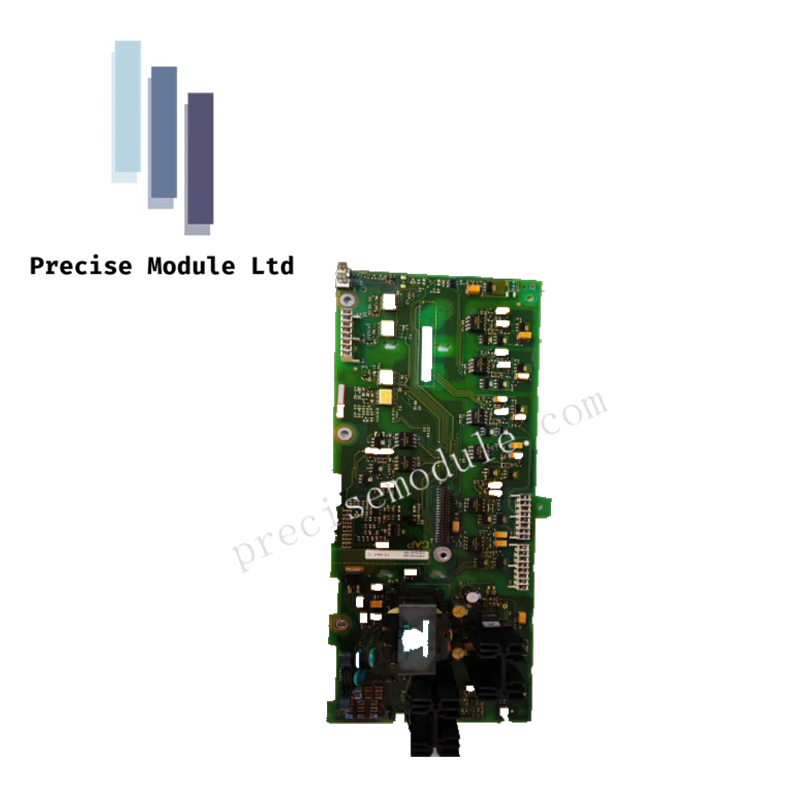

Siemens A5E00301347 Power Driver Board

Product Description

The Siemens A5E00301347 is a high-performance Power Driver Board engineered for the SINAMICS drive family. As a critical component in Siemens variable frequency drive (VFD) systems, this board is responsible for the precise gate-driving signals that manage power flow to the motor. It is a staple in modern manufacturing, heavy processing, and high-speed motion control environments where energy efficiency and pinpoint torque control are non-negotiable.

Designed for global industrial standards, the A5E00301347 operates within a wide voltage range of 380-480V AC and features an ultra-robust 100 kA short-circuit current rating (UL 508C). Its compact footprint is optimized for dense control cabinets, while the high-grade German engineering ensures continuous, reliable operation even in extreme temperatures. Whether you are performing a system upgrade or an urgent repair, this driver board offers seamless integration into the Siemens TIA (Totally Integrated Automation) ecosystem.

Technical Specifications

• Manufacturer: Siemens

• Part Number: A5E00301347

• Series: SINAMICS Drive Family

• Product Type: Power Driver / Gate Driver Board

• Electrical Ratings:

• Main Voltage: 380–480V AC ($\pm$10%)

• Frequency Range: 47–63 Hz

• Control Power Supply: 24V DC ($\pm$15–20%)

• Short-Circuit Rating: Up to 100 kA (UL 508C compliant)

• Environmental & Safety:

• Protection Class: IP20 (EN 60529)

• Operating Temperature: -25°C to +55°C (-13°F to +131°F)

• Humidity: 5% to 95% RH (Non-condensing)

• Max Altitude: 1000 m (Above sea level without derating)

• Mechanical Details:

• Dimensions: 15.3 cm x 7.4 cm x 10 cm

• Weight: Approx. 0.3 kg (300g)

• Compliance: CE and RoHS Certified

• Country of Origin: Germany

Application Scenarios

The A5E00301347 is widely utilized in sophisticated drive architectures:

• Automotive Manufacturing: Driving precision robotics and conveyor synchronized motion.

• Food & Beverage: Managing high-speed centrifugal pumps and bottling line motors.

• Textile Industry: Controlling winding and tensioning motors where smooth torque is required.

• HVAC Systems: Operating large-scale industrial fans and chillers within the SINAMICS ecosystem.

• Emergency Maintenance: A critical spare part for restoring functionality to SINAMICS power modules.
