Product Description

Overview

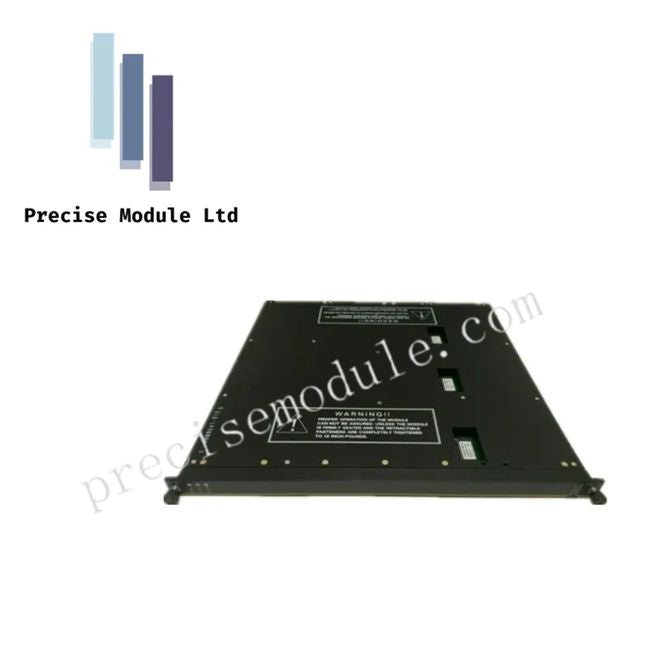

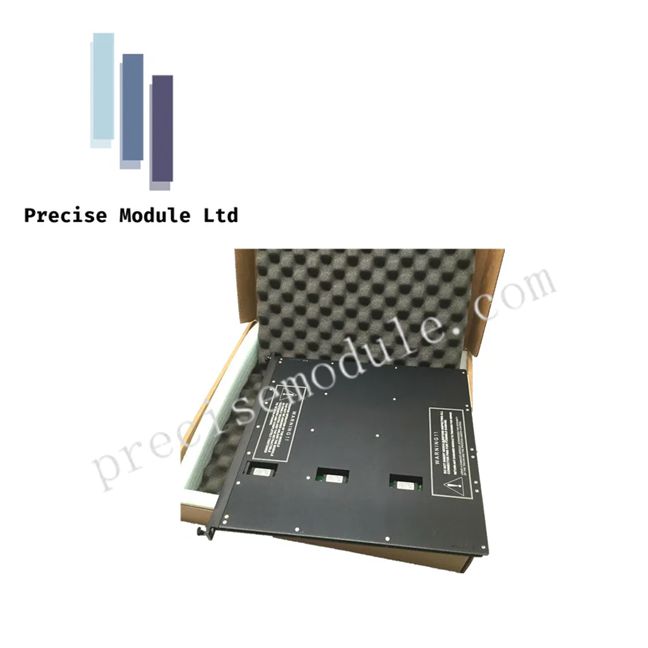

The Triconex 3700A is a high-density Analog Input (AI) module engineered for critical Safety Instrumented Systems (SIS). Built on the Triple Modular Redundant (TMR) platform, it provides reliable, fault-tolerant monitoring of process variables such as pressure, temperature, flow, and level. The module delivers precise, stable acquisition from field sensors, making it ideal for oil and gas, petrochemical, and power generation environments.

Architecture and Design

3700A incorporates three independent processing legs. Each leg evaluates every input signal, and a 2-out-of-3 (2oo3) hardware vote ensures data integrity. The module offers full galvanic isolation between channels and between the field and system logic, reducing noise, preventing ground loops, and ensuring signal fidelity.

Performance Highlights

Triple Modular Redundancy (TMR)

• Maintains accurate operation despite a single component failure in any leg

• Continuous cross-checking and self-diagnostics detect latent faults

• Supports hot-swappable installation for non-disruptive maintenance

High-Density Input Capability

• 32 differential isolated channels per module

• Converts 4–20 mA signals to 0–5 VDC using an external Termination Assembly (TA) with precision 250-ohm resistors

• Differential isolation ensures excellent common-mode noise rejection

Precision and Reliability

• 12-bit resolution for high-fidelity digital representation

• Accuracy < 0.15% FSR across 0–5 VDC

• Rapid scan rate optimized for critical trip logic and control loops

Advanced Diagnostics

• Continuous “force-to-value” self-tests on each leg

• Front panel LEDs indicate module health and operational status: PASS, FAULT, ACTIVE

• Real-time channel monitoring for fast fault detection

Technical Specifications

Key Applications

The 3700A is ideal for monitoring voltage-input sensors and high-precision field devices in SIS environments. For systems using 4–20 mA sensors, it is paired with a Termination Assembly to convert current to voltage, enabling compatibility with the 0–5 VDC input range. Its robust design ensures reliable operation in harsh conditions, including vibration, EMI, and extreme temperatures.

FAQ

Q: Can the 3700A operate in systems using 4–20 mA sensors?
A: Yes, when used with a Termination Assembly with precision 250-ohm resistors.

Q: How many channels can one module monitor?
A: The module supports 32 differential isolated channels in a single slot.

Q: Is the 3700A hot-swappable?
A: Yes, it allows non-disruptive replacement in redundant configurations.

Q: What level of accuracy can be expected?
A: Typical accuracy is better than 0.15% FSR across the 0–5 VDC input range.
