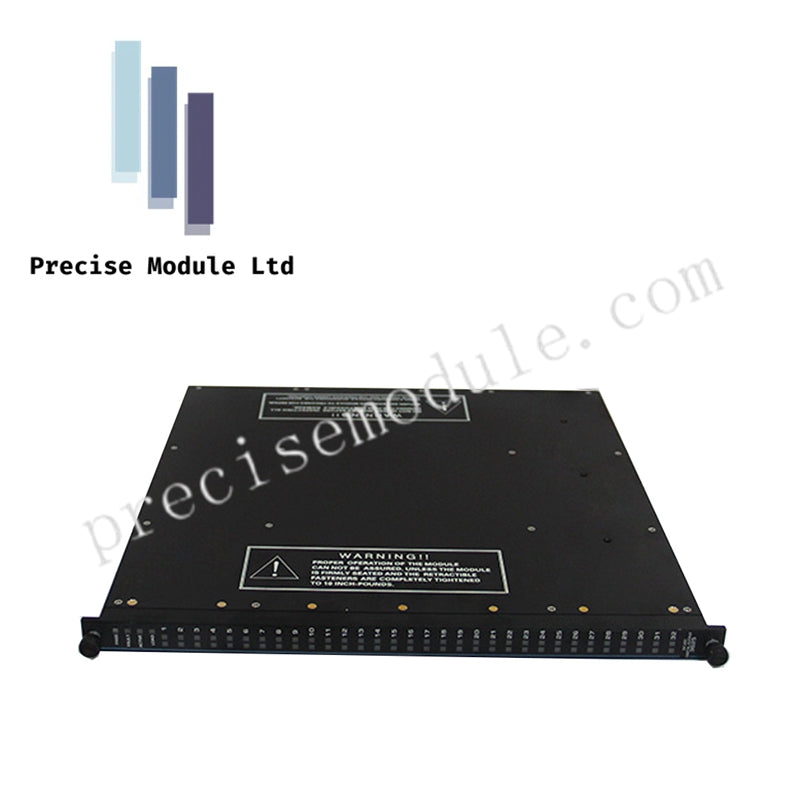

Triconex 3805H High-Density Analog Output Module | TMR Safety System | 8 Channels | SIL 3

Shopify Product Title:

Triconex 3805H High-Density Analog Output Module | TMR Safety System | 8 Channels | SIL 3

Product Description:

The Triconex 3805H is a High-Density Analog Output (AO) Module designed for use with the Tricon Triple Modular Redundant (TMR) safety system. This module is essential in high-reliability industrial applications, including Emergency Shutdown (ESD), Fire and Gas (F&G), and Burner Management Systems (BMS). As part of the TMR architecture, the 3805H ensures fault tolerance by utilizing a triple redundancy system that guarantees no loss of control or accidental trips even in the event of hardware failure, providing SIL 3 (Safety Integrity Level 3) certification for safety-critical operations.

The module offers 8 isolated analog output channels, each with triplicated internal components (A, B, and C). These channels receive data from the Main Processors, convert it to analog signals, and use a hardware-level voting mechanism to ensure that any faulty signals are automatically corrected by the remaining two branches. This continuous "voting" process ensures that field devices, such as control valves or turbine governors, always receive the correct 4-20 mA signal without interruption.

Technical Specifications:

Key Features & Functions:

1. Advanced Voting Mechanism:
   The 3805H module features an advanced current-summing or hardware voting circuit. The internal triplicated channels (A, B, and C) are constantly monitored and compared in real-time. This provides high-speed fault detection and correction at the hardware level, ensuring reliable signal output for critical actuators.

2. Comprehensive Self-Diagnostics:
   The 3805H includes extensive self-diagnostic capabilities to ensure system integrity:

• Loop-back Sensing: Continuously checks the current flowing through the field loop, comparing it to the commanded value to detect discrepancies.

• Open-Loop Detection: Immediately alarms if there is a break or fault in the field wiring, ensuring early detection of issues that could affect control operations.

• Short-Circuit Protection: Provides protection to the module from any electrical faults on the field-side wiring.

3. Hot-Swappable Design:
   The 3805H module supports hot-swapping, meaning it can be replaced without shutting down the system or interrupting ongoing processes. By utilizing a "Hot Spare" slot, the system automatically shifts control to the new module, ensuring zero downtime during maintenance.

4. High-Performance Design ("H" Suffix):
   The "H" suffix indicates that this module is high-density with enhanced diagnostic capabilities, offering superior performance compared to older analog output modules. It is optimized for use with the Tricon V9 and V10 systems for modern industrial applications requiring high reliability.

Front Panel Indicators (LEDs):

• PASS (Green): Indicates the module has passed all diagnostics during power-up and runtime.

• FAULT (Red): Indicates a failure within one of the three internal channels, signaling that the module has detected a fault in its operation.

• ACTIVE (Yellow): Shows that the module is actively controlling the field outputs.

• LOAD (Red): Indicates an issue with the field wiring, such as an open loop or high resistance.

Application Context:

The Triconex 3805H is designed for mission-critical applications where high safety standards are a must. It is commonly used in industries like oil and gas, chemical processing, power generation, and other areas that require fault-tolerant control systems. Its integration into the Tricon TMR safety system provides unmatched reliability for controlling actuators, such as control valves, turbine governors, and safety systems, especially in high-risk environments where safety is paramount.
