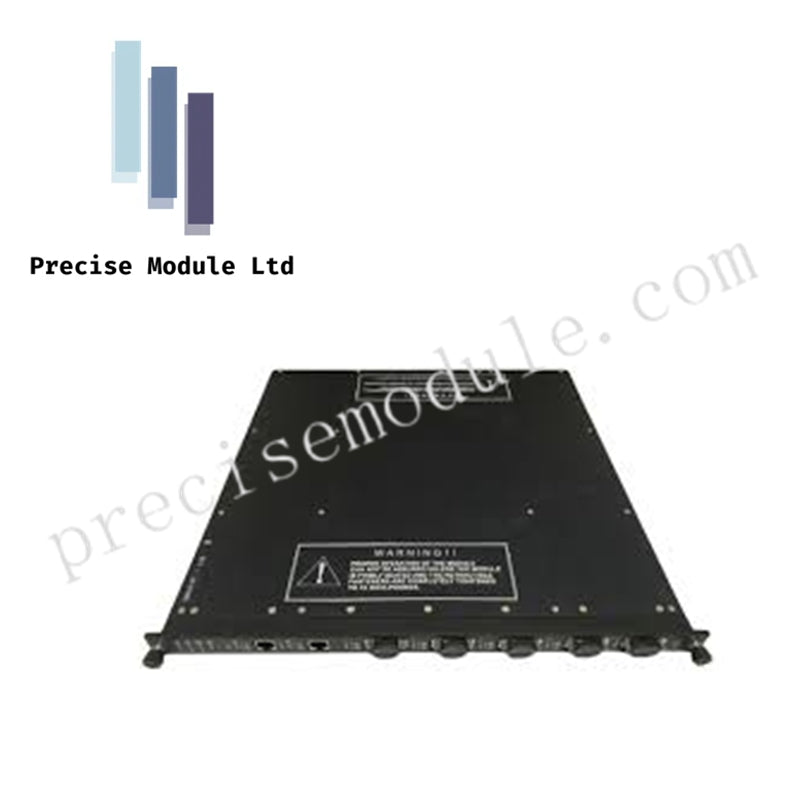

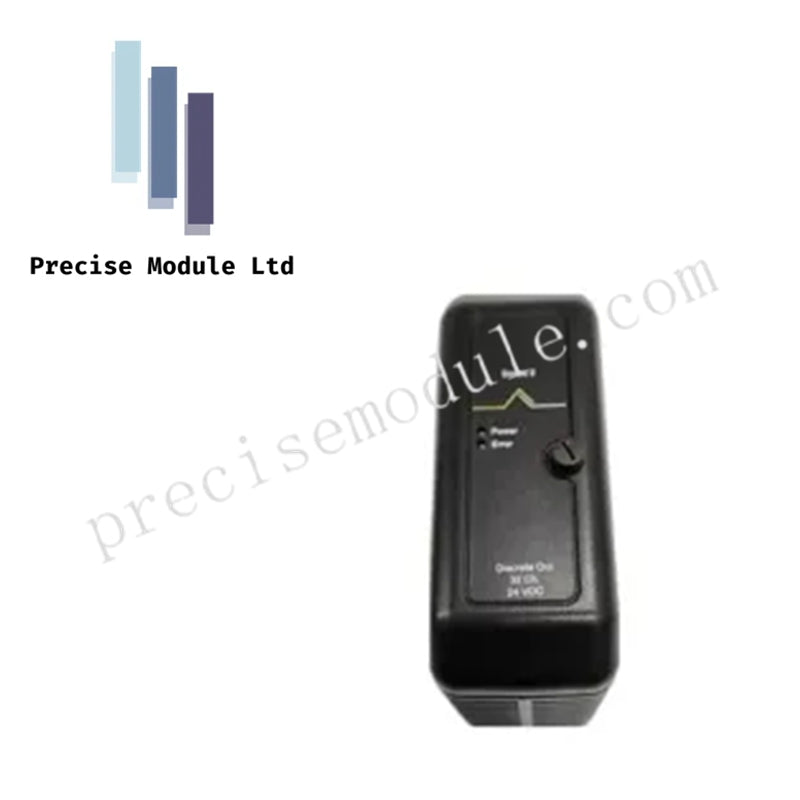

Triconex DI3311 Digital Input Module | 24 Vdc | 32 Channels | TMR Redundancy

Shopify Product Title:
Triconex DI3311 | 24 Vdc Digital Input Module | 32 Isolated Channels | TMR Redundancy | Fault-Tolerant Control Systems

Product Description

The Triconex DI3311 is a high-density Digital Input (DI) Module designed for use in Tricon Fault-Tolerant Control Systems (v9-v11). A critical component in safety-critical applications such as Emergency Shutdown (ESD), Fire and Gas (F&G), and Burner Management Systems (BMS), the DI3311 ensures reliable and fault-tolerant operation by utilizing Triple Modular Redundancy (TMR). This advanced redundancy technique provides 100% error detection and maximizes system availability in mission-critical environments.

Key Technical Specifications

• Model Number:
  DI3311

• Input Type:

• Digital, 24 Vdc, Commoned or Isolated

• Number of Channels:

• 32 isolated channels

• Voltage Range:

• 15 Vdc to 30 Vdc

• Point Isolation:

• 1500 Vdc (minimum)

• Input Resistance:

• Approximately 3.0 kΩ

• Input Filter:

• 1 ms (minimum) to 25 ms (maximum)

• Power Consumption:

• Less than 10 Watts (nominal)

• Self-Test Interval:

• 2 seconds (typical)

• Redundancy Type:

• TMR (Triple Modular Redundancy)

Key Features

• Triple Modular Redundancy (TMR):
  The DI3311 employs three independent internal microprocessors and sensing circuits that analyze every input. A 2-out-of-3 vote determines the final input state, ensuring that even if one leg fails, the system continues to function safely without triggering nuisance trips.

• Continuous Self-Diagnostics:
  Performs continuous hot tests on its internal circuits to detect faults like "stuck-at" conditions or leakage, without disrupting the process signal or operation.

• Hot-Swappable:
  The module can be replaced while the system is running ("Online") without interrupting the process, as long as a healthy redundant module is in place. This feature is crucial for minimizing downtime in critical systems.

• Sequence of Events (SOE):
  Supports millisecond-level time-stamping of state changes, which is essential for post-incident trip analysis and accurate event tracking.

• Status Indicators:
  Front-panel LED indicators provide immediate visual feedback:

• PASS: The module is healthy and operational.

• FAULT: An internal hardware failure has been detected.

• ACTIVE: The module is currently controlling the I/O bus.

Installation & Termination

• External Termination Assembly (ETA):
  The DI3311 module requires a corresponding External Termination Assembly (ETA).

• Field wiring connects to the ETA terminal blocks, and an interface cable connects the ETA to the backplane of the Tricon rack where the module is seated.

• Commoning:
  The module supports various wiring schemes, including redundant power sources for field sensors, ensuring flexible and reliable installation.

Common Applications

• Emergency Shutdown (ESD):
  Monitoring critical inputs such as pushbuttons, level switches, and pressure switches to trigger emergency shutdown actions.

• Fire & Gas (F&G):
  Receiving signals from flame detectors, gas sniffers, and other safety devices in hazardous environments.

• Turbo-machinery Protection:
  Monitoring discrete states from critical machinery like turbines and compressors to prevent catastrophic failure.

Technical Note:

If the "FAULT" LED is illuminated but the process continues to run, it indicates that the TMR architecture has successfully masked a single-leg failure. However, the DI3311 should be replaced immediately to restore full fault tolerance and ensure system reliability.

FAQ

What is the function of the DI3311 module in the Tricon system?

The DI3311 is used to monitor and process digital input signals in safety-critical applications, such as ESD, F&G, and BMS systems. It ensures reliable, fault-tolerant operation by using Triple Modular Redundancy (TMR).

What does Triple Modular Redundancy (TMR) mean?

TMR means that each input is processed by three independent branches within the module. A 2-out-of-3 vote determines the final state, providing fault tolerance and ensuring the system continues to function even if one branch fails.

Can the DI3311 be replaced without shutting down the system?

Yes, the DI3311 is hot-swappable, meaning it can be replaced while the system is running, provided there is a healthy redundant module in place.

What is the purpose of the Sequence of Events (SOE) feature?

The SOE feature enables precise time-stamping of input state changes, which is essential for accurate post-incident analysis and understanding the sequence of events leading up to an alarm or trip condition.
