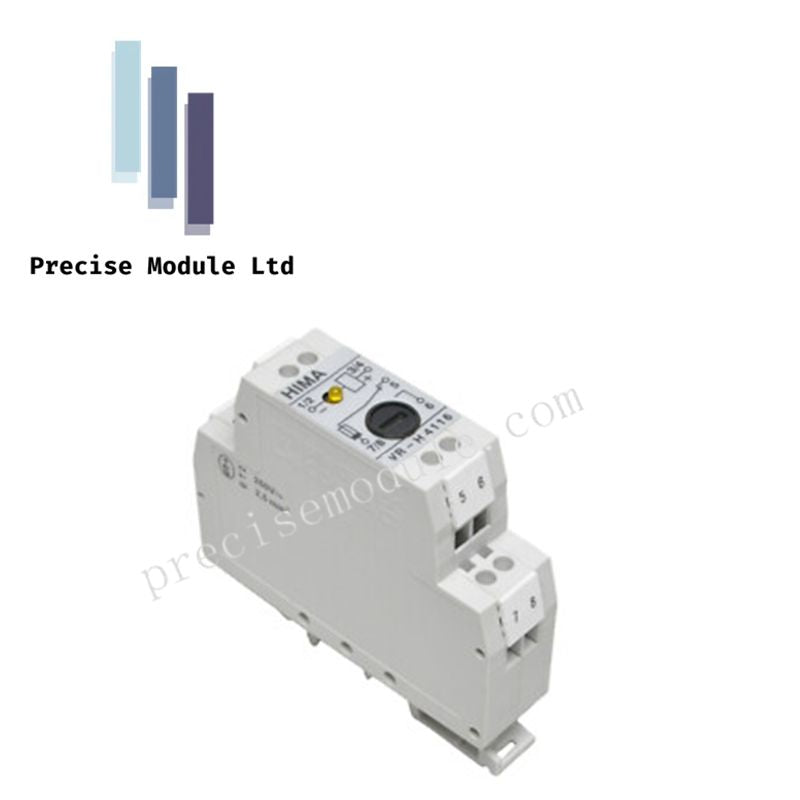

VR-H4116 | HIMA |Safety Relay Module

VR-H4116 | HIMA |Safety Relay Module

  • Manufacturer: HIMA

  • Product No.: VR-H4116

  • Condition：in Stock

  • Product Type: Safety Relay Module

  • Product Origin: Germany

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

HIMA VR-H4116 Safety Relay Module – SIL 2, Compact Design

Overview

The HIMA VR-H4116 is a safety relay module engineered for reliable fail-safe switching in HIMax and HIMatrix systems. Designed for SIL 2 compliance, it offers a sealed change-over contact with high durability, ensuring dependable performance in emergency shutdown, fire and gas protection, and process automation applications.

Its robust housing, fast response time of 7 ms, and wide operating temperature range make the VR-H4116 a trusted choice for harsh industrial environments. With CE, FCC, and ATEX Zone 2 certifications, it guarantees compliance with strict international safety standards.

Key Features & Specifications

Feature Specification
Model Number VR-H4116
Manufacturer HIMA
Product Type Safety Relay Module
Input Voltage 24 VDC (–15% to +20%)
Current Consumption 20 mA
Output Contact 1 sealed, potential-free change-over relay
Switching Voltage ≥ 1 mV to ≤ 250 VAC/VDC
Switching Current ≥ 1 mA to ≤ 4 A
Switching Capacity AC: ≤ 1000 VA (cos φ > 0.5)
DC: ≤ 120 W @ 30 V, ≤ 40 W @ 250 V
Response Time Approx. 7 ms
Reset Time Approx. 5 ms
Fuse Rating 4 A time-lag (replaceable)
Contact Material AgNi, hard gold plated
Bounce Time Approx. 1 ms
Electrical Lifetime ≥ 250,000 operations (at rated load)
Mechanical Lifetime ≥ 10 million operations
Dimensions (H × W × D) 80 mm × 20 mm × 70.5 mm (DIN rail)
Weight Approx. 0.3 kg
Mounting Type 35 mm DIN rail or C rail (horizontal/vertical)
Wire Gauge 0.25–2.5 mm² (AWG 14)
Protection Class IP20 (IEC/EN 60529)
Operating Temperature −25°C to +50°C
Storage Temperature −40°C to +85°C
Humidity 5–95% RH (non-condensing)
Vibration Resistance 0.7 g (13.2–150 Hz)
Shock Resistance 10 g (11 ms half-sine)
Pollution Degree 2
Safety Certification SIL 2 (IEC 61508), ATEX Zone 2
EMC Compliance EN 61326-3-1 / EN 61326-3-2
Country of Origin Germany
