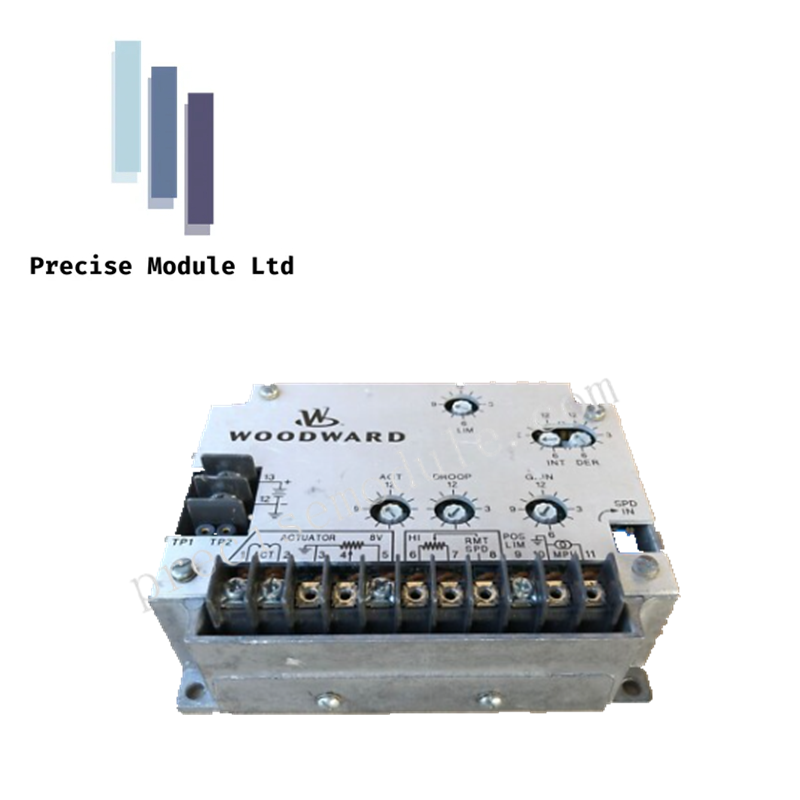

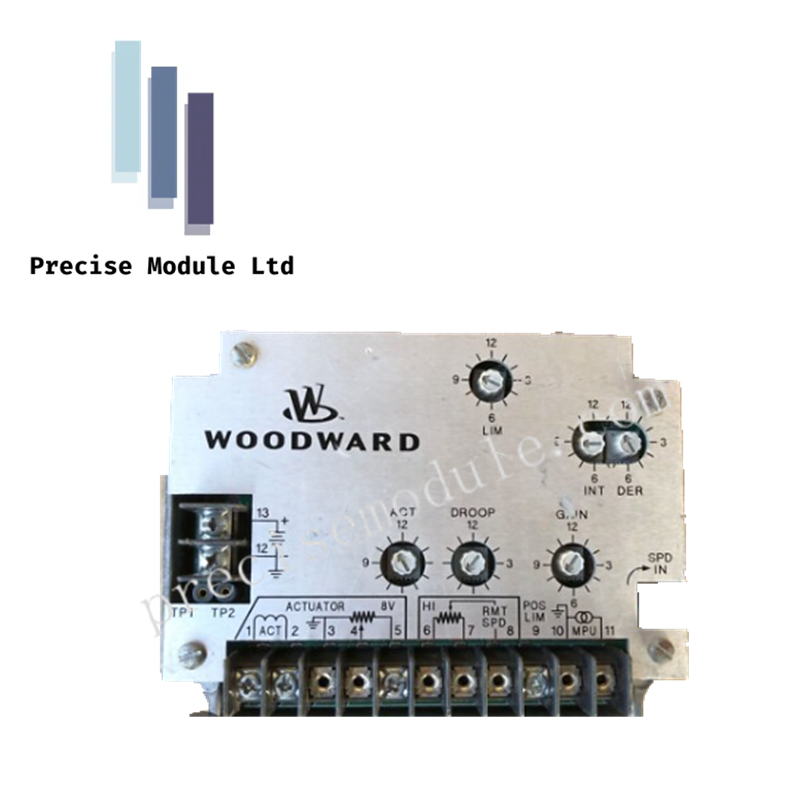

Woodward 8270-1060 Speed Controller

Technical Overview

The 8270-1060 is a high-precision electronic speed control unit from the Woodward DYNA Plus product family. Engineered for the rigorous demands of industrial engine management, this controller provides deterministic speed regulation by interfacing with electromagnetic pickups and actuators. The 8270-1060 is specifically designed to stabilize engine RPM under varying load conditions, preventing frequency fluctuations in power generation and mechanical drive applications.

Featuring a space-saving panel-mount architecture, the unit is easily integrated into existing control cabinets. It offers a high degree of field flexibility, allowing technicians to calibrate response times and gain settings to match the specific inertia and governor characteristics of the prime mover.

Detailed Technical Specifications

• System Type: Specialized speed controller for DYNA Plus engine management.

• Input Power Options: Compatible with 12V DC or 24V DC power systems for versatile deployment.

• Frequency Dynamics: Supports an operating frequency range from 2500 Hz to 5000 Hz for high-resolution speed sensing.

• Wiring Interface: Robust screw-clamp terminals for secure electrical connections in high-vibration environments.

• Thermal Endurance: Operational range from -10°C to +55°C; storage rated from -40°C to +70°C.

• Environmental Tolerance: Designed for 5% to 95% non-condensing humidity.

• Physical Dimensions: 12 in (W) x 6 in (H) x 6 in (D).

• Mass: 1.36 kg (1360g).

• Manufacturing Origin: USA.

Installation and Field Adjustments

The 8270-1060 is the preferred choice for engineers seeking a reliable, analog-based control solution that avoids the complexity of software-driven menus. Local potentiometers allow for the immediate tuning of stability, gain, and deadtime compensation. Because of its wide frequency sensing window, it is suitable for a variety of flywheel tooth counts and engine speeds, ensuring smooth governing from idle to full rated load.
