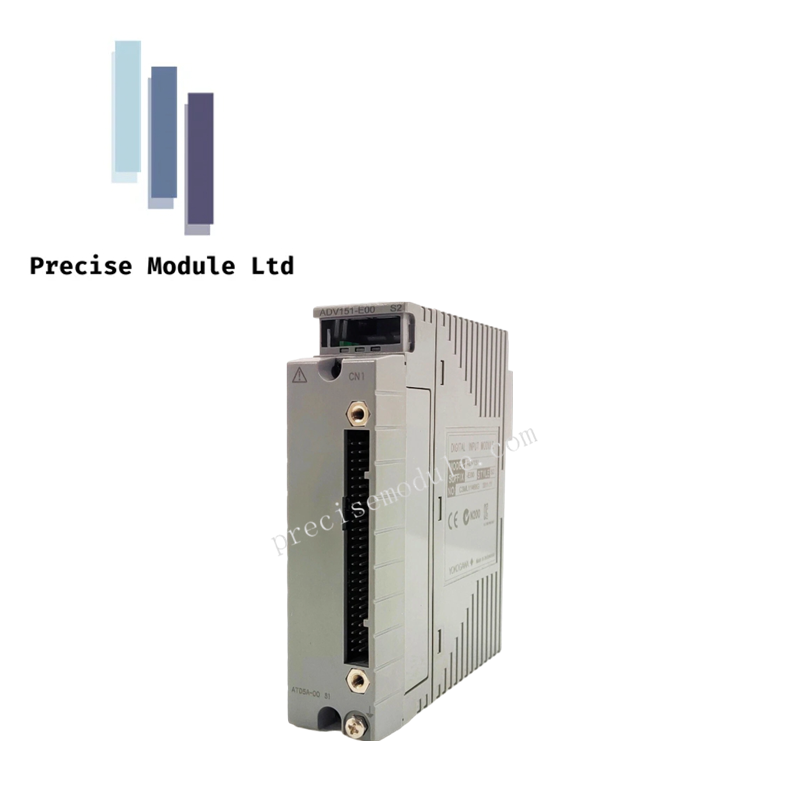

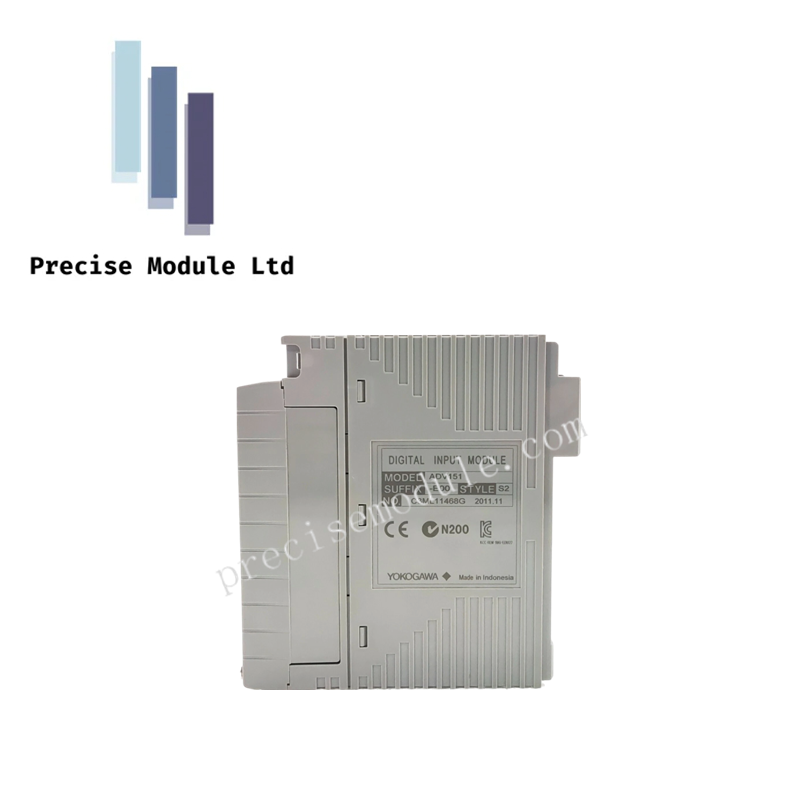

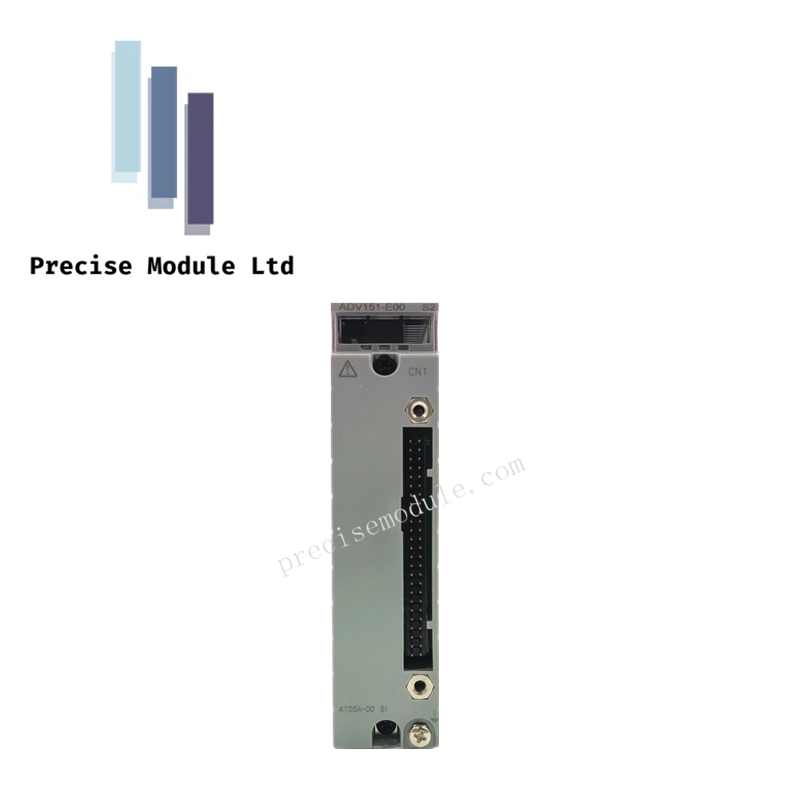

The Yokogawa ADV151-E00 S2 is a digital input module engineered for integration with Yokogawa’s CENTUM VP and ProSafe-RS control systems. It captures discrete signals from field devices like switches and sensors, ensuring fast response and robust diagnostics in industrial environments.
Specifications
Model Number: ADV151-E00 S2
Manufacturer: Yokogawa Electric Corporation
Input Channels: 16 digital inputs
Input Type: Voltage (dry contact or open collector)
Input Voltage Range: Nominal 24 V DC (18–32 V DC)
Input Impedance: Approximately 4.7 kΩ
Signal ON Threshold: ≥15 V DC
Signal OFF Threshold: ≤5 V DC
Isolation: Photocoupler isolation per channel
Power Consumption: Approx. 3.5 W
Response Time: Less than 5 ms
Hot Swap Capability: Supported
Operating Temperature: 0°C to 60°C
Dimensions: 107.5 × 130 × 32.8 mm
Weight: 0.3 kg
Features
High Reliability: Designed for mission-critical applications in petrochemical, power, water treatment, and pharmaceutical industries
Fast Diagnostics: Supports loop checks and channel testing for efficient troubleshooting
Electrical Isolation: Ensures safe operation in harsh environments
Compact Design: Slim profile for easy installation in control cabinets
Hot Swappable: Enables module replacement without system shutdown
Robust Performance: Maintains signal integrity under fluctuating voltage conditions
Global Compatibility: Certified for international shipping and compliance
