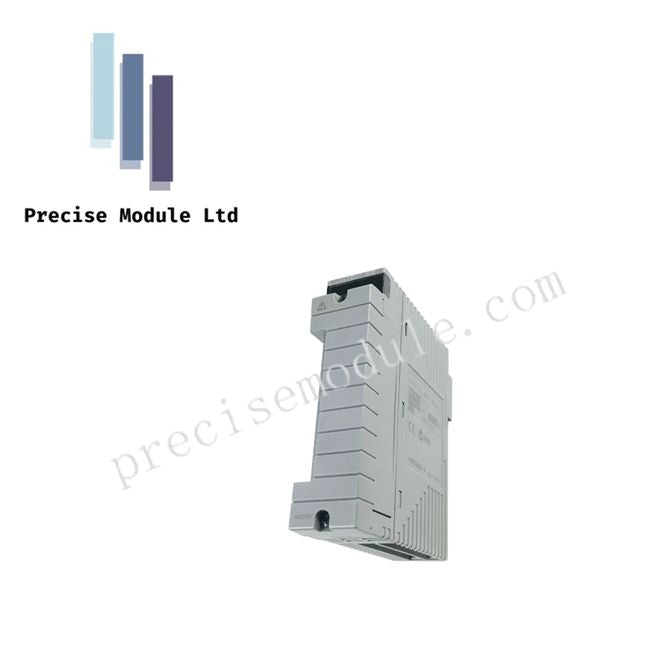

Yokogawa ADV151-P10 32-Channel Digital Input Module

Product Description

Overview

The ADV151-P10 is a 32-channel digital input module designed for the Yokogawa CENTUM VP and CENTUM CS 3000 control systems. It provides a robust interface between field devices—such as switches, contactors, and dry-contact sensors—and the control system, ensuring reliable signal acquisition even in demanding industrial environments.

This module is part of the FIO series, featuring compact design, high-density signal processing, and full electrical isolation between channels to protect the controller from field-side disturbances.

Key Features

High-Density Channel Configuration

• Supports 32 isolated digital inputs in a single-slot width, saving space in I/O cabinets without compromising performance.

• Compatible with 24 V DC dry-contact or voltage-free signals.

Electrical Isolation and Surge Protection

• Provides 1,500 V AC isolation between inputs and system electronics.

• Channel-to-channel separation prevents local faults from affecting the entire module.

Rapid Signal Processing

• Input response time typically ≤ 8 ms, ensuring that status changes in field devices are immediately recognized.

• Integrated digital filters prevent false triggering caused by mechanical vibrations or electrical noise.

Hot-Swappable and Maintenance-Friendly

• Can be replaced while the system remains powered (hot-swappable) when connected via compatible pressure-clamp or terminal blocks.

• Front-panel status LED indicates module health; built-in self-diagnostics detect wiring issues, short circuits, or internal failures.

Flexible Connectivity

• Connects easily to field devices using pressure-clamp terminals or compatible KS cables.

• Supports modular installation in FIO nodes or redundant I/O configurations.

Technical Specifications

Applications

• Process Control Systems: Integration with CENTUM VP or CS 3000 for industrial automation.

• Digital Signal Monitoring: Connects limit switches, proximity sensors, and digital actuators.

• Data Acquisition: Captures real-time status of field devices.

• Machine and Environmental Monitoring: Monitors operating conditions and equipment status.

• Temperature and Safety Systems: Interfaces with auxiliary control devices or safety relays.

FAQ

Q: Can the ADV151-P10 module be replaced while the system is running?
A: Yes, it is hot-swappable when connected with compatible pressure-clamp terminals or redundant I/O blocks.

Q: What types of field signals are supported?
A: Voltage-free contacts or 24 V DC signals from sensors, switches, and contactors.

Q: How does the module protect the controller from electrical faults?
A: It features 1,500 V AC isolation between inputs and the system, plus channel-to-channel separation to prevent propagation of faults.
