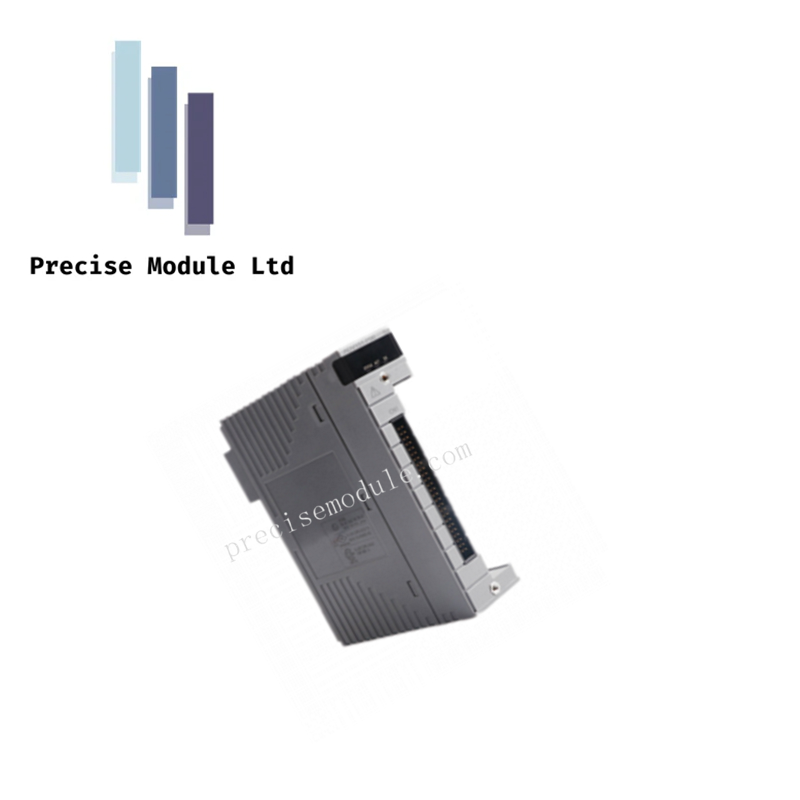

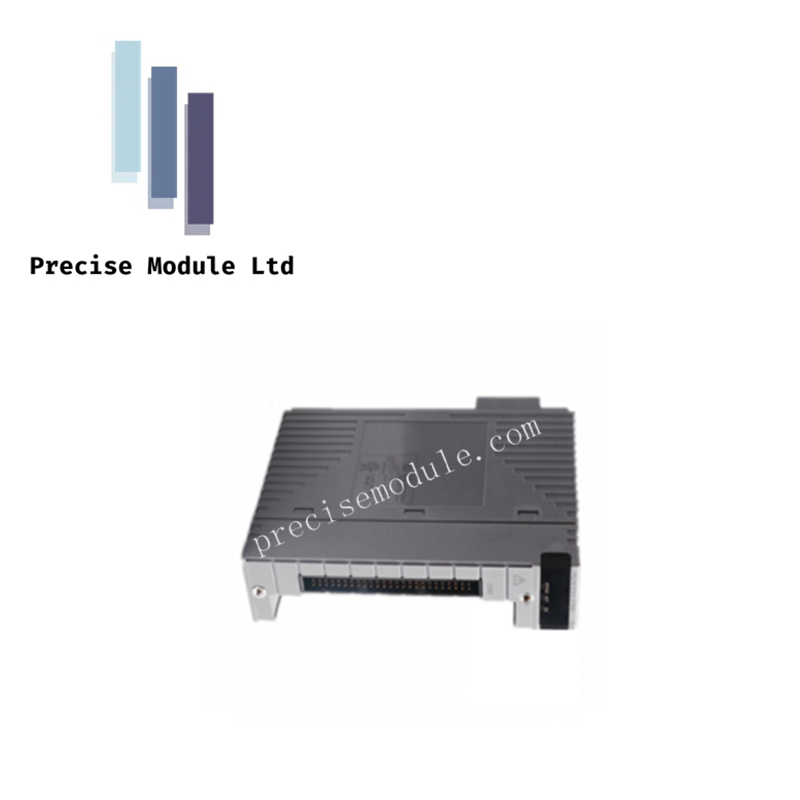

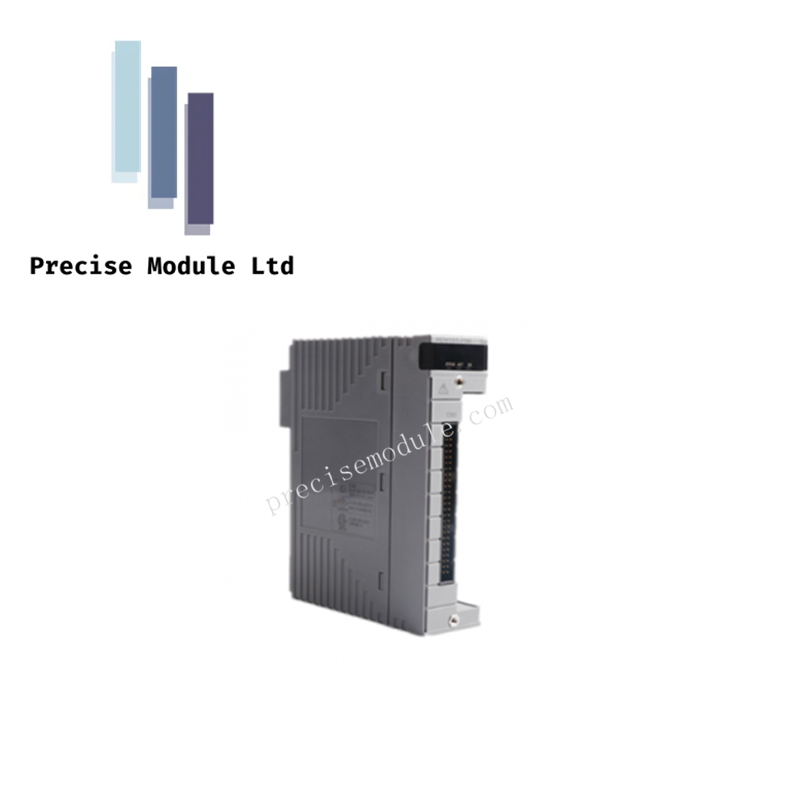

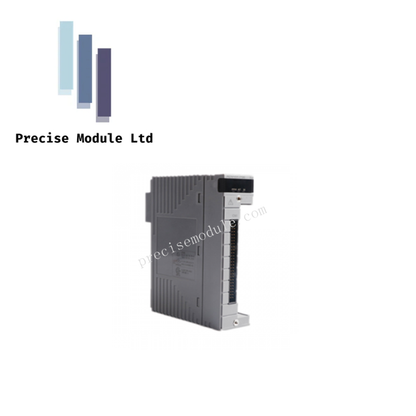

Yokogawa ADV161-P50 Digital Input Module

Description

 The Yokogawa ADV161-P50 is a high-performance digital input module designed for integration with Yokogawa's CENTUM VP distributed control systems. It ensures reliable acquisition and processing of binary signals from field devices in industrial automation environments.

Specifications

• Model Number: ADV161-P50

• Type: Digital Input Module

• Input Channels: 16 channels with event sequence capability

• Input Voltage Range: Nominal 24 VDC

• Input Current: Typically 6 mA

• Input Type: Dry contact or voltage type (non-polarized)

• Isolation: Optical isolation between channels and system

• Input Filter Time: Configurable from 3 ms to 100 ms

• Event Sequence (SOE): Supported with 1 ms timestamp resolution

• Mounting: Installed on control cabinet baseplate

• Connection Method: Terminal block

• Power Consumption: Maximum 3.5 W

• Operating Temperature: 0°C to 55°C

• Storage Temperature: -20°C to 70°C

• Dimensions: 130 x 119.9 x 32.8 mm

• Weight: 0.3 kg

Features

• Hot Swap Capability: Enables maintenance without system shutdown

• System Integration: Seamless with Yokogawa CENTUM VP and N-IO systems

• High Reliability: Built to meet stringent industrial standards

• Flexible Input Handling: Supports both dry contact and voltage-type inputs

• Event Logging: Precise SOE functionality for critical signal tracking

• Scalable Architecture: Supports modular expansion for control strategies

• Robust Design: Engineered for harsh industrial environments

• Efficient Communication: Interfaces with FIO bus-connected I/O nodes
