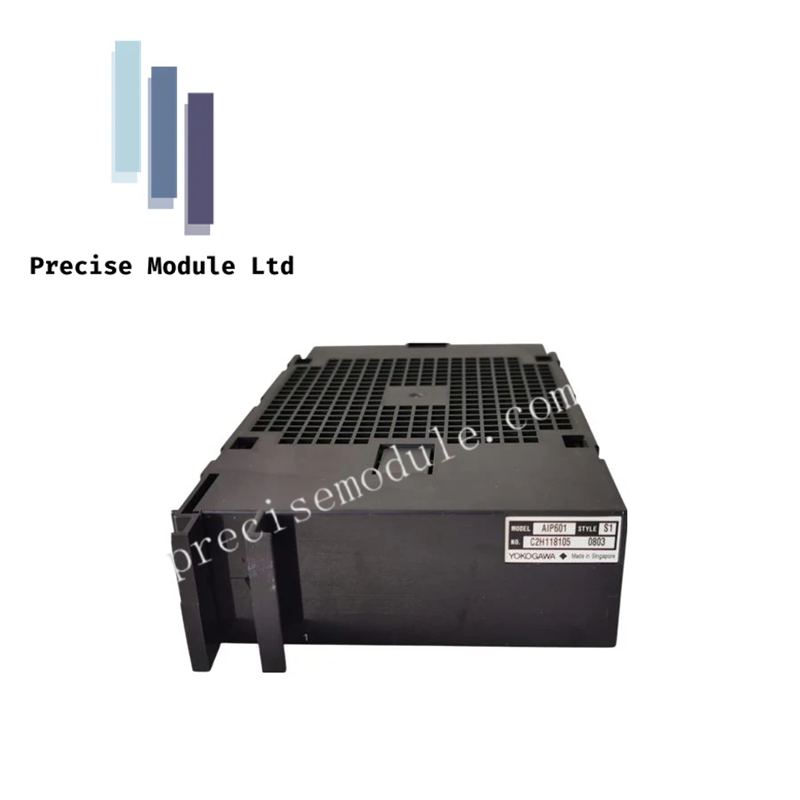

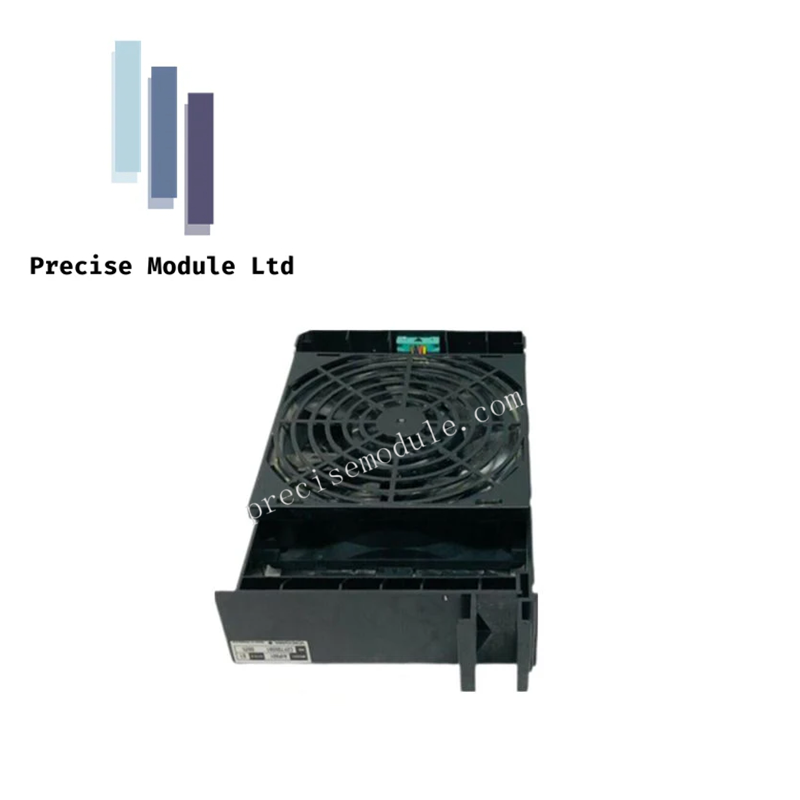

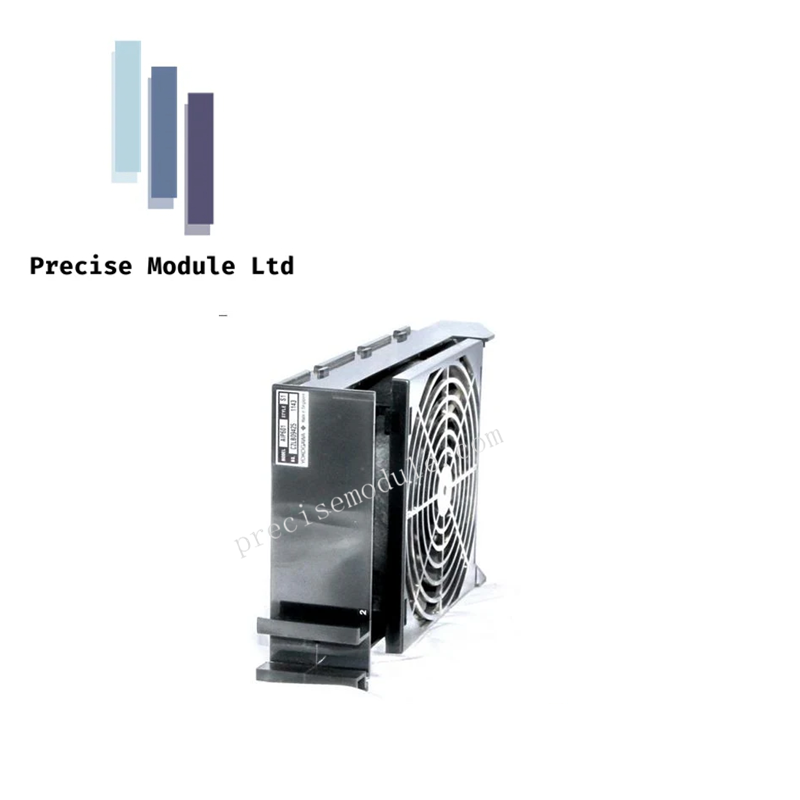

The Yokogawa AIP601 Door Fan Unit is a vital thermal management accessory designed to protect sensitive control equipment in industrial environments. It ensures consistent airflow and cooling for CENTUM CS and CENTUM VP systems, enhancing system reliability.
Technical Specifications
Model: AIP601
Manufacturer: Yokogawa
Category: Panel Accessories
Subcategory: Fan/Thermal Management for Control Panels
Compatible Systems:
CENTUM CS
CENTUM VP
Dimensions:
5.0" × 2.0" × 10.5" (12.7 cm × 5.1 cm × 26.7 cm)
Weight: 0.3 kg
Power Supply:
Rated Voltage: 250 V AC
Maximum Input: 30 V DC
Battery Backup: Up to 72 hours for main memory
Vnet/IP Interface: Dual-redundant configuration
Field Control Unit (FCU): Supports 1 unit
Power Distribution Board: Built-in HKU (supports dual or single power supply configurations)
I/O Module Support: Up to 6 I/O modules
Detectable Flow Rate: 2 to 20 units
Functional Highlights
Reliable Ventilation: Maintains optimal airflow to prevent overheating
System Integration: Seamlessly supports CENTUM CS and VP platforms
Redundant Networking: Dual Vnet/IP ensures communication stability
Modular Expansion: Supports multiple I/O modules and one FCU
Compact Design: Fits easily into control panel layouts
Extended Backup: 72-hour battery support for uninterrupted memory retention
Built-in Power Distribution: HKU board enables flexible power configurations
