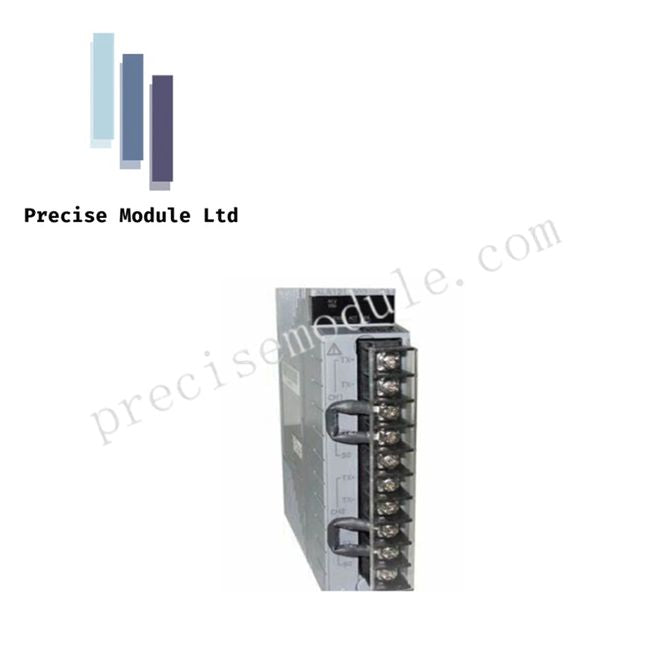

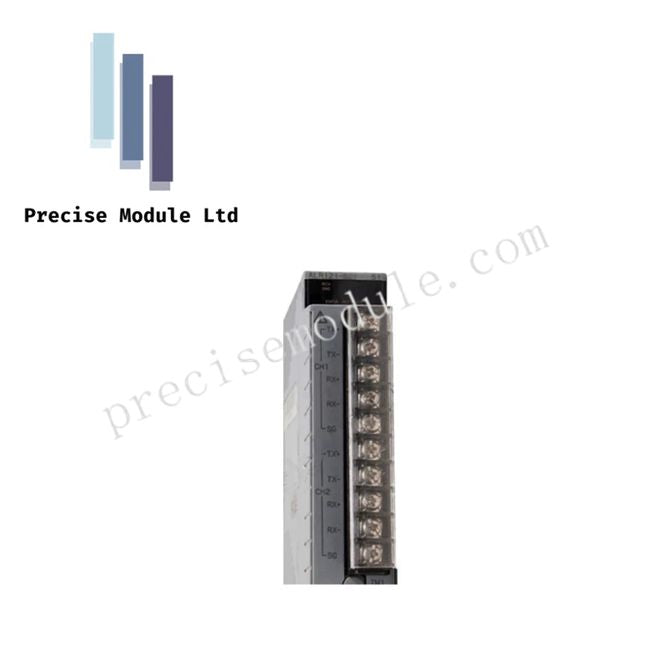

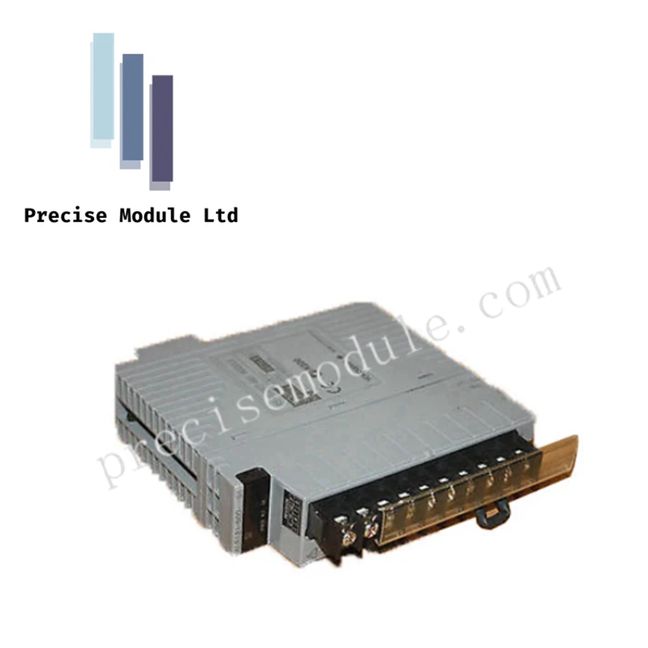

Yokogawa ALR111-S00 Dual RS-232C Serial Communication Module

Yokogawa ALR111-S00 Dual RS-232C Serial Communication Module

  • Manufacturer: Yokogawa

  • Product No.: ALR111-S00

  • Condition：in Stock

  • Product Type: Serial Communication Module

  • Product Origin: Japan

  • Payment:T/T, Western Union

  • Weight: 1000g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The ALR111-S00 is a dual-port Serial Communication Module (RS-232C) engineered for Yokogawa CENTUM VP and CENTUM CS 3000 Field Control Stations (FCS). It provides reliable, high-speed connectivity between the DCS and external equipment, including PLCs, analytical instruments, and monitoring devices.

Key Features

Dual-Port Operation

  • Two independent RS-232C ports allow simultaneous communication with multiple devices.

  • Supports baud rates from 300 bps to 115.2 kbps, ensuring timely data exchange for critical process monitoring.

Flexible Protocol Support

  • Native Modbus RTU/ASCII support for standardized industrial communication.

  • “No-Protocol” mode enables customized data frames for proprietary devices.

High Reliability and Redundancy

  • Supports dual redundant configuration for seamless failover between primary and backup modules.

  • Built-in error detection handles parity, framing, and overrun issues to maintain data integrity.

Seamless Integration with CENTUM VP

  • Communication registers map directly to FCS functional blocks for easy monitoring on the Human Interface Station (HIS).

  • Hot-swappable design allows module replacement without disrupting system operation.

Technical Specifications

Feature Specification
Interface RS-232C, dual ports
Connector Type D-sub 9-pin Male
Communication Speed 300 bps to 115,200 bps
Transmission Method Half-duplex, start-stop synchronization
Transmission Code ASCII / Binary
Character Length 7 or 8 bits
Stop Bits 1 or 2 bits
Parity None / Even / Odd
Maximum Distance 15 meters (RS-232C standard)
Extended Support Use RS-422/485 converter for longer distances up to 1200 m
Current Consumption 0.5 A
Weight Approx. 0.3 kg
Mounting Options Compatible with ANB10, ANB11, ANR10, AF0, AFV10, FV30, rAFV40
Wiring Options AKB131, AKB132, AKB133, AKB134, AKB161/AKB162 shielded cables

Suffix Code Explanation (-S00)

  • -S: Standard type module

  • 0: Base functional specification

  • 0: Standard mounting with no specialized options

Applications

Suitable for integrating third-party PLCs, analytical devices, and monitoring instruments into the Yokogawa DCS. Ideal for chemical, petrochemical, and power plant applications where real-time, reliable serial communication is required.

FAQ

Q: Can I extend communication beyond 15 meters?
A: Yes, use an RS-232 to RS-422/485 or fiber-optic converter to maintain signal integrity over longer distances.

Q: Can this module operate while the FCS is online?
A: Yes, ALR111-S00 supports hot-swapping without interrupting the control system.

Q: How many modules can be installed in one FCS?
A: Depending on the FCS type, up to 8 or 16 module pairs are supported.
