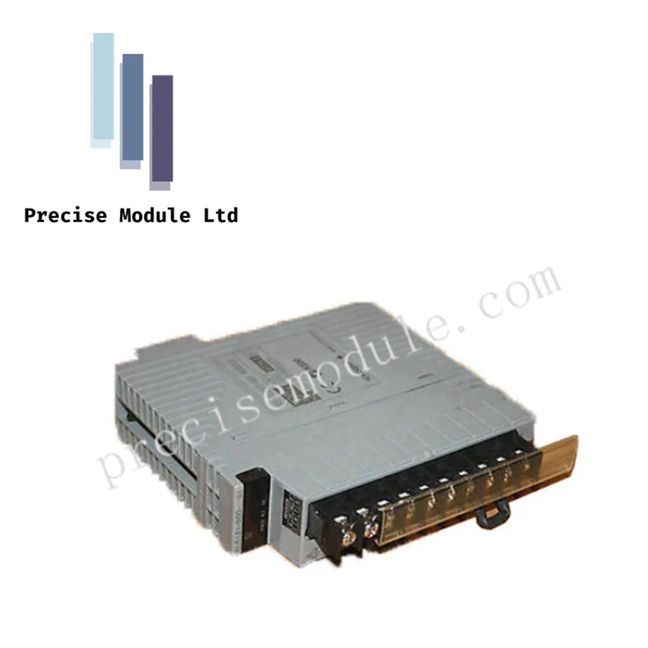

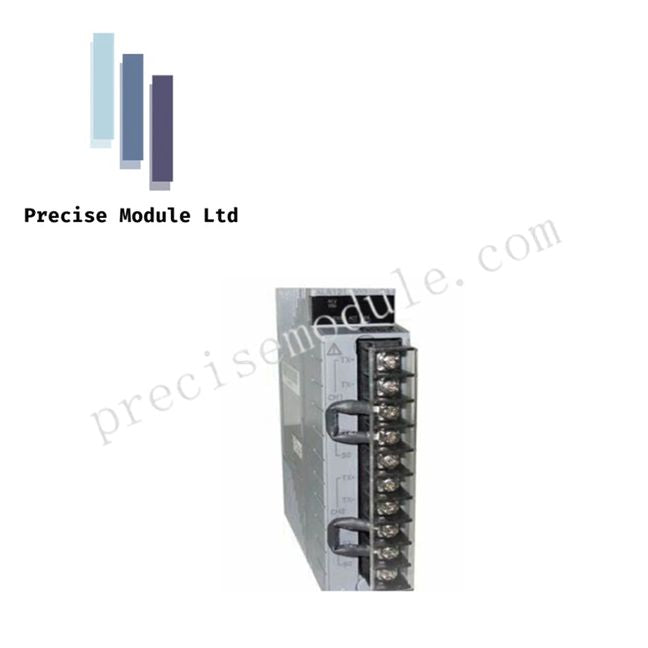

Yokogawa ALR111-S00 Serial Communication Module CENTUM VP/CS 3000

Yokogawa ALR111-S00 Serial Communication Module CENTUM VP/CS 3000

  • Manufacturer: Yokogawa

  • Product No.: ALR111-S00

  • Condition：in Stock

  • Product Type: Serial Communication Module

  • Product Origin: Japan

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The Yokogawa ALR111-S00 is a robust RS-232C serial communication module designed for integration with CENTUM VP and CENTUM CS 3000 Distributed Control Systems. This module enables precise, high-speed data exchange between Field Control Stations (FCS) and peripheral devices such as PLCs, chromatographs, or digital weighing scales. Its standard configuration does not include explosion-proof features or special conformal coating beyond industrial-grade requirements.

Technical Specifications

Feature Specification
Model / Order Number ALR111-S00
Communication Interface RS-232C (D-sub 9-pin)
Number of Ports 2 independent ports
Data Transfer Rate 300 bps – 115,200 bps (selectable)
Transmission Distance Up to 15 meters (standard RS-232C limit)
Data Format 7 or 8 bits per character
Parity None / Even / Odd
Stop Bits 1 or 2 bits
Synchronization Start-stop method
Transmission Mode Half-duplex
Lag Time After Transmission 1 ms
Redundancy Supports dual-redundant configuration in adjacent slots
Current Consumption 0.5 A (maximum)
Weight 0.3 kg
Mounting Compatibility ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, AFV40
Cabling Options AKB131/132/133/134, or shielded 3-pair AKB161/162

Functional Highlights

  • High-Speed Data Handling: Efficiently manages large volumes of data without impacting control loop performance.

  • Flexible Integration: Communication Builders allow mapping of external device data (e.g., Modbus) to FCS functional blocks.

  • Hot-Swap Capability: Replaceable under maintenance conditions without shutting down the system.

  • Diagnostic LEDs: Front-panel indicators provide immediate status on activity, health, and errors.

Applications

The ALR111-S00 is ideal for industrial environments where reliable point-to-point serial communication is required, including:

  • Process monitoring with PLCs

  • Data collection from analytical instruments

  • Integration with weighing and batching equipment

Comparison with ALR121

While ALR111-S00 supports RS-232C for point-to-point connections, the ALR121 variant offers RS-422/RS-485 for longer distances (up to 1200 meters) and multipoint networks, making it suitable for distributed sensor systems.

FAQ

Q: Can this module handle distances beyond 15 meters?
A: RS-232C is limited to 15 meters; use RS-422/RS-485 (ALR121) for longer runs.

Q: Is the module hot-swappable?
A: Yes, replacement is possible under specified maintenance procedures without powering down the system.

Q: What protocols are supported?
A: Both standard protocols and user-defined protocols via ALRECU software.
