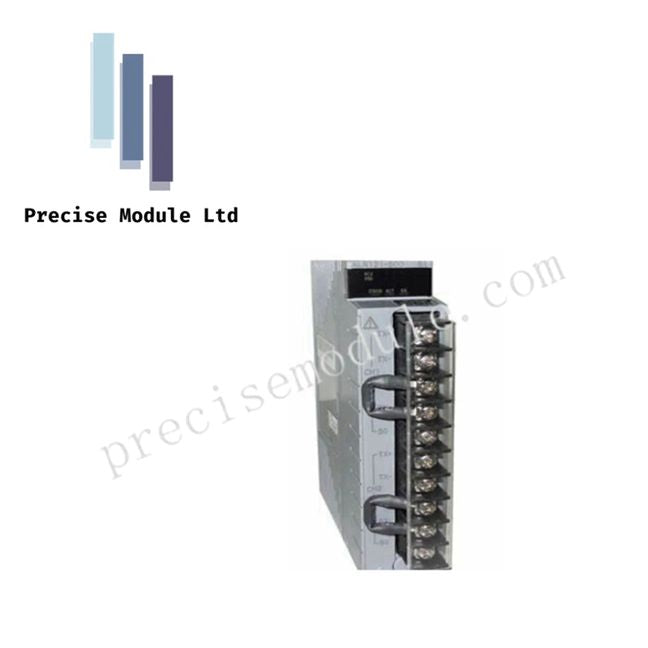

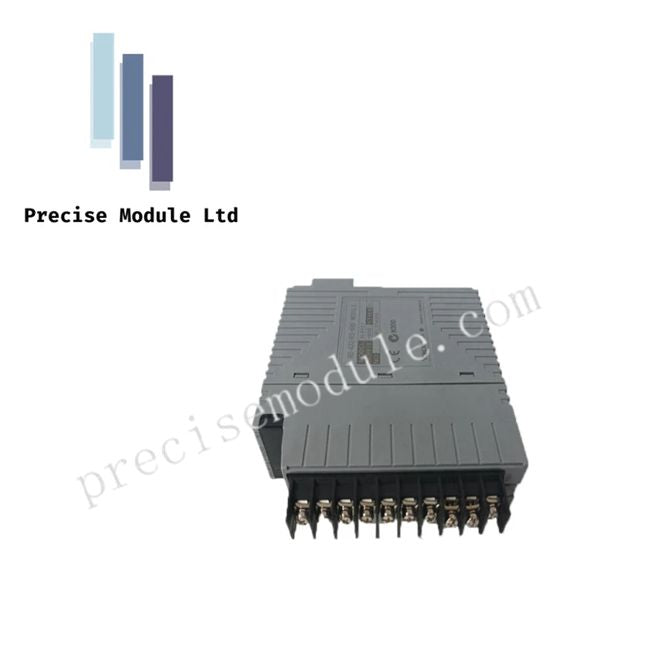

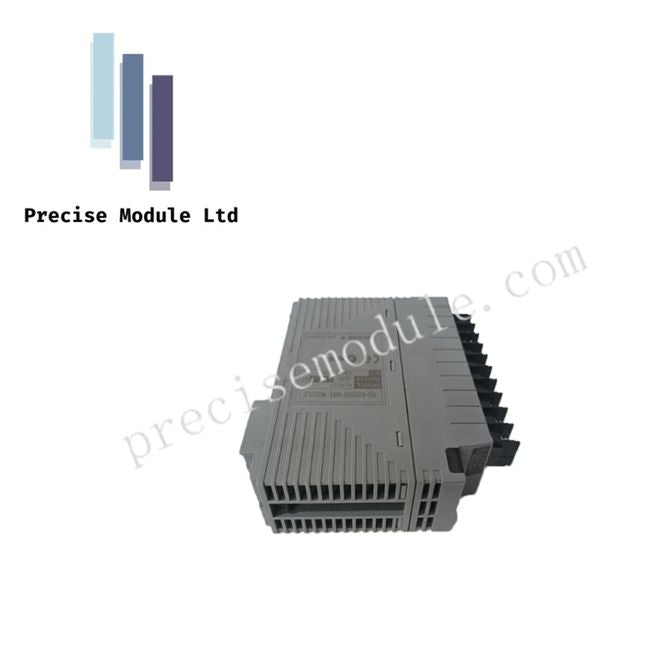

Yokogawa ALR121-S51 Serial Communication Module | FCS Interface

Manufacturer: Yokogawa
Product No.: ALR121-S51
Condition：in Stock
Product Type: Serial Communication Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 340g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Product Description

The Yokogawa ALR121-S51 is a high-reliability serial communication module engineered for seamless integration with Yokogawa CENTUM VP and CENTUM CS 3000 control systems. Designed to maintain continuous data flow between Field Control Stations (FCS) and peripheral devices, this module provides robust and precise communication for demanding industrial environments.

Key Features

High-Speed, Stable Communication
The module ensures real-time transmission with minimal latency, suitable for critical process control where timing and reliability are essential.

Versatile Serial Connectivity
Supports RS-422 and RS-485 interfaces, configurable for 2-wire or 4-wire connections, allowing compatibility with PLCs, analytical instruments, and power monitoring devices.

Dual Port Redundancy
Equipped with two independent serial ports to enable redundant communication paths or multiple parallel serial loops.

Hot-Swappable Operation
Supports online maintenance, allowing module replacement without powering down the FCS, ensuring uninterrupted process control.

Integrated Configuration
Full compatibility with the Yokogawa Engineering Environment enables direct mapping of external data to FCS function blocks without third-party drivers.

Technical Specifications

Feature	Specification
Model	ALR121-S51
Interface	RS-422 / RS-485
Connection Type	2-wire or 4-wire (switchable)
Communication Mode	Half-duplex
Synchronization	Start-stop
Supported Speeds	1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Data Format	ASCII or Binary
Character Length	7 or 8 bits
Stop Bits	1 or 2
Parity	None, Even, Odd
Isolation	500 V AC between signals and internal circuitry
Current Consumption	0.5 A at 5 V DC
Weight	0.34 kg
Mounting	FCS rack slot

Applications

The ALR121-S51 is ideal for industrial sectors requiring stable serial communication, including:

Chemical and petrochemical plants
Refineries
Power generation facilities
Factory automation with PLC integration

FAQ

Q: Can this module communicate with multiple devices simultaneously?
A: Yes, RS-485 supports multipoint connections, allowing several devices on the same serial loop.

Q: Is the module compatible with Modbus protocols?
A: The ALR121-S51 fully supports Modbus RTU, operating as both Master and Slave depending on configuration.

Q: What maintenance is required?
A: Minimal maintenance is needed; the module supports hot swapping for continuous operation.

Q: Are there comparable models in the ALR series?
A: The ALR121-S52 offers higher-speed transmission and extended environmental protection for harsh conditions.
