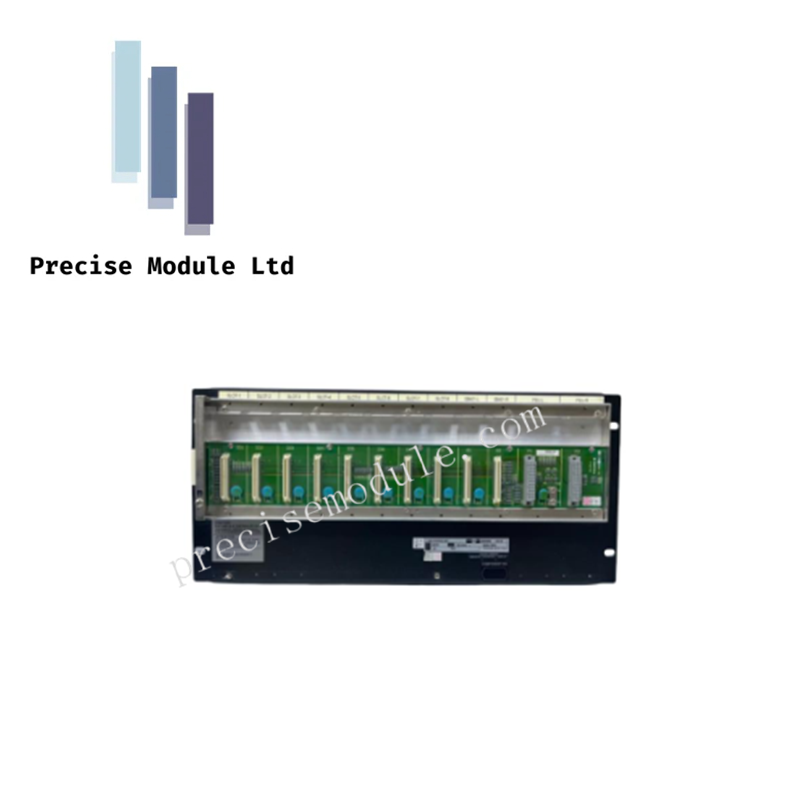

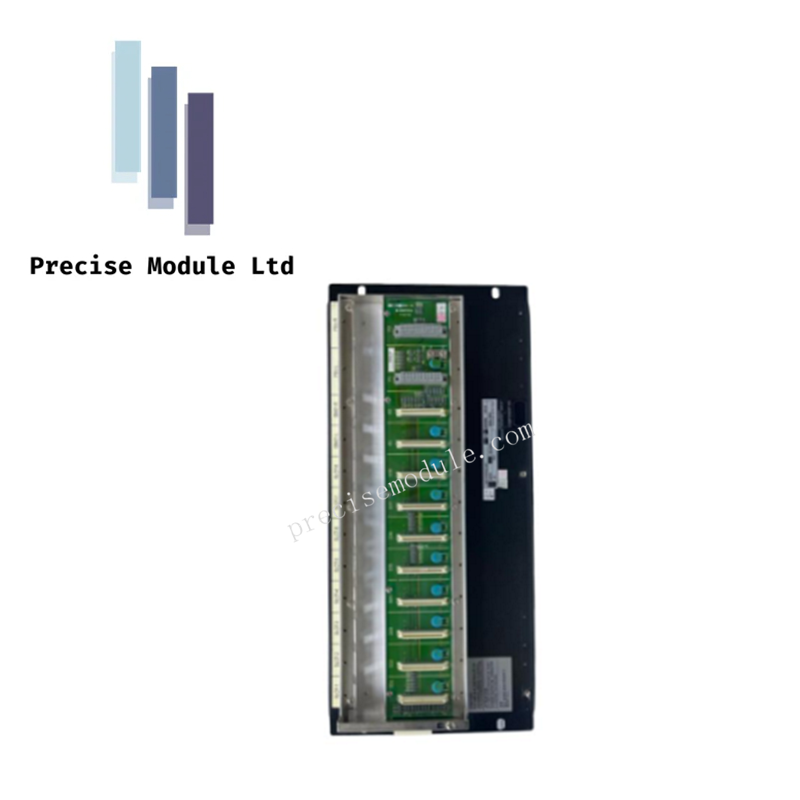

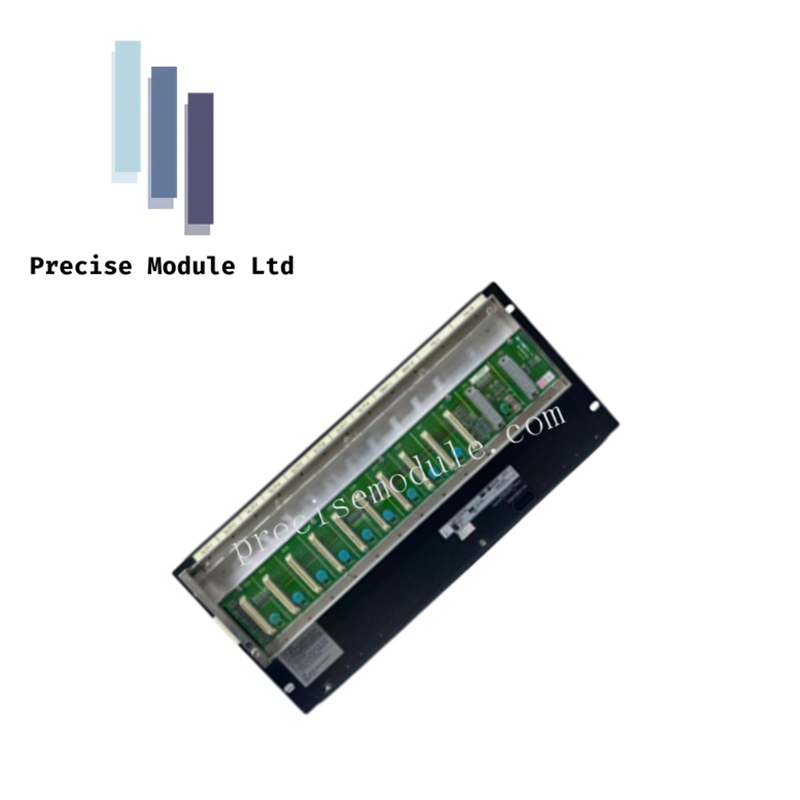

Yokogawa ANB10D-421 Node Unit for Dual-Redundant ESB Bus

Description

The ANB10D-421 is a high-availability node unit developed by Yokogawa for use in CENTUM VP and ProSafe-RS platforms. It serves as a communication bridge between field I/O signals and Field Control Units (FCUs), while also supplying power to connected I/O modules. Its dual-redundant ESB bus architecture ensures fault-tolerant performance in mission-critical environments.

Specifications

• Catalog Number: ANB10D-421

• Manufacturer: Yokogawa

• Bus Type: Dual-redundant ESB bus

• I/O Capacity:

  • 8 analog inputs (4–20 mA or 0–10 V)

  • 8 digital inputs

  • 8 digital outputs

• Power Supply Options:

  • 100–120 V AC @ 50/60 Hz

  • 220–240 V AC @ 50/60 Hz

  • 24 V DC @ 5.5 A

• Power Consumption:

  • 100–120 V AC: 200 VA / 120 W

  • 220–240 V AC: 230 VA / 120 W

• Dimensions: 90 × 120 × 60 mm

• Weight: 0.7 kg

• Operating Temperature: –20°C to +60°C

• Storage Temperature: –40°C to +70°C

• Mounting: 19-inch rack (M5 × 4 screws with insulation bush)

• Certifications: CE, RoHS

• Country of Origin: Japan

Functional Highlights

• Dual-Redundant Communication: Ensures uninterrupted ESB bus connectivity

• Integrated Power Supply: Delivers power to connected I/O modules

• Compact Design: Lightweight and modular for flexible installation

• Safety Options: Explosion-proof and intrinsically safe variants available

• Node Expansion:

  • Supports up to 9 node units per FCU (AFV10, AFF55)

  • Supports 3 units for AFV30/AFV40

• Bus Compatibility: Works with EC401/EC402 ESB Bus Coupler Modules

• Diagnostics: LED indicators for real-time status monitoring

• Signal Acquisition: Optimized for high-speed field data capture
