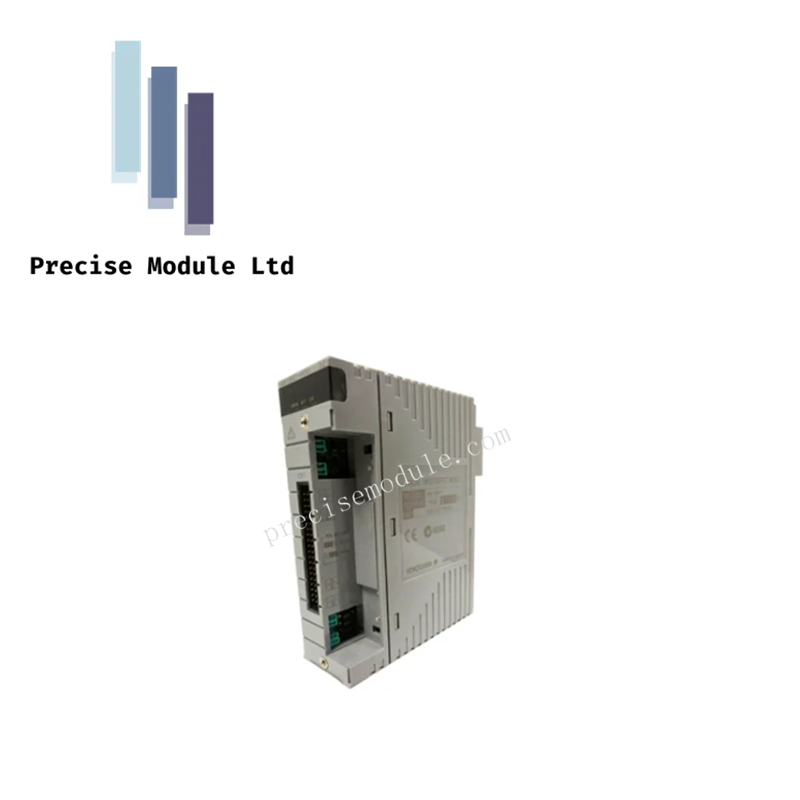

Yokogawa EB511-11 Bus Interface Module

Description

The Yokogawa EB511-11 is an ESB main bus module used in the FIO (Field I/O) system architecture. It serves as the backbone for high-speed data communication between node units and control processors in distributed control systems.

Specifications

• Function: ER Bus Interface Function

• Manufacturer: Yokogawa

• Physical Layer Interface: IEEE802.3 10BASE-2 (1 port)

• Connector Type: BNC coaxial connector

• Communication Speed: 10 Mbps stable transmission

• Transmission Distance: Up to 185 meters (compatible with YCB141)

• Current Consumption: 0.7 A under rated conditions

• Weight: 0.3 kg

• Dimensions: 2.5 cm × 12.7 cm × 12.7 cm

Features

• High-Speed Data Transfer: Ensures fast and stable communication across control modules

• System Backbone: Acts as the central bus for ESB architecture in Yokogawa control systems

• Compact Form Factor: Slim design for efficient rack space utilization

• Robust Reliability: Engineered for continuous operation in industrial environments

• Easy Integration: Seamlessly connects with other Yokogawa modules and units

• Environmental Tolerance: Operates reliably under wide temperature and humidity ranges

• Long-Term Support: Backed by Yokogawa’s global service and warranty
