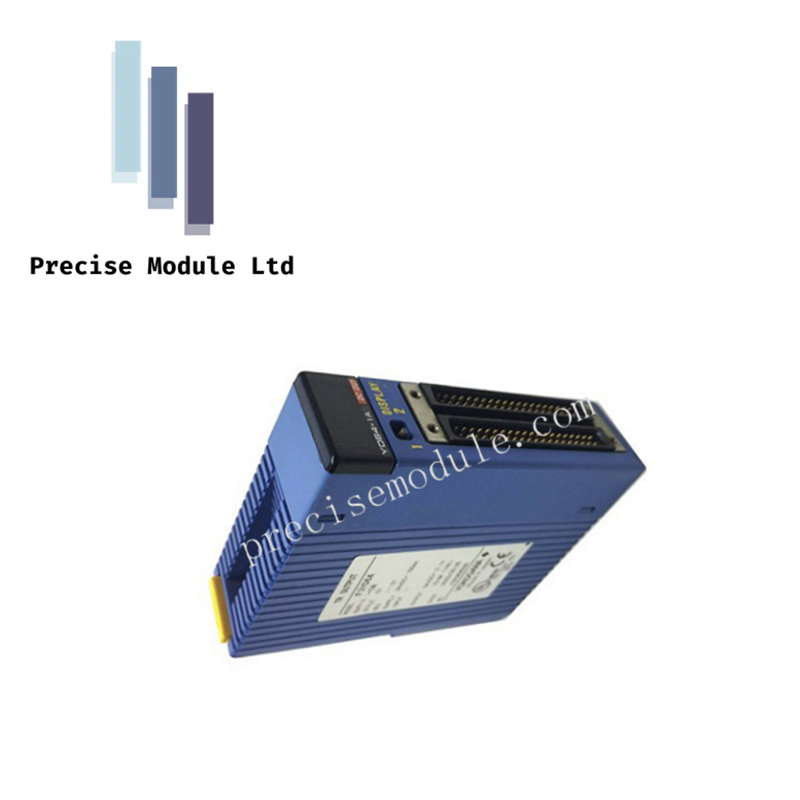

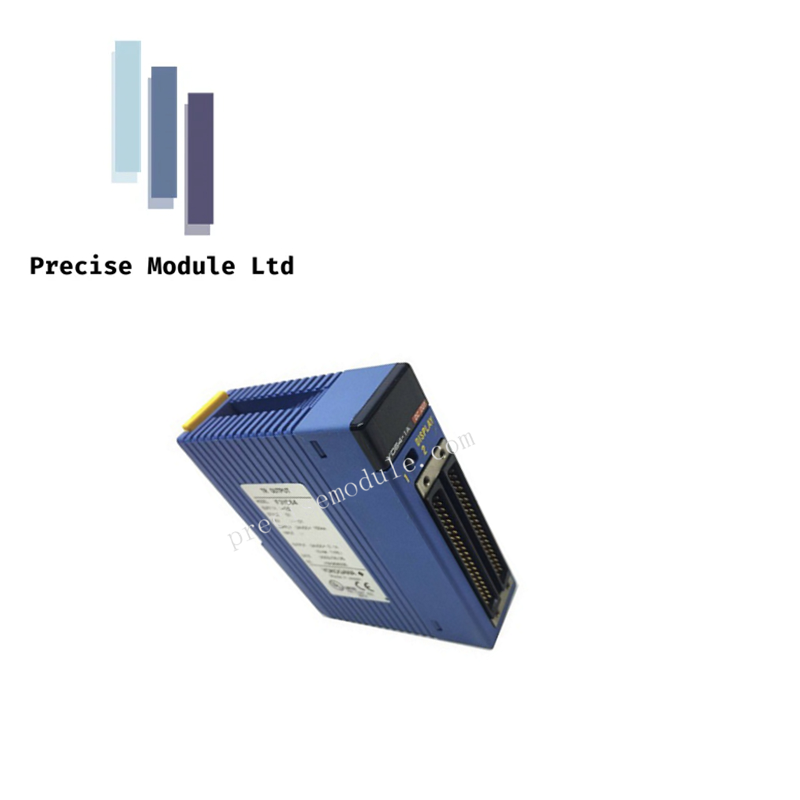

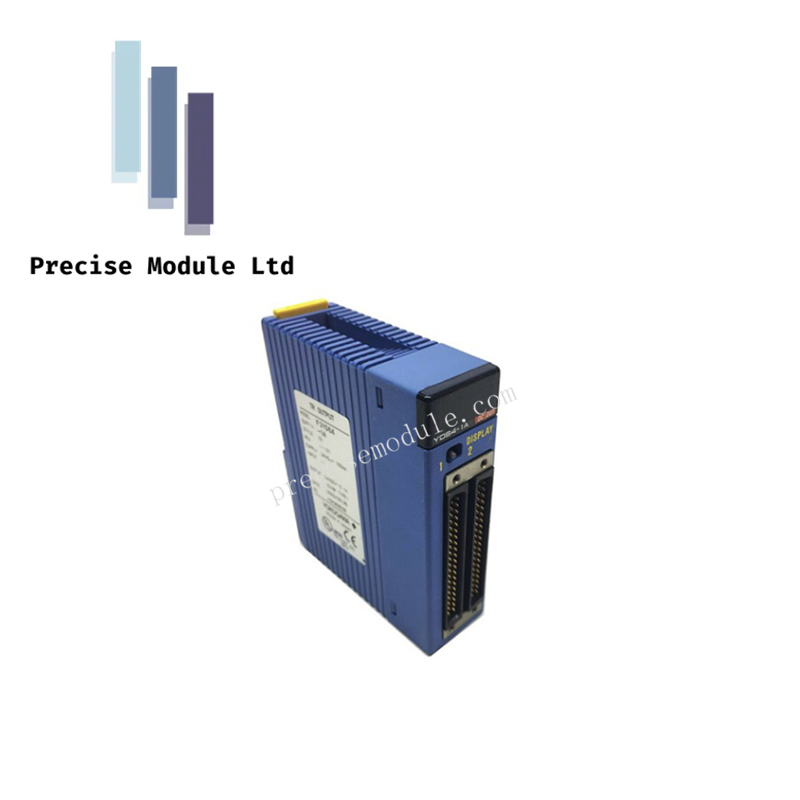

The F3YD64-1P is a high-density transistor output module from Yokogawa, designed for FA-M3 programmable controllers. With 64 output points and robust isolation, it delivers fast and reliable switching performance in industrial automation environments.
Specifications
Model Number: F3YD64-1P
Manufacturer: Yokogawa
Output Type: Transistor (sink type)
Number of Output Points: 64
Common Line Configuration: 8 points/common
Isolation Method: Photocoupler isolation
Withstanding Voltage: 1500 V AC for 1 minute between external terminals and internal circuit
Rated Load Voltage: 12 to 24 V DC
Operating Voltage Range: 10.2 to 26.4 V DC
Current Consumption: 275 mA (5 V DC)
External Power Supply: 12 to 24 V DC / 95 mA
Compatible Platform: FA-M3 series
Mounting Options: DIN rail or panel mounting
Dimensions: 2.89 cm × 8.32 cm × 10 cm
Weight: 0.13 kg
Shipping Weight: 1.5 kg
Environmental Tolerance:
Operating Temperature: 0°C to +55°C
Storage Temperature: -25°C to +75°C
Humidity: 5% to 95% RH (non-condensing)
Key Benefits
High-Density Output: 64 points for large-scale device control
Electrical Safety: Photocoupler isolation and 1500 V AC withstand voltage
Flexible Power Input: Supports wide DC voltage range
Compact Form Factor: Ideal for tight control cabinet layouts
Reliable Performance: Designed for continuous industrial operation
Easy Integration: Compatible with FA-M3 architecture and standard wiring
