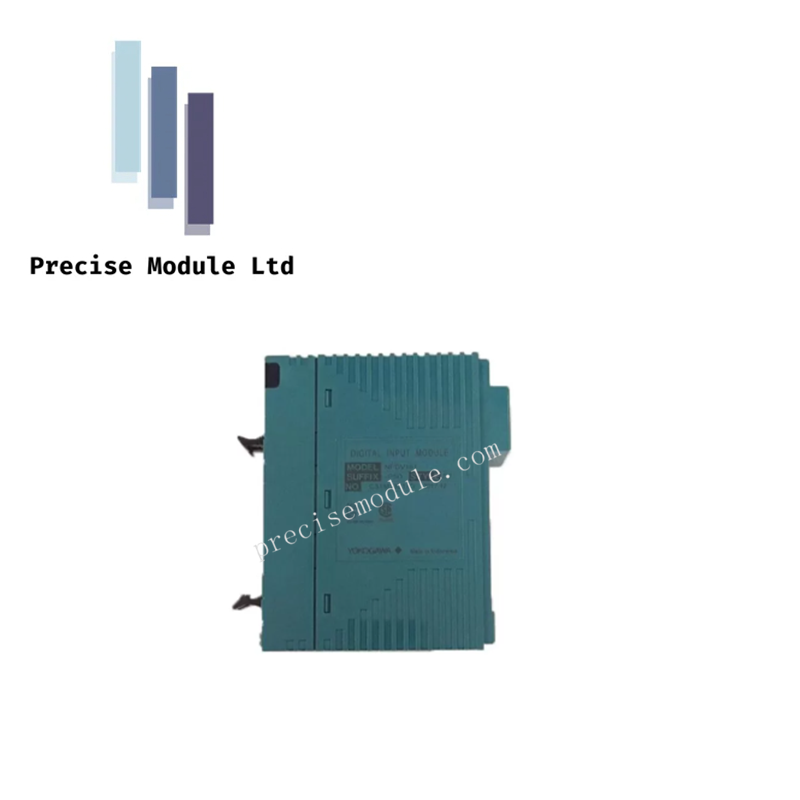

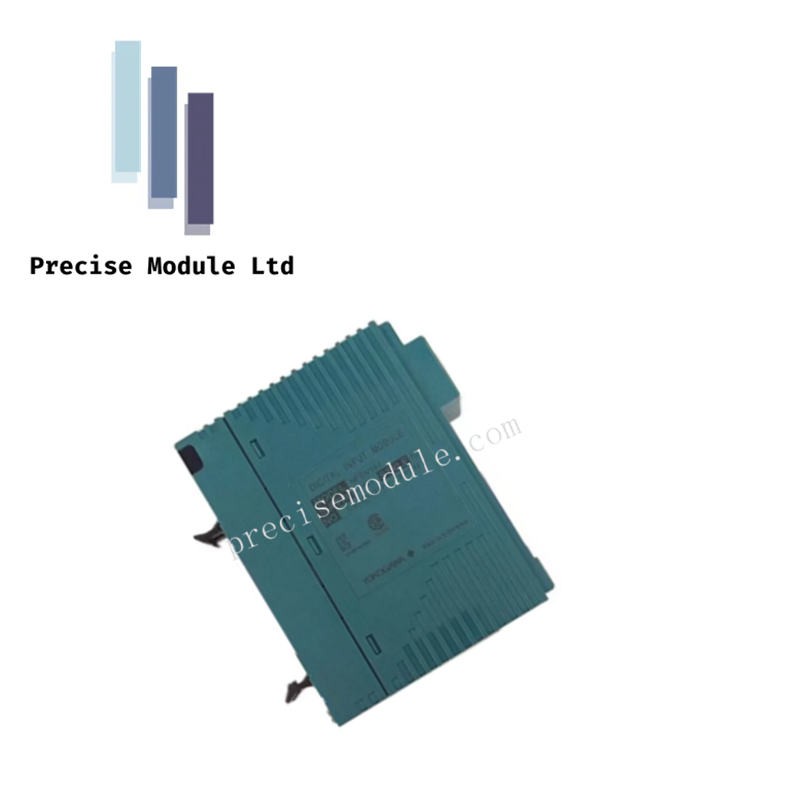

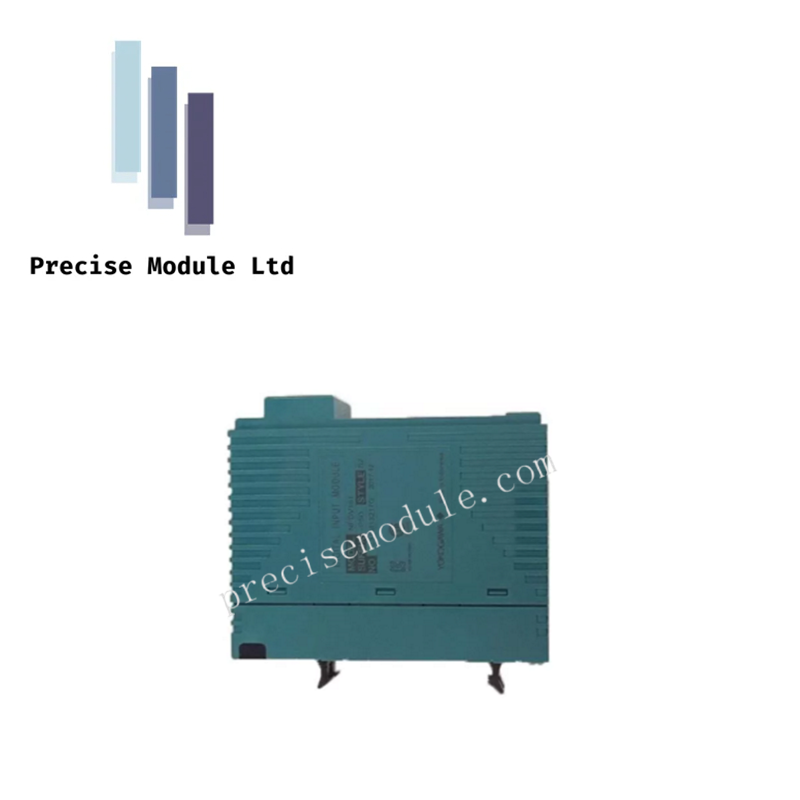

The YOKOGAWA NFDV161-P00 is a 32-channel digital input module designed to receive ON/OFF signals in industrial control systems. It supports 24V DC input levels and ensures safe, accurate signal acquisition.
Specifications
Model Number: NFDV161-P00
Manufacturer: Yokogawa
Input Channels: 32
Rated Input Voltage: 24V DC
Manufacturer: Yokogawa
Input ON Voltage Range: 18 to 26.4V DC
Input OFF Voltage: 5.0V DC or less
Input Current at Rated Voltage: 4.1 mA ±20% per channel
Maximum Instantaneous Input Voltage: 30.0V DC
Isolation Withstanding Voltage: 2000V AC for 1 minute
Input Response Time: 8 ms or less
Current Consumption: 500 mA at 5V DC
Weight: 0.3 kg
Features
High-Density Input: 32 channels for large-scale signal monitoring
Fast Response: Detects ON/OFF status within 8 ms
Voltage Isolation: 2000V AC isolation ensures system safety
Wide Input Range: Accepts up to 30V DC for flexible field wiring
Stable Performance: Designed for continuous industrial operation
Compact Design: Lightweight and space-efficient for control panels
Reliable Signal Detection: Ideal for status and push button inputs
