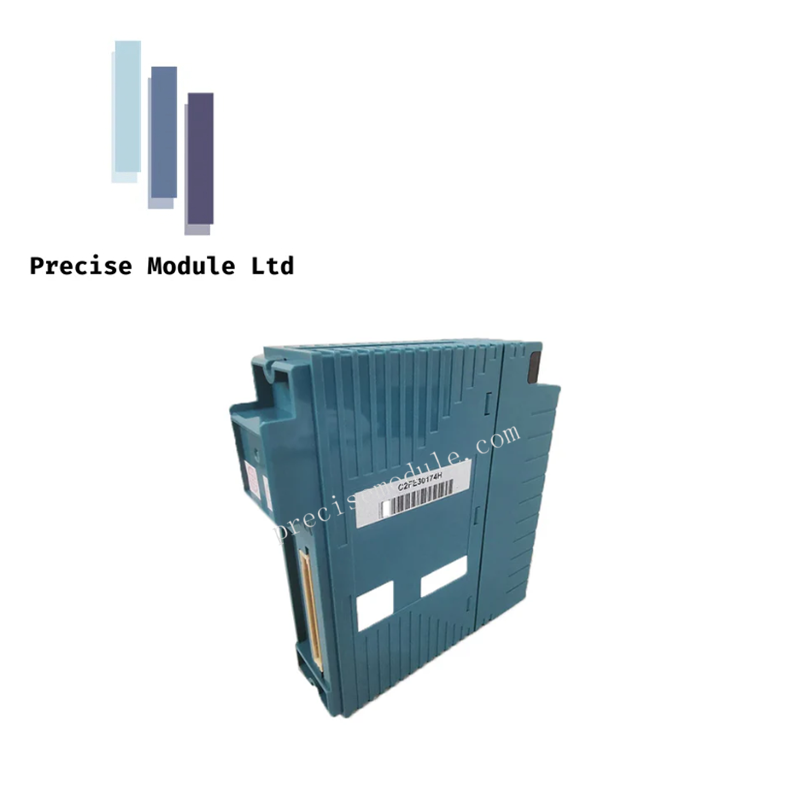

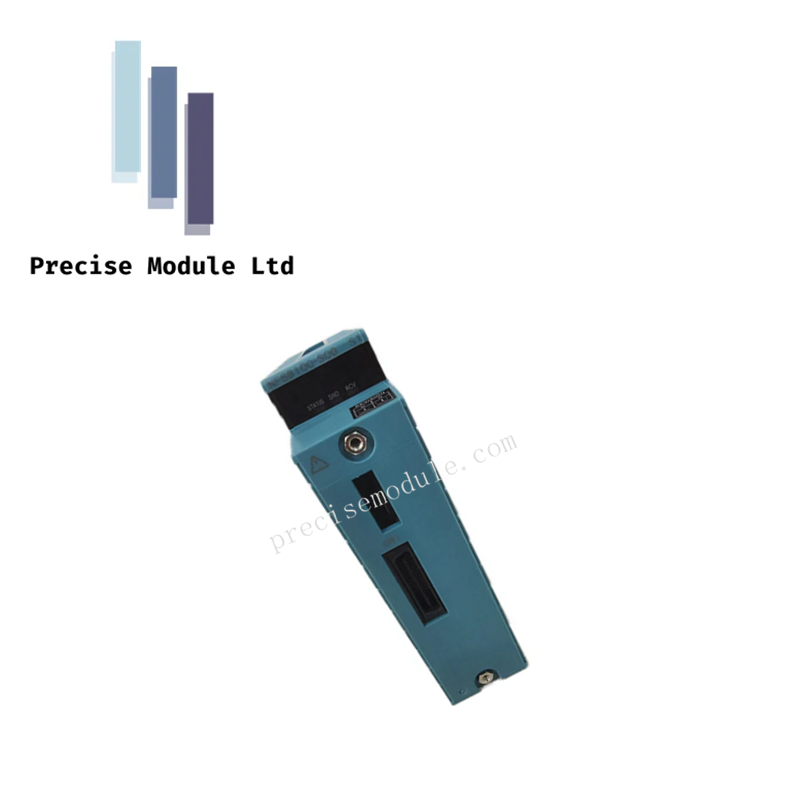

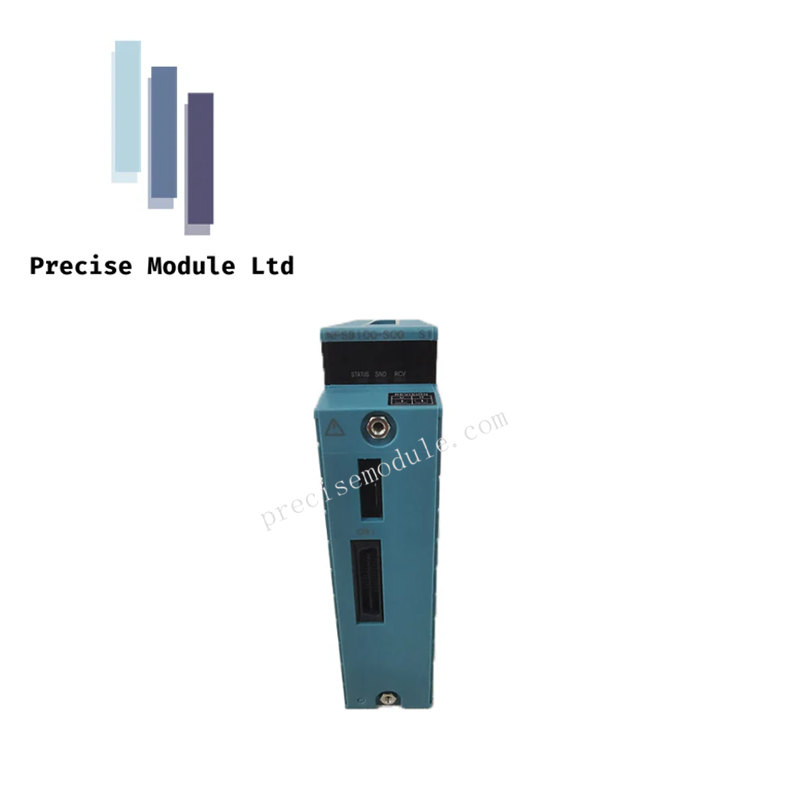

YOKOGAWA NFDV551-P10 Digital Output Module

Description

The Yokogawa NFDV551-P10 is a high-performance 32-channel digital output module designed for seamless integration with STARDoM FCN autonomous controllers. It features isolated sink-type transistor outputs, fast switching, and configurable fallback modes to ensure reliable control of field devices like relays, solenoids, and indicators.

Specification

• Model Number: NFDV551-P10

• Manufacturer: Yokogawa

• Rated Output Voltage: 24 V DC

• Operating Voltage Range: 20.4 to 26.4 V DC

• Max Load Current: 100 mA per channel @ 26.4 V DC

• Output ON Voltage (max): 2 V DC

• Leakage Current (OFF): < 0.1 mA

• Isolation Voltage:

  • 2 kV AC between output and system

  • 500 V AC between commons (every 16 channels)

• Current Consumption:

  • 700 mA @ 5 V DC

  • 60 mA @ 24 V DC (field power)

• Operating Temperature: 0°C to +55°C

• Storage Temperature: –20°C to +80°C

• Humidity Range: 5% to 95% RH (non-condensing)

• Weight: 0.3 kg

System Integration

• Compatible Controllers: FCN, FCN-500, FCN-100, FCN-RTU, FCJ

• Mounting Options: DIN rail or modular rack

• External Connections: MIL connector cable or pressure clamp terminal

• Option Codes:

  • /D5S00: Pressure clamp terminal block (NFTD5S-00)

  • /D5S10: Terminal block with surge absorber (NFTD5S-10)

  • /CCCol: Connector cover for MIL cable (NFCCCo1)
