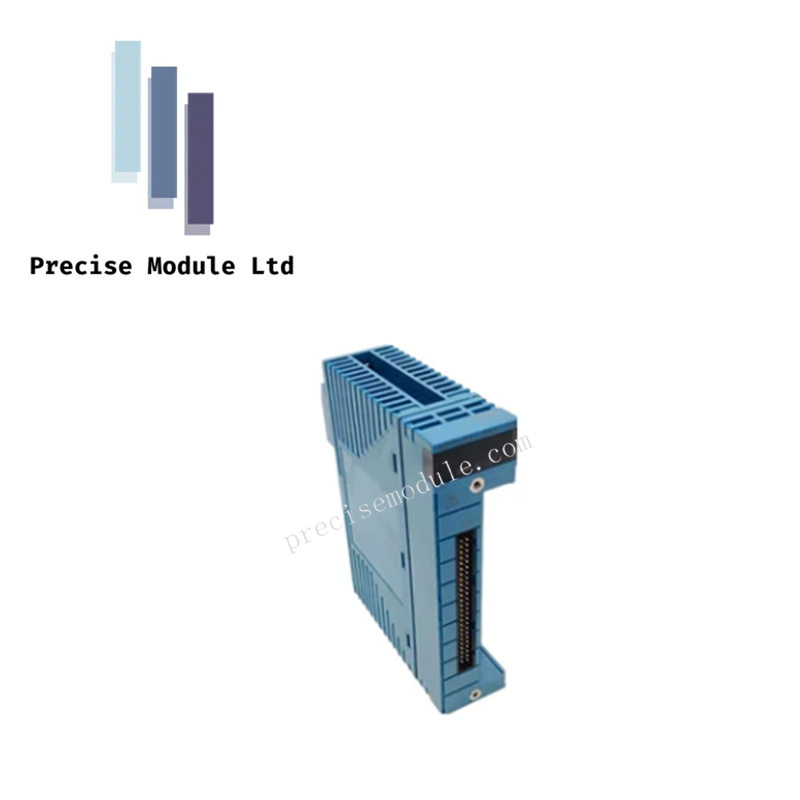

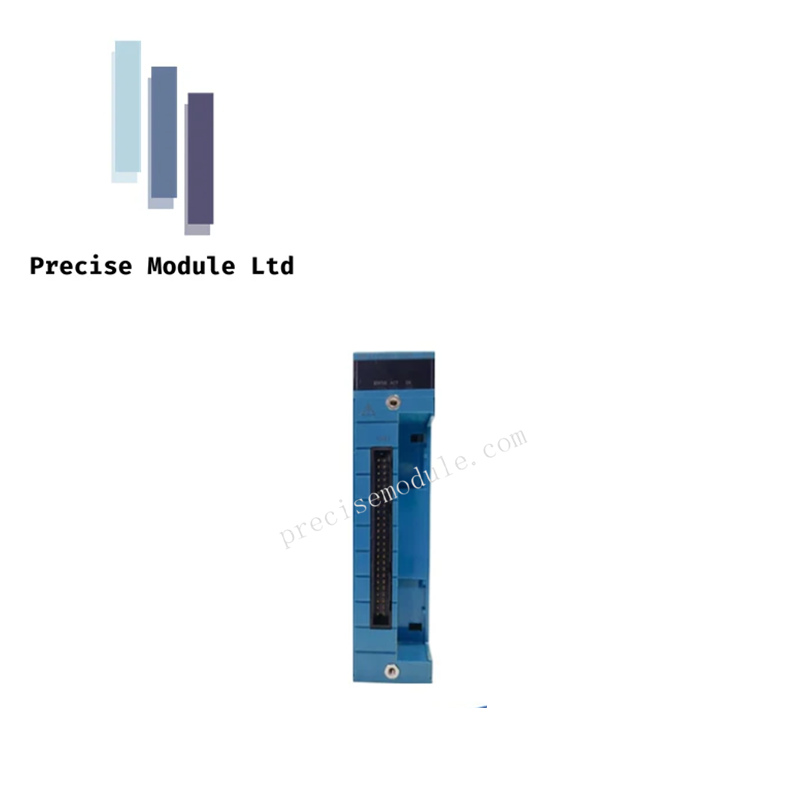

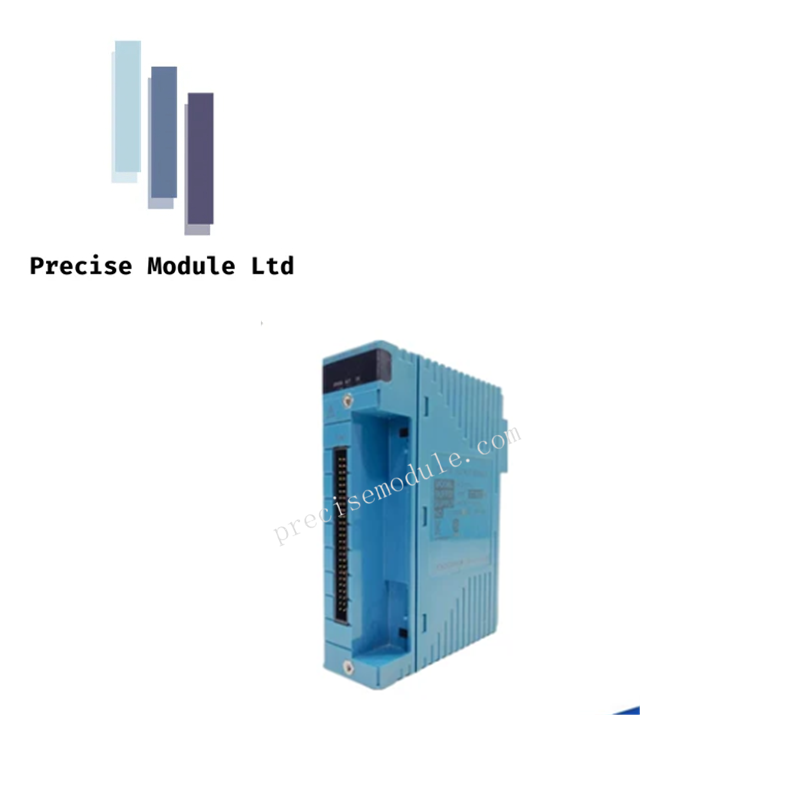

Yokogawa NFDV551-P60 Digital Output Module

Description

The NFDV551-P60 from Yokogawa is a high-performance digital output module built for precise control in industrial automation. It integrates seamlessly with the STARDoM series field controllers and supports a wide range of output devices.

Specifications

• Model: NFDV551-P60

• Manufacturer: Yokogawa

• Output Channels: 32 independent digital outputs

• Rated Voltage: 24 V DC applied voltage

• Load Voltage: 24 V DC at 50 mA per channel

• Field Power Supply Range: 20.4 V to 26.4 V DC

• Maximum ON Voltage: 2 V DC

• Maximum Leak Current: 0.1 mA

• Output Format: Current-sinking type

• Maximum Load Current: 100 mA per channel at 26.4 V DC

• Mounting Method: DIN rail compatible

• Protection Rating: IP65 for dust and water resistance

• Dimensions: 130 mm × 70 mm × 30 mm (5.12 × 2.76 × 1.18 inches)

• Weight: 250 g (8.82 oz)

Features

• High Channel Density: Controls up to 32 devices from a single module

• Reliable Output Design: Isolated current-sinking outputs ensure stable operation

• Wide Voltage Range: Supports flexible power supply conditions

• Compact Form Factor: Fits easily into control cabinets with limited space

• Industrial Durability: IP65-rated enclosure withstands harsh environments

• Efficient Integration: Designed for use with Yokogawa STARDoM controllers

• Simplified Installation: DIN rail mounting speeds up deployment and maintenance

• Precise Control: Ideal for managing valves, alarms, indicators, and actuators
