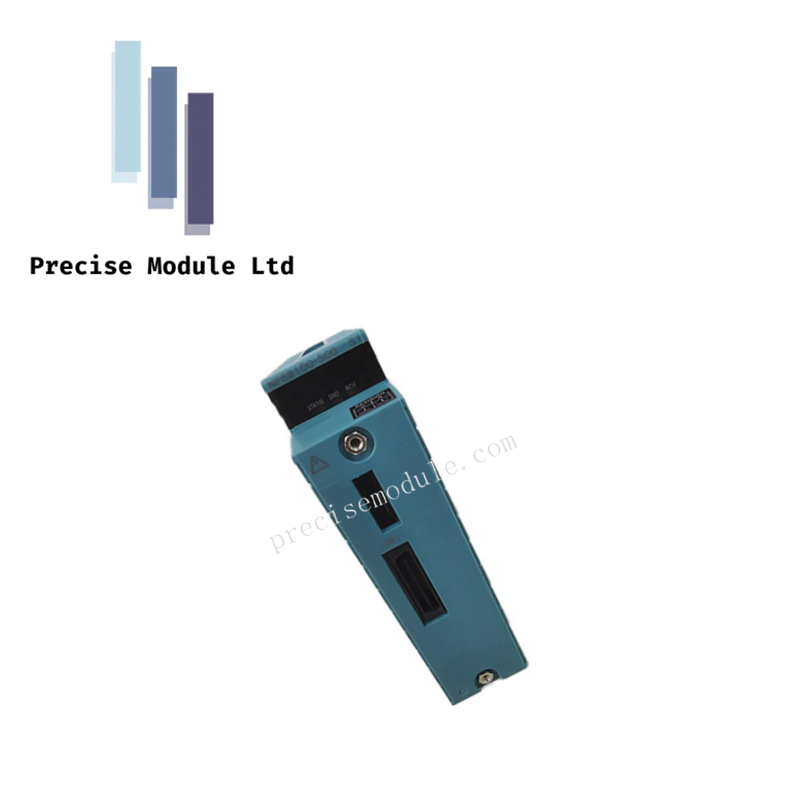

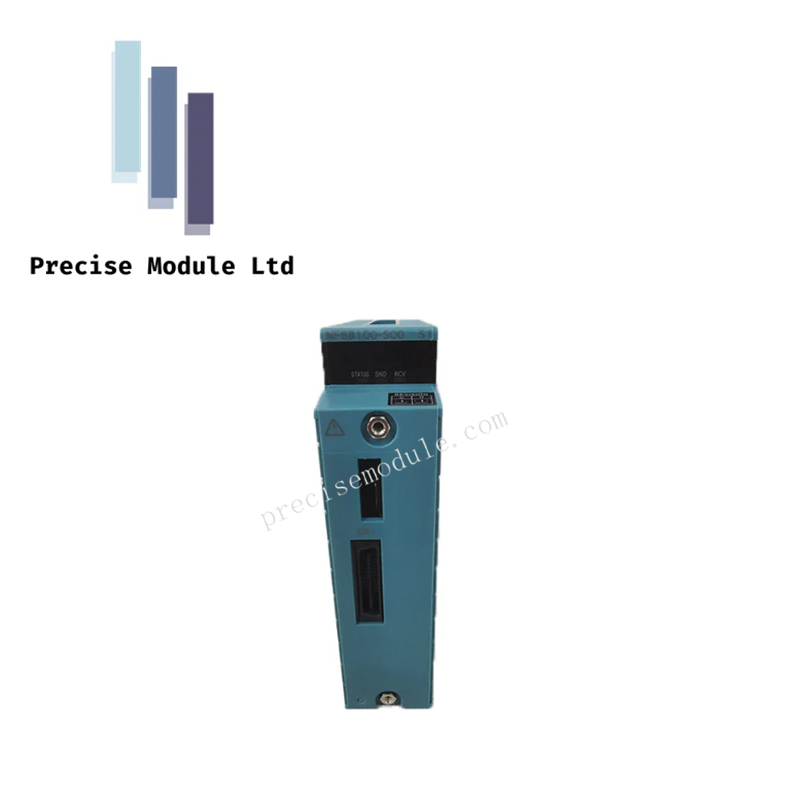

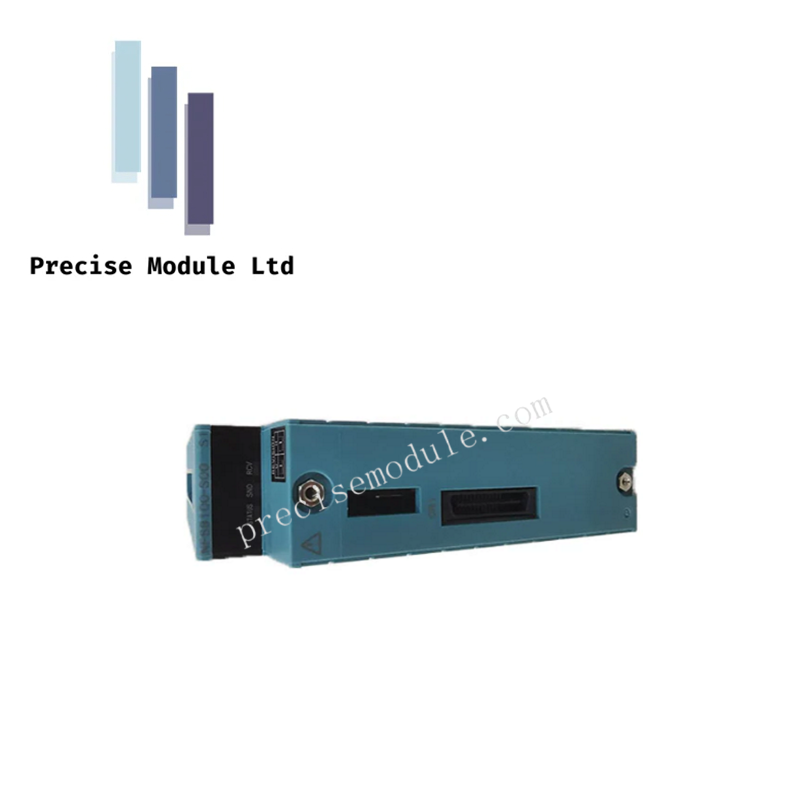

YOKOGAWA NFDV561-P00 Digital Output Module

Manufacturer: Yokogawa
Product No.: NFDV561-P00
Condition：in Stock
Product Type: Digital Output Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 300g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Description

The YOKOGAWA NFDV561-P00 is a high-density digital output module designed for integration with FCN autonomous controllers. With 64 transistor output channels and dual MIL 50-pin connectors, it supports reliable signal control in large-scale industrial automation environments.

Specification Details

Model Number: NFDV561-P00
Manufacturer: Yokogawa
Module Type: Digital Output
Output Channels: 64
Rated Output Voltage: 24 V DC
Connector Type: MIL 50-pin × 2
Pressure Clamp Terminal: Not supported
Signal Connections:
- CN1:
  - OUT1–16: Pins 50–20 (even)
  - OUT17–32: Pins 49–19 (odd)
  - COM1–16: Pins 18,16,14,12
  - COM17–32: Pins 17,15,13,11
  - 24 V DC: Pins 10,8
- CN2:
  - OUT33–48: Pins 50–20 (even)
  - OUT49–64: Pins 49–19 (odd)
  - COM33–48: Pins 18,16,14,12
  - COM49–64: Pins 17,15,13,11
  - 24 V DC: Pins 10,8
Reserved Pins: N.C. (Pins 6, 4, 2, 1, 3, 5)
Cable Spec: MIL-C-83503 compliant, female 50-pin, dual key
Applicable Wire Size: AWG20–AWG28 (0.5–0.08 mm²)

Key Features

64 Digital Outputs: Supports extensive device control in compact form
Dual MIL Connectors: Ensures secure and organized signal wiring
High-Density Design: Optimized for space-constrained installations
Dedicated Signal Mapping: Clear pin assignments for outputs and commons
Industrial Reliability: Built for continuous operation in demanding conditions
No Pressure Clamp Support: Uses MIL-C-83503 compliant connectors only
Cable Compatibility: Supports AWG20 to AWG28 crimped wires
