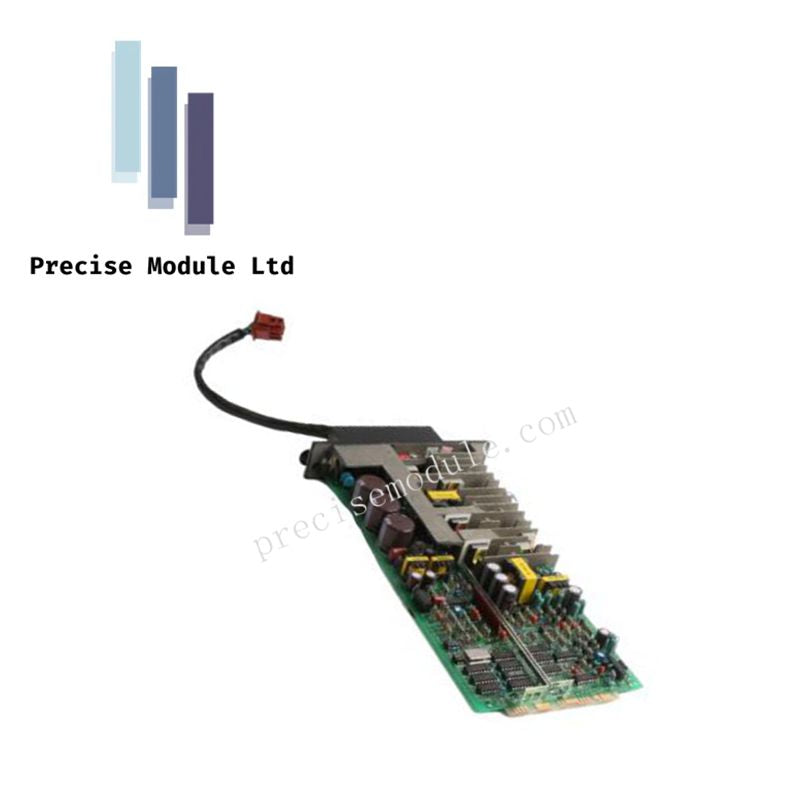

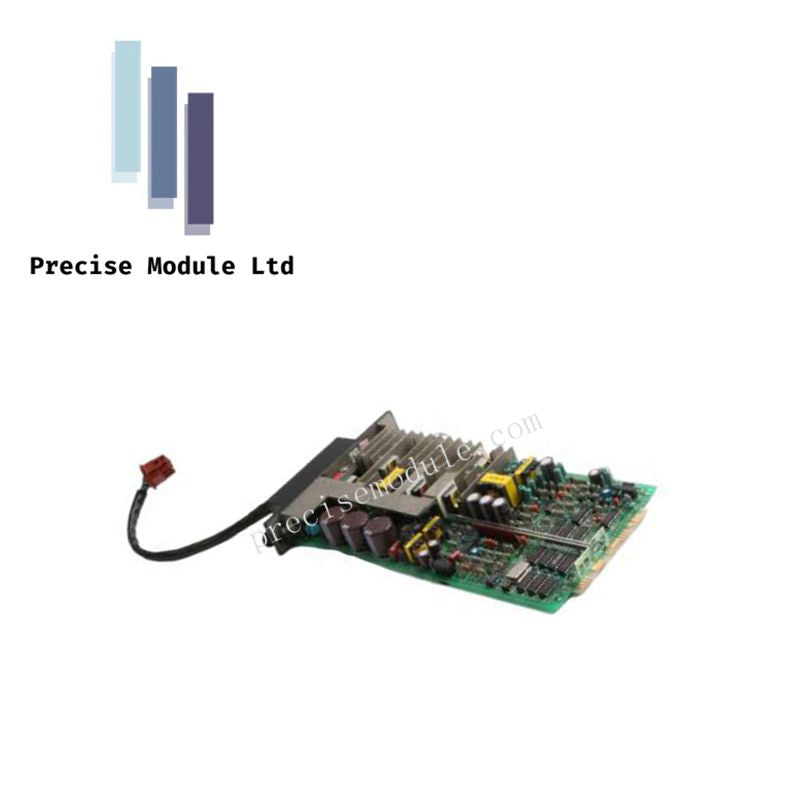

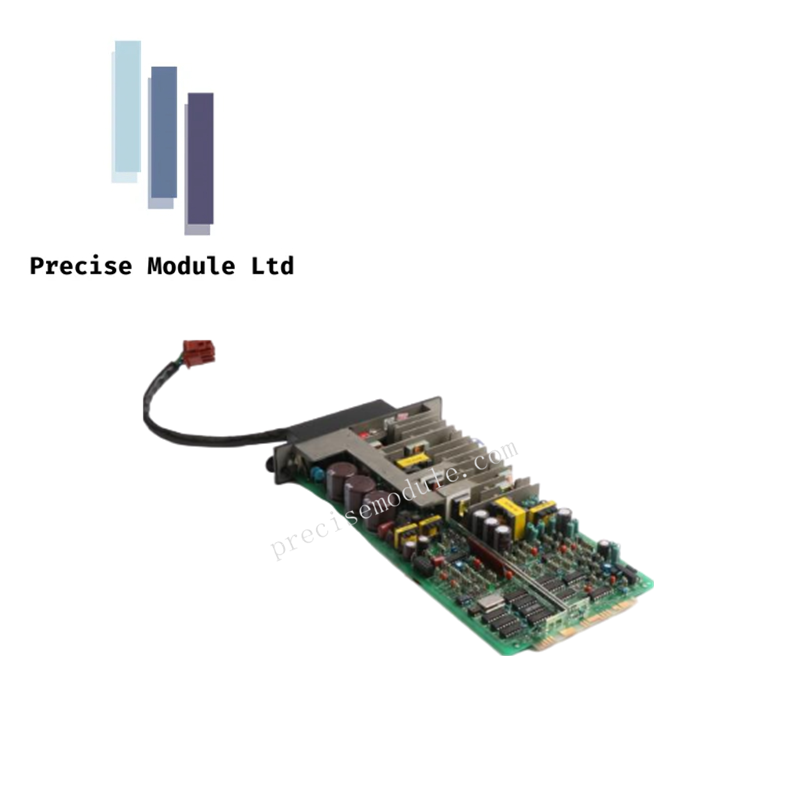

ThePS35*A power supply module from Yokogawa delivers stable 24V DC output for industrial control systems. It ensures efficient power conversion and integrates multiple protection mechanisms to safeguard equipment.
Specifications
Model: PS35*A
Manufacturer: Yokogawa
Type: Power Supply Module
Input Voltage: 85–264 V AC (47–63 Hz)
Output Voltage: 24 V DC (±1%)
Output Current: 3.5 A continuous
Efficiency: 88% typical at full load
Ripple Noise: Less than 150 mVp-p
Operating Temperature: -25°C to +70°C
Storage Temperature: -40°C to +85°C
Protection Features:
Overcurrent: 110–150% of rated current
Overvoltage: 28–32 V DC
Short-circuit protection
Isolation Voltage: 3000 V AC between input and output
MTBF: 500,000 hours at 25°C
Dimensions: 41 mm × 124 mm × 117 mm (W × H × D)
Weight: 0.5 kg
Features
Stable Output: Maintains consistent 24V DC for sensitive control systems
High Efficiency: Converts power with minimal loss under full load conditions
Comprehensive Protection: Prevents damage from overcurrent, overvoltage, and short circuits
Wide Input Range: Accepts global AC voltage standards for flexible deployment
Compact Design: Fits easily into control panels with limited space
Long Service Life: High MTBF rating ensures dependable long-term operation
Industrial Grade: Withstands extreme temperatures and harsh environments
