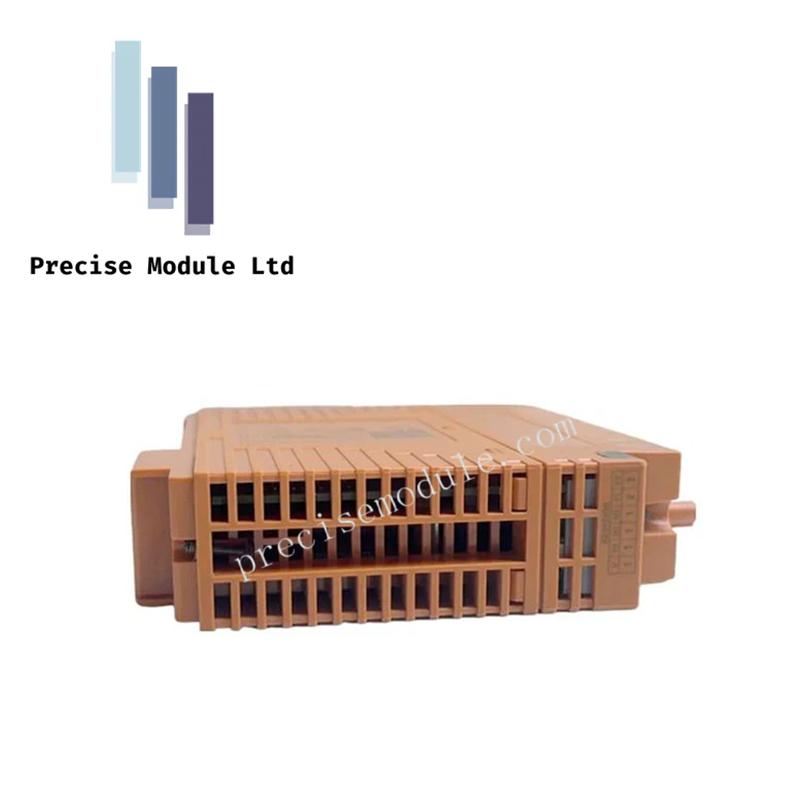

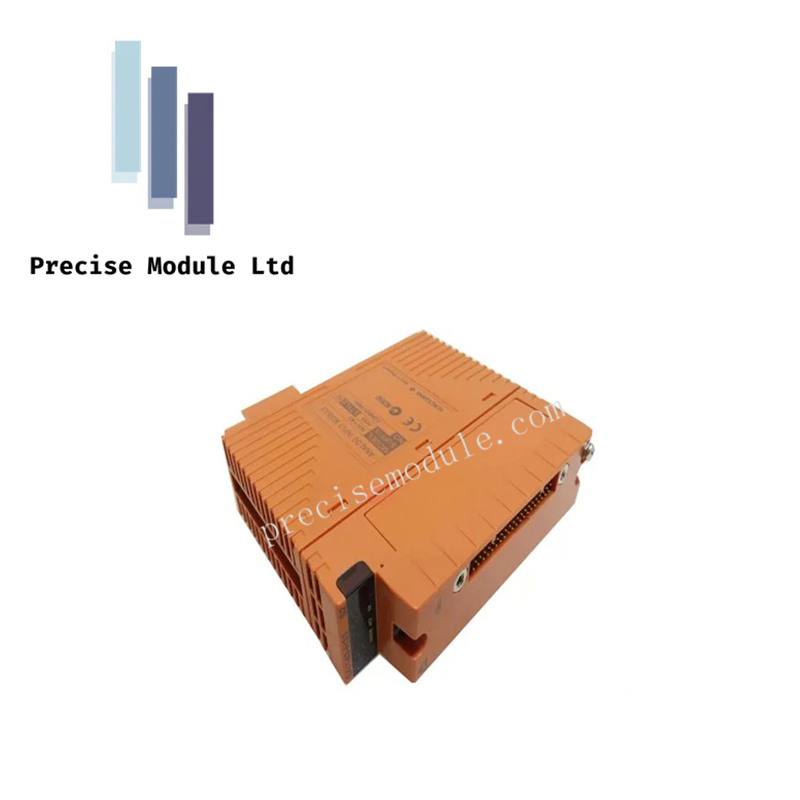

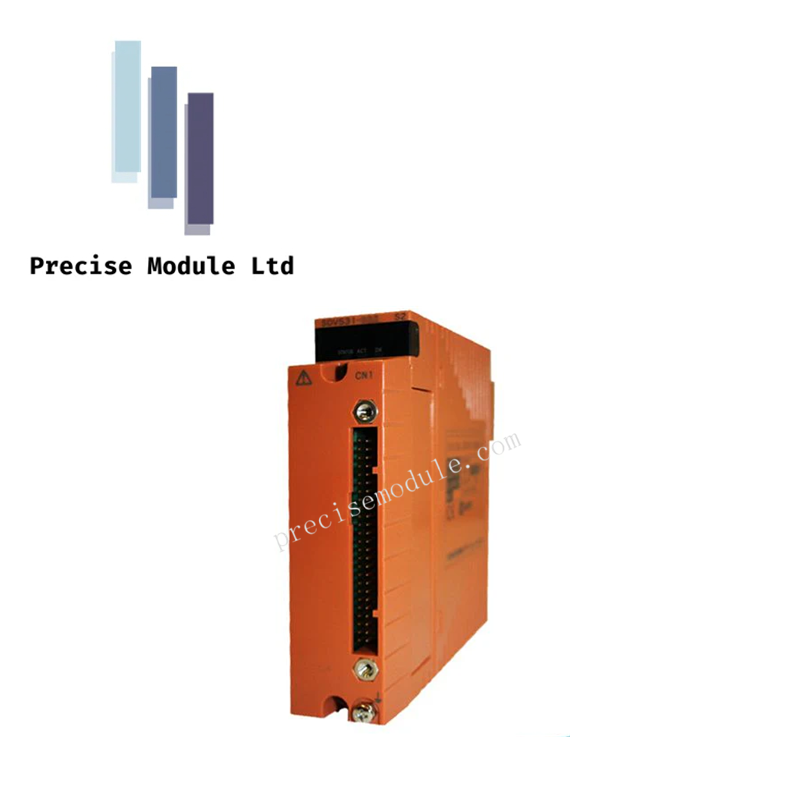

Yokogawa SDV531-L63 Digital Output Module

Description

The SDV531-L63 digital output module from Yokogawa is engineered for precise current source output in industrial control applications. It supports eight output channels and operates reliably across wide temperature ranges.

Specifications

• Model: SDV531-L63

• Manufacturer: Yokogawa Electric Corporation

• Number of Outputs: 8 channels

• Output Voltage: 24 V DC

• Output Voltage Drop: 1 V maximum

• External Power Supply: 24 V DC, 5 A minimum

• Current Capacity: 5 A total

• Maximum Leak Current: 1.6 mA

• Output Format: Current source

• Maximum Load Current: 0.6 A per output line (total 4.8 A)

• Minimum Load Current: 35 mA

• Load Resistance Range: 40 to 685Ω

• Output Response Time: 30 ms maximum

• Withstand Voltage: 2 kV AC between output signal lines and system for 1 minute

• Operating Temperature: -20°C to +70°C

• Weight: 0.3 kg

Features

• Eight-Channel Output: Supports multiple control points for flexible automation.

• Stable Voltage Supply: Maintains consistent 24V DC output with minimal voltage drop.

• High Load Capacity: Handles up to 0.6 A per channel for demanding applications.

• Wide Resistance Range: Operates effectively across varied load conditions.

• Leakage Protection: Limits maximum leak current to 1.6 mA for safety.

• Fast Response Time: Delivers output signals within 30 milliseconds.

• Robust Isolation: Withstands 2 kV AC to protect system integrity.

• Extended Temperature Range: Performs reliably from -20°C to 70°C in harsh environments.

• Lightweight Design: Weighs only 0.3 kg for easy installation and handling.
